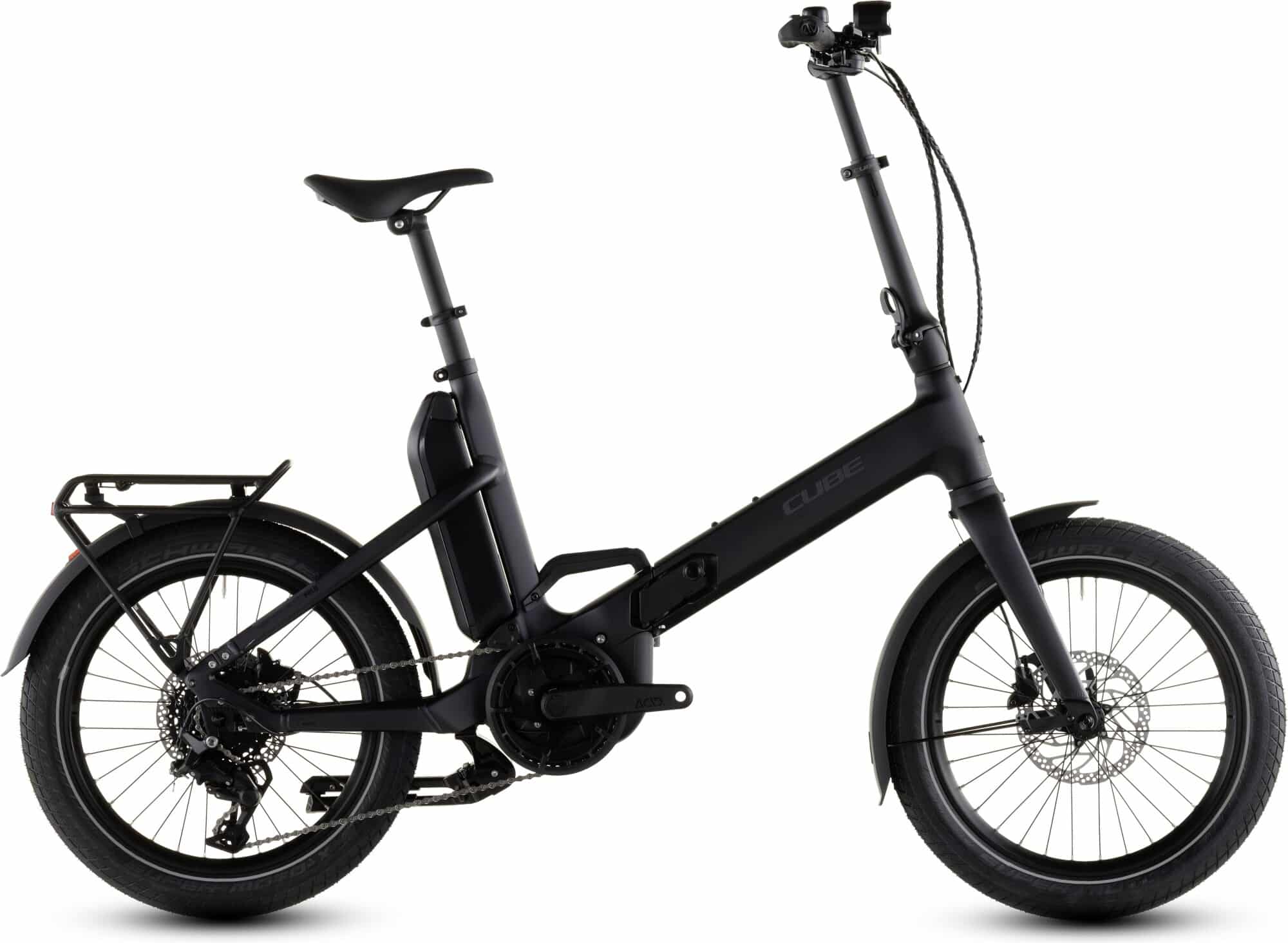

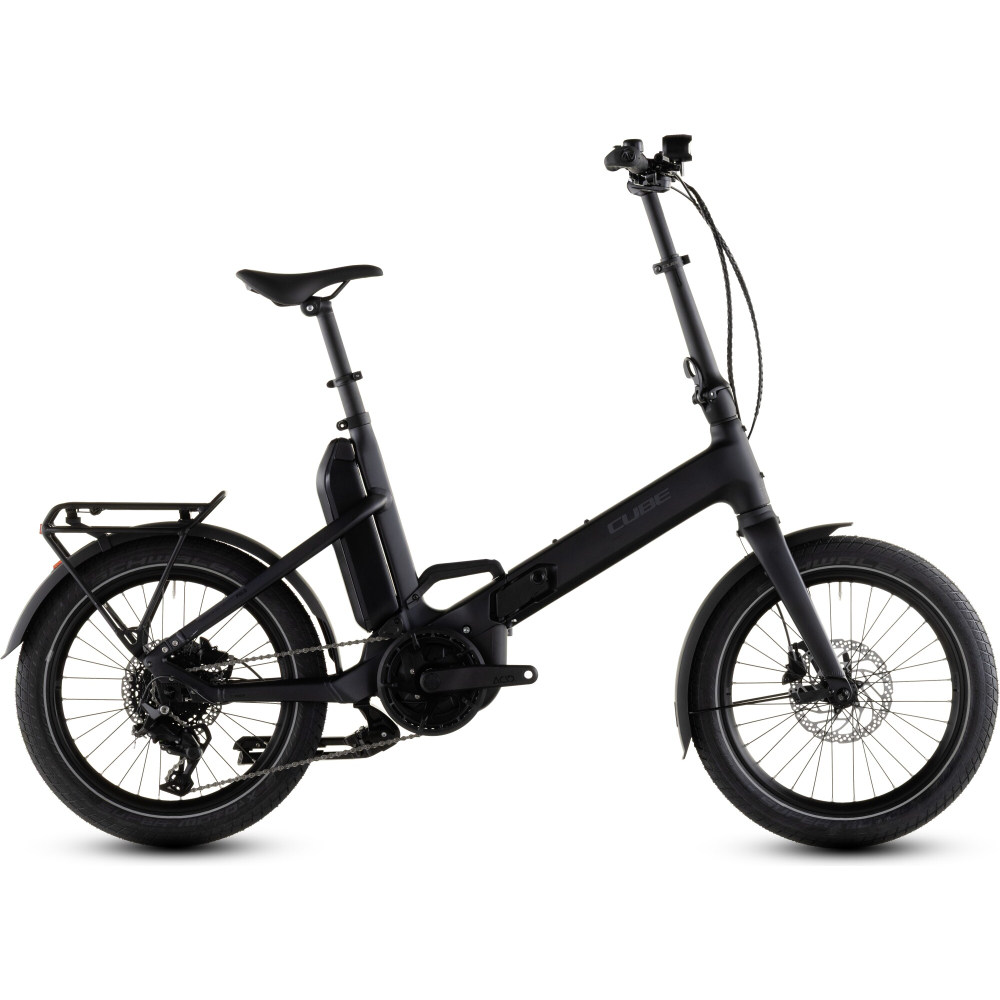

Cube Fold Hybrid 545 coal'n'reflex 2026
2.609,10 €
-10%
2.899,00 €
incl. VAT
free shipping*
Our foldable Fold Hybrid with Bosch drive sets new standards in terms of flexibility, mobility and functionality - and because form follows function, it also looks brilliant. Thanks to a clever folding mechanism and integrated carrying handle, the bike can be folded to space-saving dimensions and stowed or transported efficiently and easily. The 545 Wh battery behind the seat tube does not get in the way when pedalling or loading - and the Bosch Smart System provides essential information that can also be accessed from a smartphone via the eBike Flow app. Adjustment options on the saddle and handlebars allow the bike to be adapted to almost all body sizes. It goes without saying that we have also thought of mudguards, a super-stable kickstand and a robust luggage rack - a front luggage rack can even be retrofitted as an option. Bags and baskets are quickly attached to the bike in a few simple steps thanks to innovative mechanisms. Has there ever been a life without this bike?
Akku type
545 Wh - Bosch PowerPack 545
Motor type

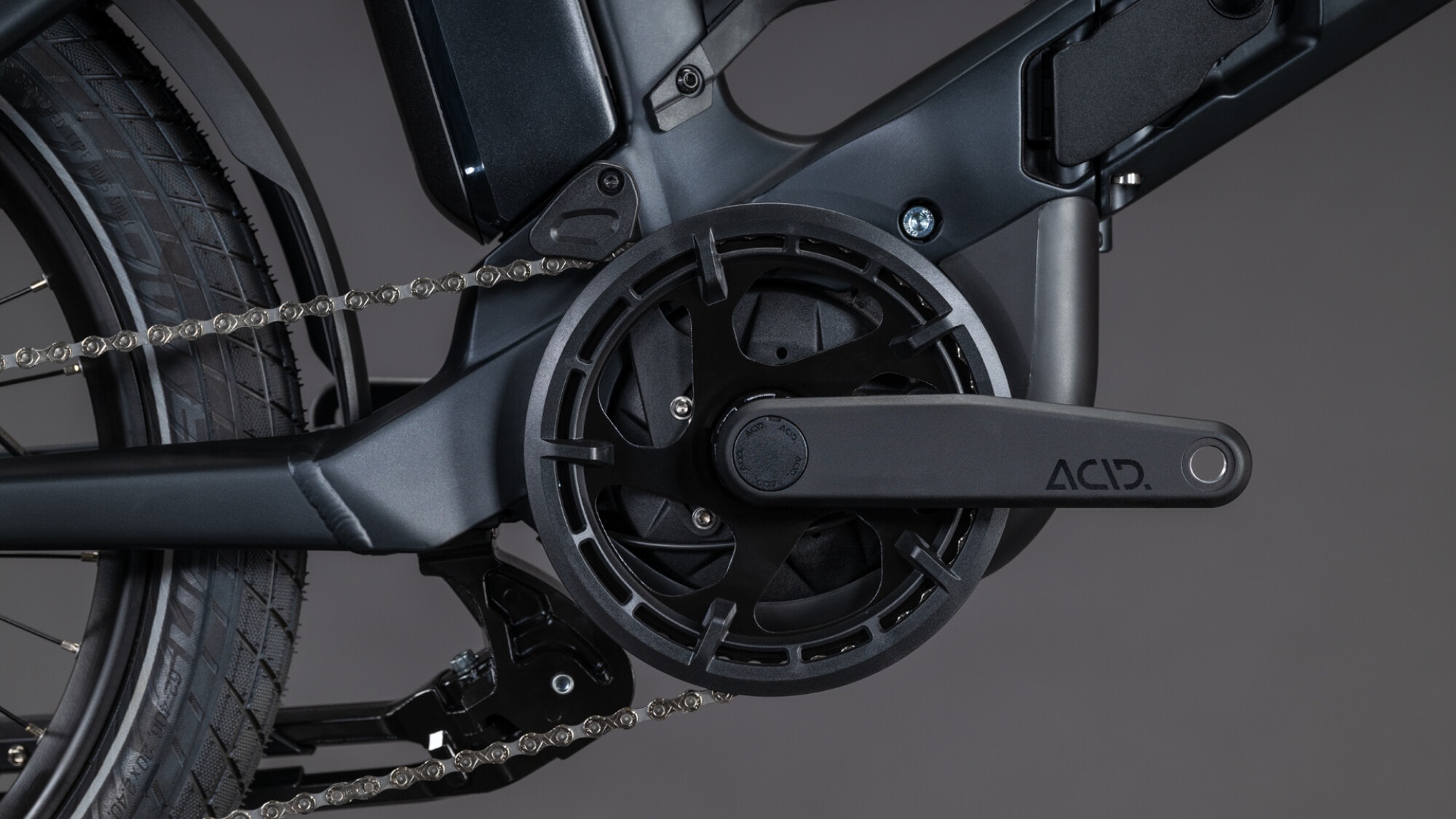

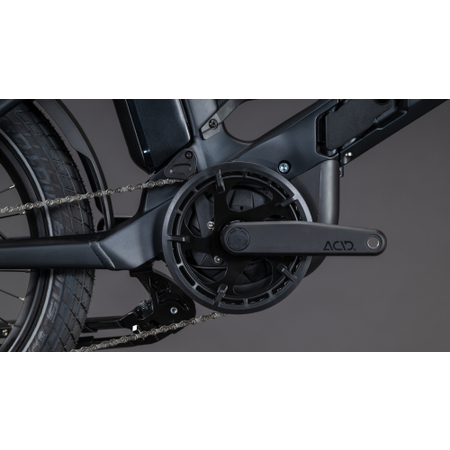

Bosch Drive Unit Performance Line 75Nm (BDU34)
Display
Bosch Purion 200 with Integrated Display
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Display | Bosch Purion 200 with Integrated Display |
| Akku | 545 Wh |
| Akku type | Bosch PowerPack 545 |
| Charger | Bosch 2A |
Gears
| Rear derailleur | Shimano Cues RD-U4010, 9-Speed |
| Cassette | Shimano CS-LG300, 11-36T |
| Shifter | Shimano Cues SL-U4010- Rapidfire-Plus |
Brakes
| Brake system | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Cockpit & Seating
| Stem | Cube Folding Stem, Adjustable Length, 25,4mm Clamp |

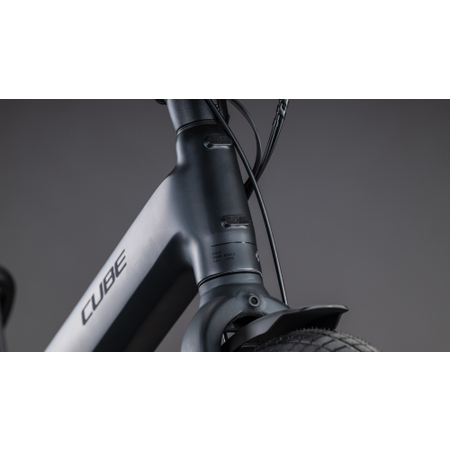

| Headset | ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Handlebar | CUBE Comfort Trail Bar, 680mm, 25.4mm |
| Handles | ACID Travel Comfort |
| Seatpost | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
| Saddle | ACID Sequence 160 |
Other Specs

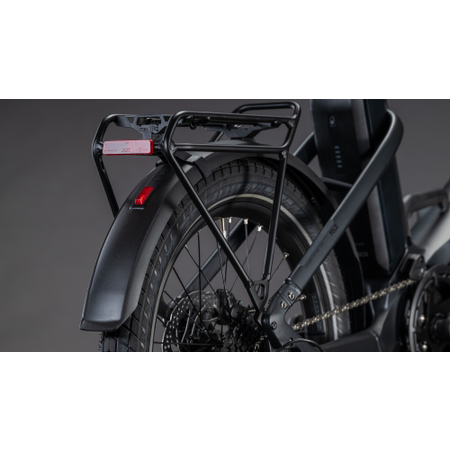

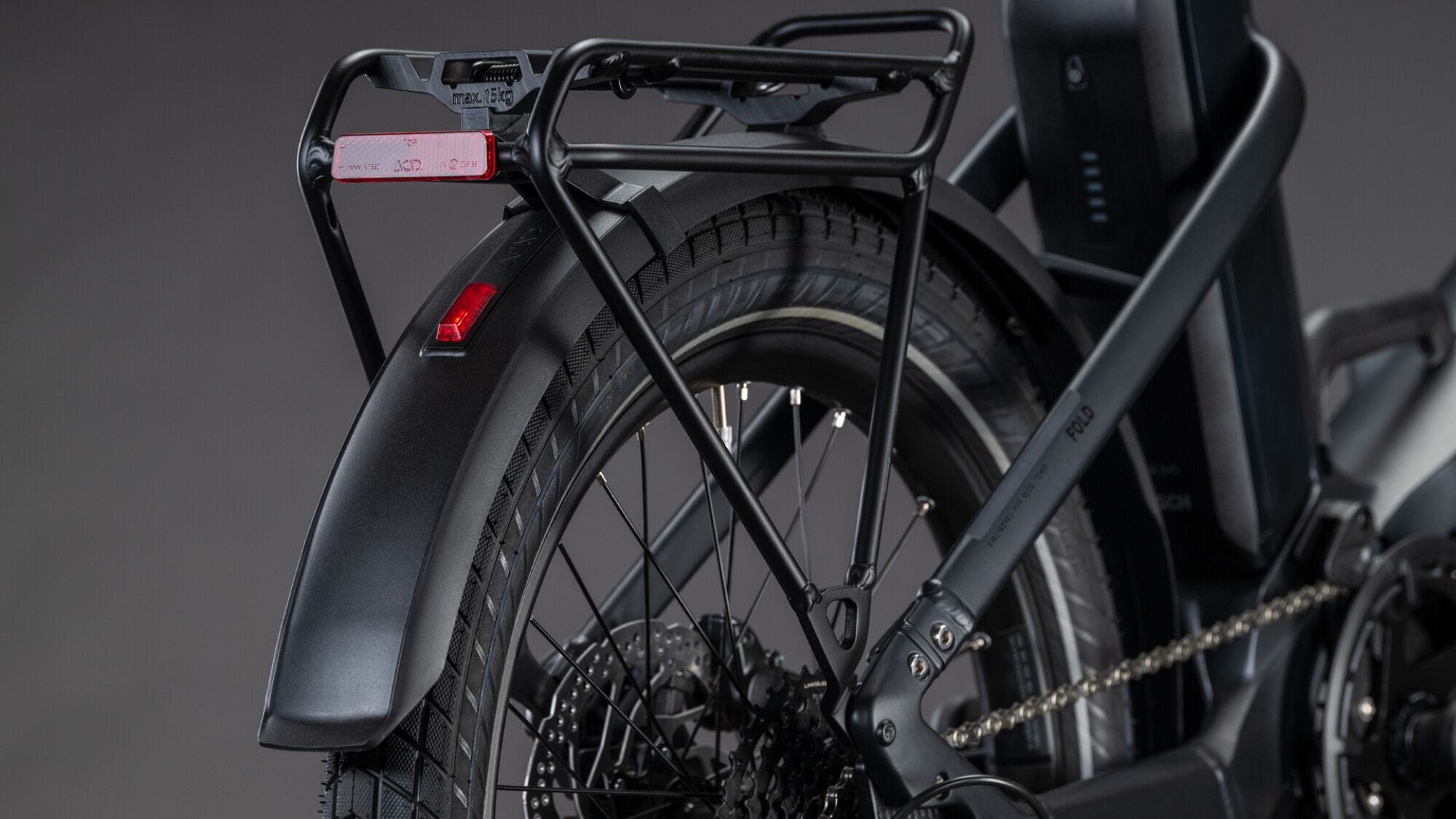

| Luggage carrier | ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| Stand | Two Leg Kickstand |
| Front light | ACID Front Light PRO-E 60 X-Connect, 12V, DC |
| Rear light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Bell | Easy Bell |
| Mudguards | ACID 75, BB-Mount |
Frame

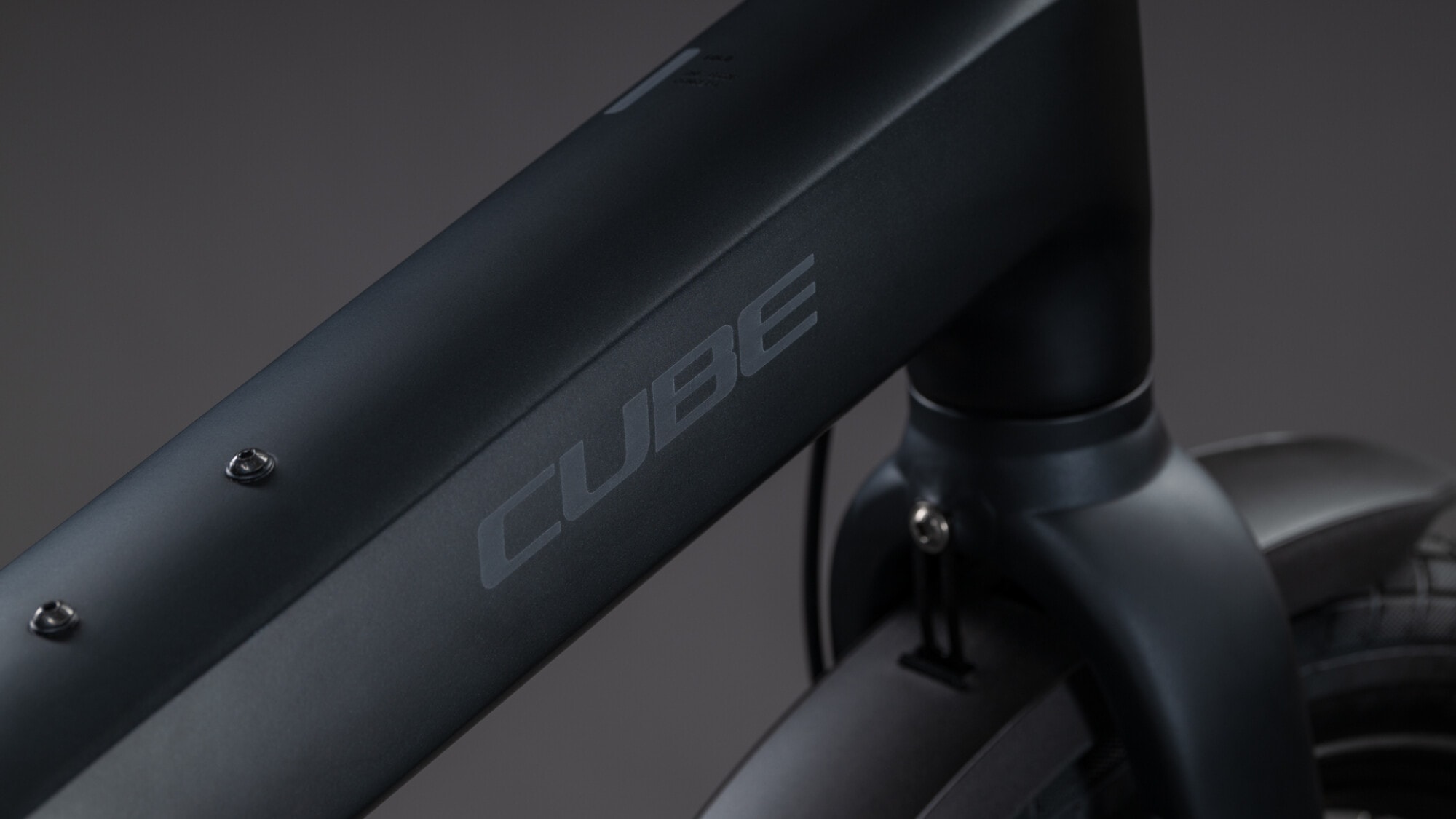

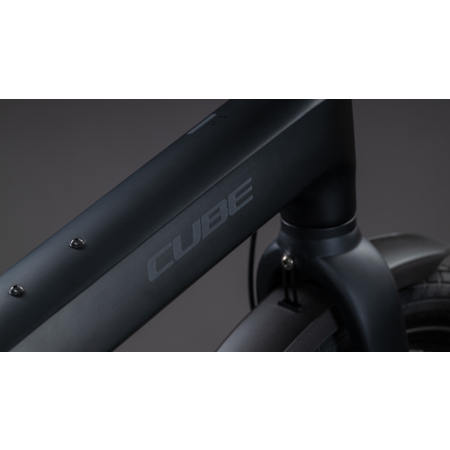

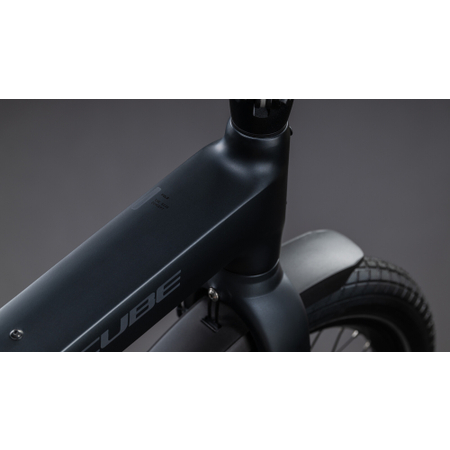

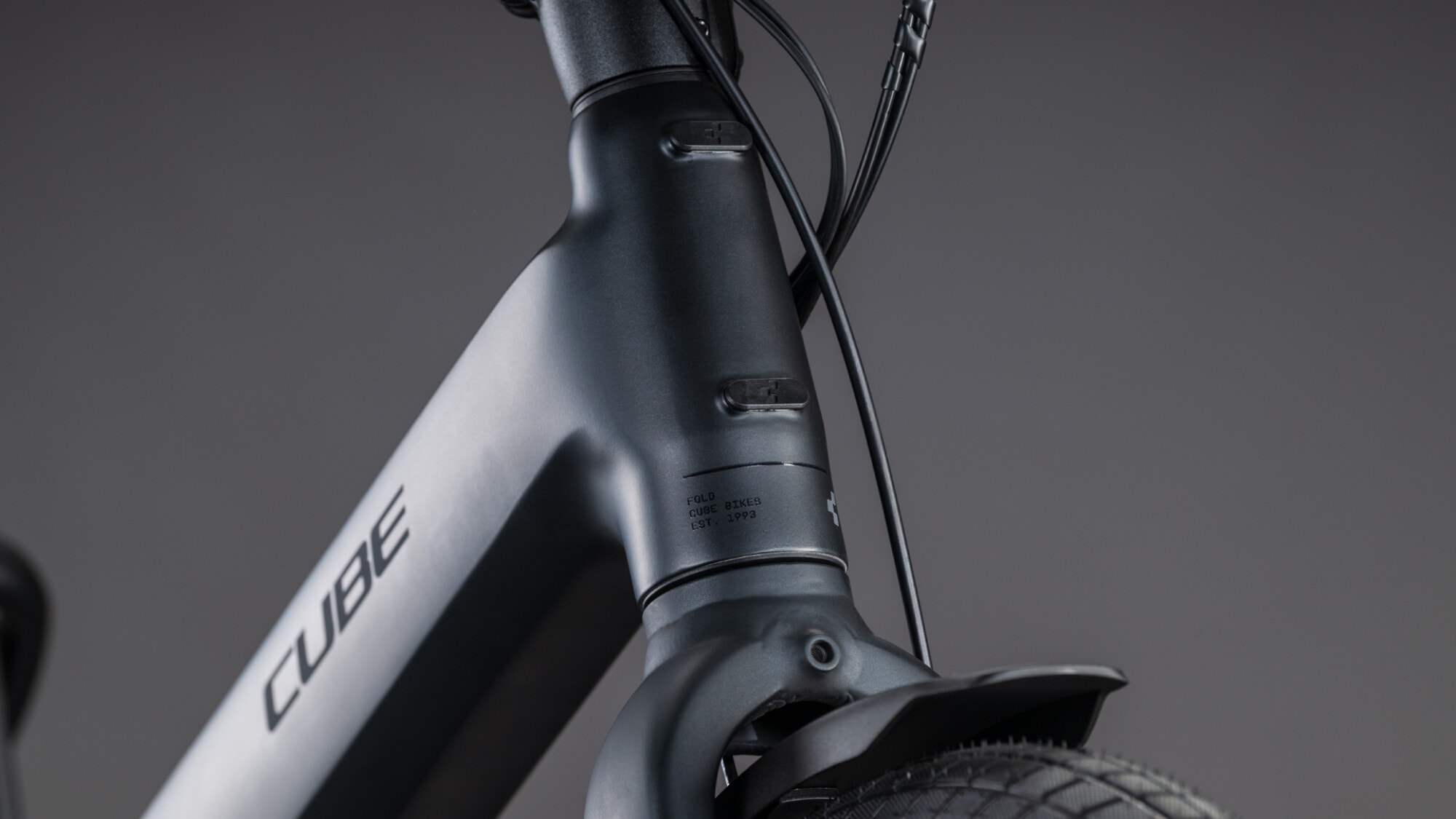

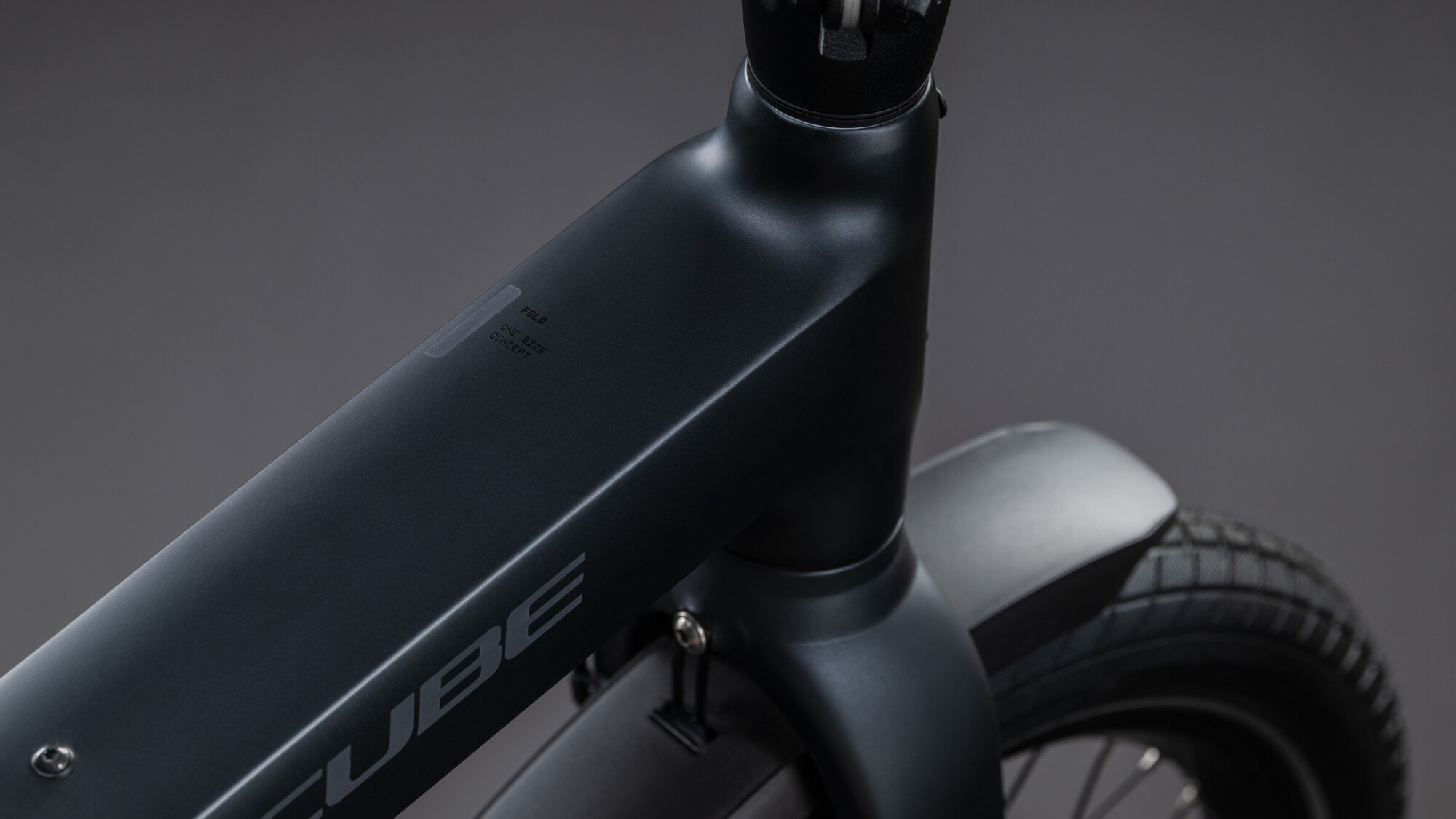

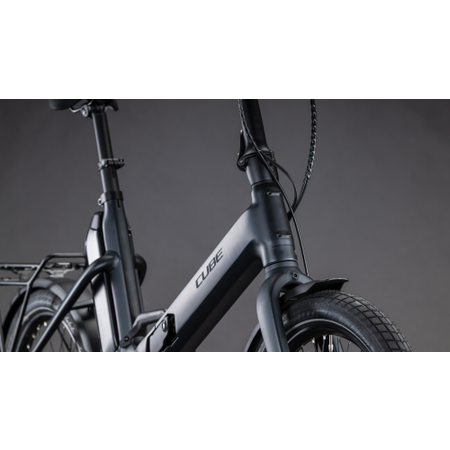

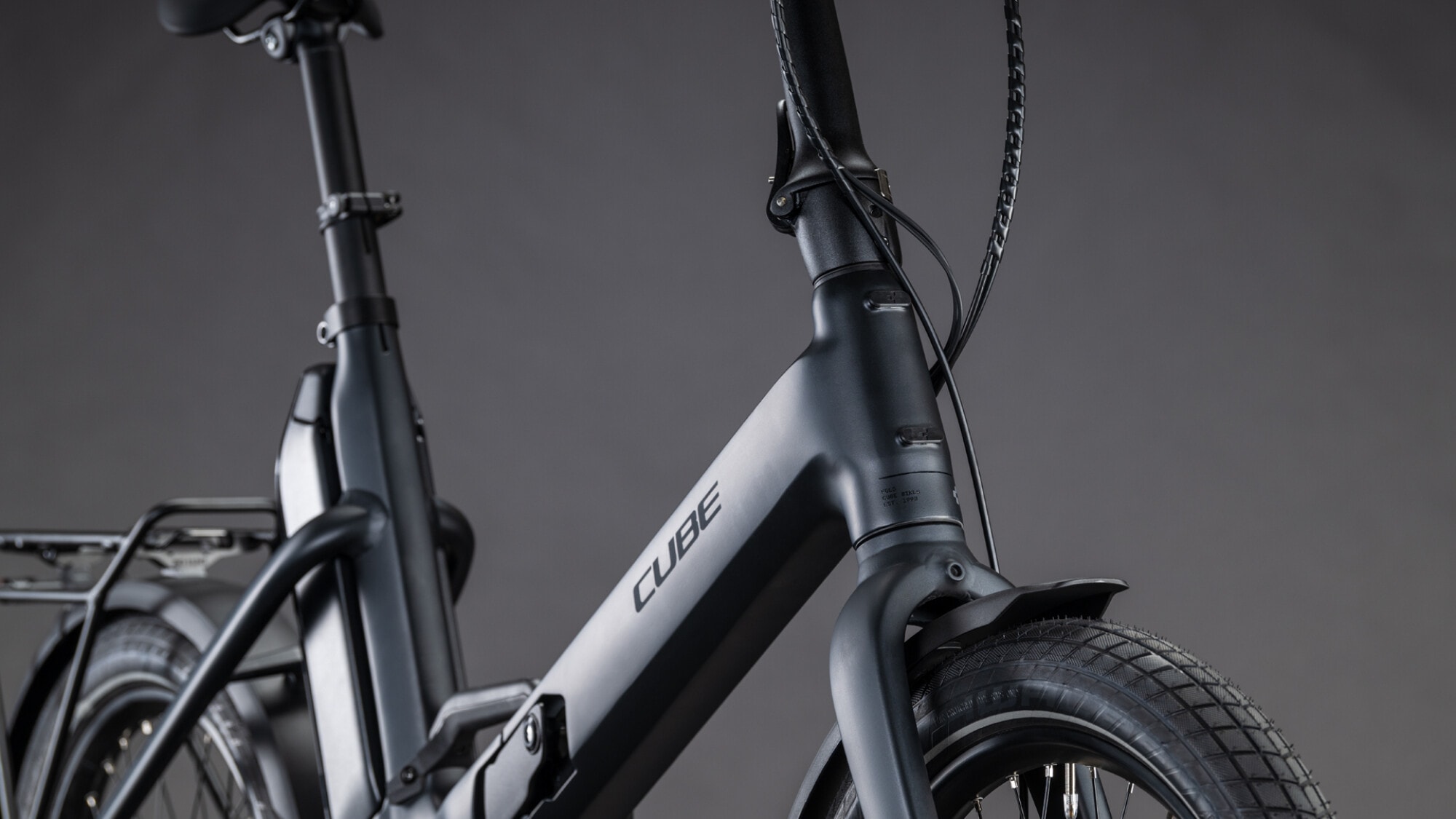

| Frame | Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar |
| Frame-Material | Aluminium |
| Frame size | 44 |
| Wheel-Size | 20" |
| Fork | Aluminium Rigid Fork, 20" |
| Frametype | Falt-Rahmen |
Drive Unit
| Crank | ACID Trekking Hybrid, 42T |
| Chain | KMC eGlide |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Front hub | Shimano HB-QC300, QR, Centerlock |
| Rear hub | Shimano FH-QC300-HM, QR, Centerlock |
| Set of tires | Schwalbe Super Moto-X, Double Defense, 62-406 |
| Wheelset | ACID EX30, 32H, Disc, Tubeless Ready |
Other
| Pedals | Folding Pedal, Aluminium |
| Model year | 2026 |
| Color | Schwarz |
| Weight | 25,3 kg |
| Permissible total weight | 142 |
| EBikeKategorie | E-Trekking-Bikes |
| Gender | Unisex |
