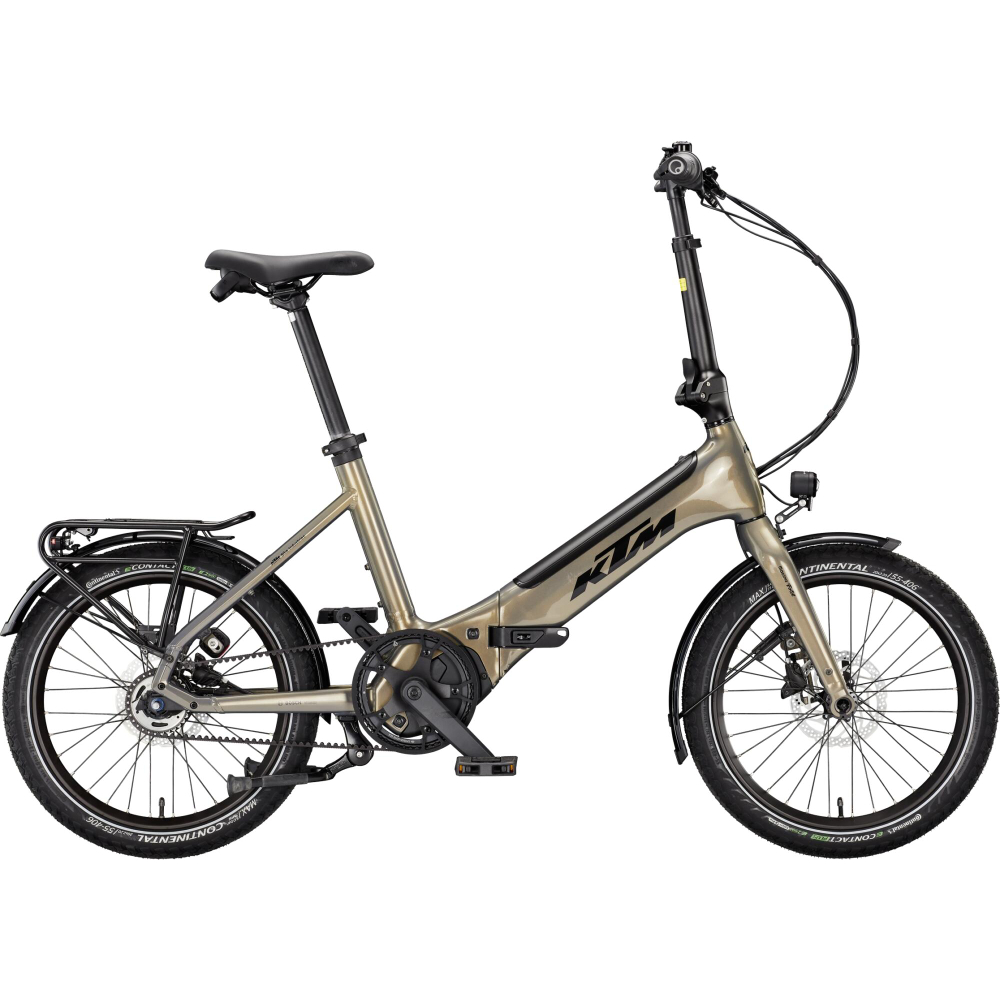

KTM Macina Fold 20 olive pearl 2026
3.689,10 €
-10%
4.099,00 €
incl. VAT
free shipping*
RIDE. FOLD. REPEAT. The new MACINA FOLD combines innovative drive, clear design and maximum flexibility - now with a newly developed frame. The bike can be completely folded in just a few simple steps - ideal for campers, commuters or anyone who wants to save space when travelling. Whether in a camper van, car boot or train - your bike is always with you and ready to go. At its heart is the new Bosch Performance Line PX motor: powerful, quiet and efficient - with an impressive 90 Nm of torque, up to 700 watts of peak power and a support factor of up to 400 %. In combination with the Bosch PowerTube battery (500 Wh), the low-maintenance belt drive and the SHIMANO NEXUS hub gears, every ride on the FOLD is a comfortable, carefree experience. Compact, strong, uncomplicated - the MACINA FOLD brings freedom to every corner of your life.
Akku type
500 Wh - Bosch PowerTUBE 500Wh horizontal - ABUS integrated lock IT3 (X-Plus key)
Motor type
Bosch PERFORMANCE PX BDU3470
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE PX BDU3470 |
| Akku | 500 Wh |
| Akku type | Bosch PowerTUBE 500Wh horizontal - ABUS integrated lock IT3 (X-Plus key) |
| Charger | Bosch STANDARD Charger 4A |
Gears
| Cassette | Gates rear-sprocket 30T |
| Shifter | Shimano Nexus 5 Revoshifter |
Brakes
| Brake system | Shimano MT200 / MT200 2-Piston | Shimano RT30 CL 160 |
Cockpit & Seating
| Stem | KTM Banzei 12° folding |
| Headset | KTM Banzei 1.1/8" |
| Handlebar | KTM Banzei 25.4 560mm |
| Handles | Ergon GP1 short |
| Seatpost | KTM Banzai 34/400 |
| Saddle clamp | Alloy Seat Post clamp Banzei |
| Saddle | Selle Royal Orbis |
Other Specs
| Luggage carrier | KTM Banzei snap-it 2.0/monkeyload|rack clip |
| Stand | Atran Velo Zweibein-Mittelständer |
| Front light | Litemove SEC-110 110Lux down |
| Rear light | AXA Juno |
| Mudguards | SKS B60 CAB City 20" |
Frame
| Frame | Macina Fold 20" Alloy 6061/T6300 |
| Frame-Material | Aluminium |
| Frame size | 20 |
| Wheel-Size | 20" |
| Fork | Macina Fold 20" Alloy |
| Frametype | Tiefeinstieg |
Drive Unit
| Crank | left: KTM E-COMP2 ISIS 160mm Q8 - right: KTM E-COMP2 ISIS 160mm Q8 |
| Chain | Gates drive-belt 118T CDX |
| Rims | Ryde DISC30 32H 406x30TC |
| Front hub | Shimano Deore M6000 CL 32H 100-5QR |
| Rear hub | Shimano Nexus 5 Disc CL 32H 135-10 |
| Set of tires | Continental E-Contact Plus 55-406 Reflex |
| Front tire | Continental E-Contact Plus 55-406 Reflex |
| Rear tire | Continental E-Contact Plus 55-406 Reflex |
| Spokes | front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black |
Other
| Pedals | Ergotec EP-F folding pedal |
| Model year | 2026 |
| Color | Grün |
| Weight | 24,50 |
| Permissible total weight | 125 kg |
| EBikeKategorie | E-Trekking-Bikes |
| Gender | Unisex |
