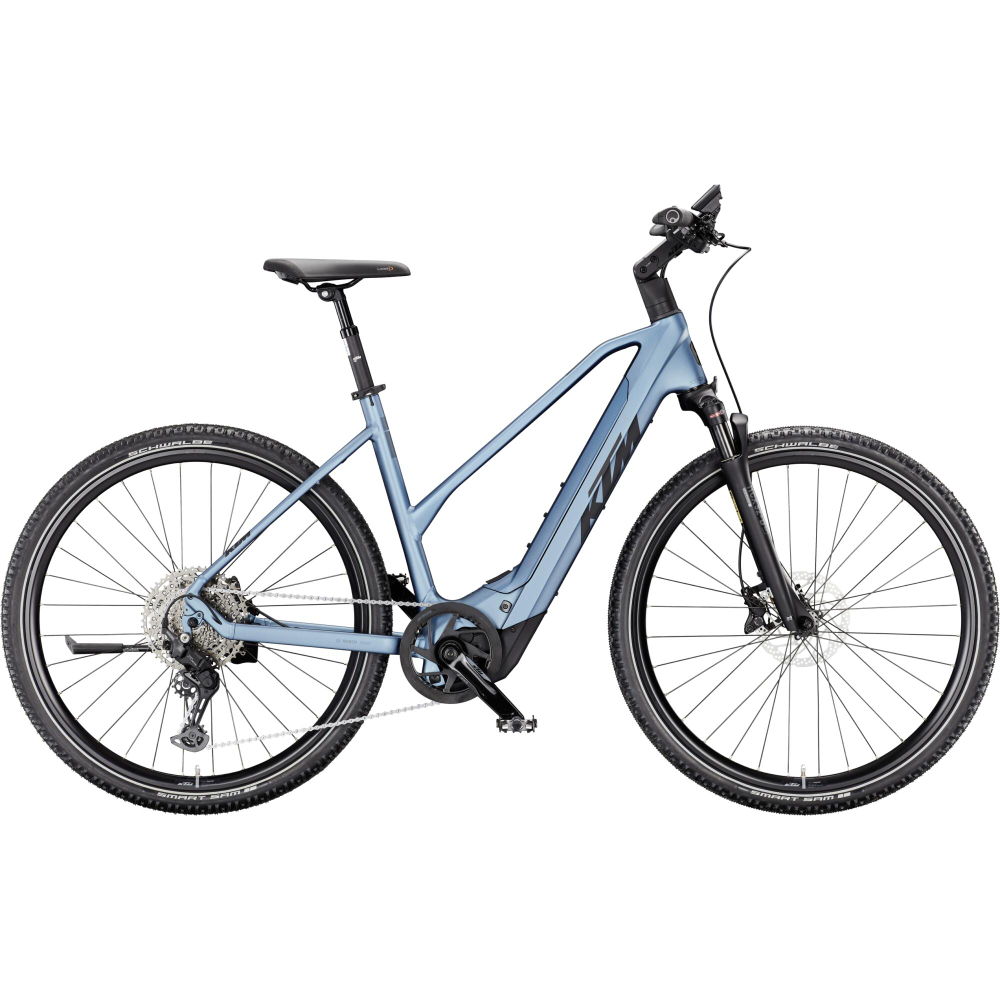

KTM Macina Cross CX 810 D steel blue 2026
3.599,10 €
-10%
3.999,00 €
incl. VAT
free shipping*
ONE FOR ALL. The MACINA CROSS is a real all-rounder with its wide range of possible uses! This bike is perfect for extended bike tours, rides on forest and gravel paths, as well as for adventure trips. The upright riding position offers enough comfort to be able to explore and enjoy the surroundings and nature in a relaxed manner. The CROSS LFC (LIGHT-FENDER-CARRIER) models offer all-weather suitability with full equipment out of the box. The Bosch Performance Line CX (BDU384Y) takes riding dynamics and agility to a new level. Powerful, light and dynamic (100 Nm max. torque/ 750 watt max. motor power/ 400% max. support factor). The Power Tube battery offers a capacity of 800 Wh. Here too, KTM relies on the proven POWER TUBE TOP LOADER (PTTL) concept. PPTL is the KTM-developed battery removal from the top of the down tube. This makes removing and reinserting the battery child's play.
Akku type
800 Wh - Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Motor type
Bosch PERFORMANCE CX BDU3840 max. 120 Nm
Display
Bosch KIOX 300 TFT Display
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE CX BDU3840 max. 120 Nm |
| Display | Bosch KIOX 300 TFT Display |
| Akku | 800 Wh |
| Akku type | Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key) |
| Charger | Bosch STANDARD Charger 4A |
Gears
| Rear derailleur | Shimano CUES U6000-11/10 LG shadow+ |
| Cassette | Shimano LG400-11 / 11-50 |
| Shifter | Shimano CUES U6000-11 display |
Brakes
| Brake system | Shimano MT402 (3-F) / MT420 4-Piston |
Cockpit & Seating
| Stem | KTM Line adjust. 0-60° ICR |
| Headset | Acros AICR internal 1.5"-1.5" |
| Handlebar | KTM COMP low rizer 640mm |
| Handles | GRIP ERGON GP10 |
| Seatpost | KTM Line Elegance suspension 30.9/300 |
| Saddle clamp | KTM Line JD-SC99 - 34,9mm |
| Saddle | Selle Royal Lookin Athletic 3D |
Other Specs
| Stand | KTM 28" adjustable |
Frame
| Frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 |
| Frame-Material | Aluminium |
| Wheel-Size | 28" |
| Fork | Suntour NCX32-D Air LO 63mm 1 1/8 |
| Frametype | Trapez |
Suspension
| Front travel | 63mm |
Drive Unit
| Crank | left: KTM E-TEAM ISIS 170mm Q16 - right: KTM E-TEAM ISIS 170mm Q16 |
| Chain | KMC e11 Sport EPT e-bike |
| Front hub | Shimano Deore M5100 CL 32H 100-5QR |
| Rear hub | Shimano Deore M5100 CL 32H 135-5QR |
| Front tire | Schwalbe Smart Sam Perf. 47-622 Reflex |
| Rear tire | Schwalbe Smart Sam Perf. 47-622 Reflex |
| Spokes | front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black |
Other
| Pedals | MTB-Pedal VP-195E alloy |
| Model year | 2026 |
| Color | Blau |
| Weight | 24,7 kg |
| Permissible total weight | 143 kg |
| EBikeKategorie | E-Trekking-Bikes |
| Gender | Unisex |
