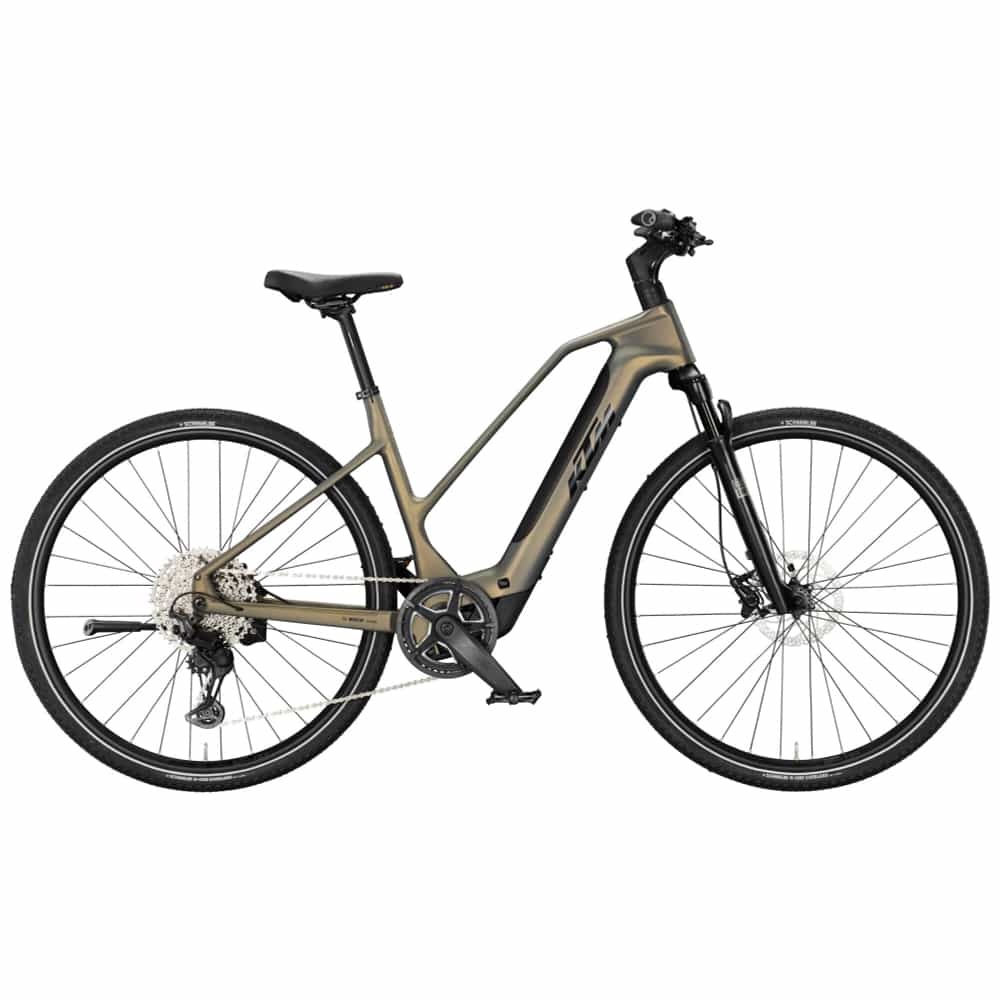

KTM Macina Cross SX Elite D, olive pearl matt
3.699,00 € incl. VAT free shipping*
The KTM Macina Cross SX Elite D is a lightweight e-bike featuring a carbon frame and a compact Bosch Performance SX motor. The integrated Bosch CompactTube battery provides a capacity of 400 Wh. The drive system is controlled via the Bosch Purion 200 display with control unit. An air-sprung RockShox Paragon Gold RL fork with 65 mm of travel enhances riding comfort on varied terrain. The Shimano drivetrain combines a CUES shifter with a Deore M7230 11-speed rear derailleur and a Linkglide cassette ranging from 11 to 50 teeth. Hydraulic Shimano dual-piston brakes provide stopping power.
The 45 mm-wide Schwalbe G-One Overland Eco tyres are suitable for use on tarmac and unpaved tracks. Ergon GS1 grips, a Selle Royal Vaia Gel saddle and the KTM Active ICR stem with a 20-degree angle round off the comfort-oriented spec. An adjustable Hebie kickstand is also already fitted.
Akku type
400 Wh - Bosch CompactTUBE 400Wh - ABUS integrated btry lock IT2 (T82 key)
Motor type
Bosch PERFORMANCE SX BDU3144 (BOSCH CPT-SX4P2)
Display
Bosch PURION 200 Display & Remote
Lightweight, compact and surprisingly powerful
The Bosch Performance Line SX was developed specifically for lightweight and sporty e-bikes. With high peak power, compact dimensions and a weight of only around 2 kg, it combines powerful assistance with an exceptionally natural and agile riding experience.
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE SX BDU3144 (BOSCH CPT-SX4P2) |
| Display | Bosch PURION 200 Display & Remote |
| Akku | 400 Wh |
| Akku type | Bosch CompactTUBE 400Wh - ABUS integrated btry lock IT2 (T82 key) |
| Charger | Bosch COMPACT Charger 2A |
Gears
| Rear derailleur | Shimano DEORE M7230-11 LG ShadowES |
| Cassette | Shimano LG700-11 / 11-50 LinkGLIDE |
| Shifter | Shimano CUES U6001-11 LG /Display |
Brakes
| Front brake | Shimano MT420-3A/MT410 2-Piston |
| Rear brake | Shimano MT420-3A/MT410 2-Piston |
Cockpit & Seating
| Stem | KTM Active ICR +20° |
| Headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| Handlebar | KTM TEAM II low rizer 640mm |
| Handles | ERGON GS1 |
| Seatpost | KTM TEAM II 27.2/350 |
| Saddle clamp | KTM TEAM Light CL-FJ21 - 31,8mm |
| Saddle | Selle Royal Vaia Gel |
Other Specs
| Stand | Hebie 28" adjustable |
Frame
| Frame | Macina Trekking PREMIUM CARBON|CPT400 Bosch SX BDU31/T4100 |
| Frame-Material | Carbon |
| Wheel-Size | 29" |
| Fork | RockShox PARAGON Gold RL Air 65mm |
| Frametype | Diamant |
Suspension
| Front travel | 65mm |
Drive Unit
| Crank | KTM E-TEAM2 ISIS 170mm Q8 |
| Chain | KMC eGLIDE LG |
| Rims | Black Jack Ready25 32H 622x25TC |
| Front hub | Shimano Deore M5100 CL 32H 100-5QR |
| Rear hub | Shimano TC500 CL 32H 142-12TA |
| Front tire | Schwalbe G-One Overland Eco 45-622 |
| Rear tire | Schwalbe G-One Overland Eco 45-622 |
| Spokes | Front: DT Champion 2.0 black - Rear: DT Alpine II 2.34 black |
Other
| Pedals | Cross-Pedal alloy Wellgo C324DU |
| Model year | 2027 |
| Color | Grün |
| Gender | Unisex |
Compact. Clear. Right on the handlebar.
The Bosch Purion 200 combines a color display and control unit in one compact device. Positioned directly within easy reach of your thumb, it keeps important riding data and e-bike controls comfortably at your fingertips.
