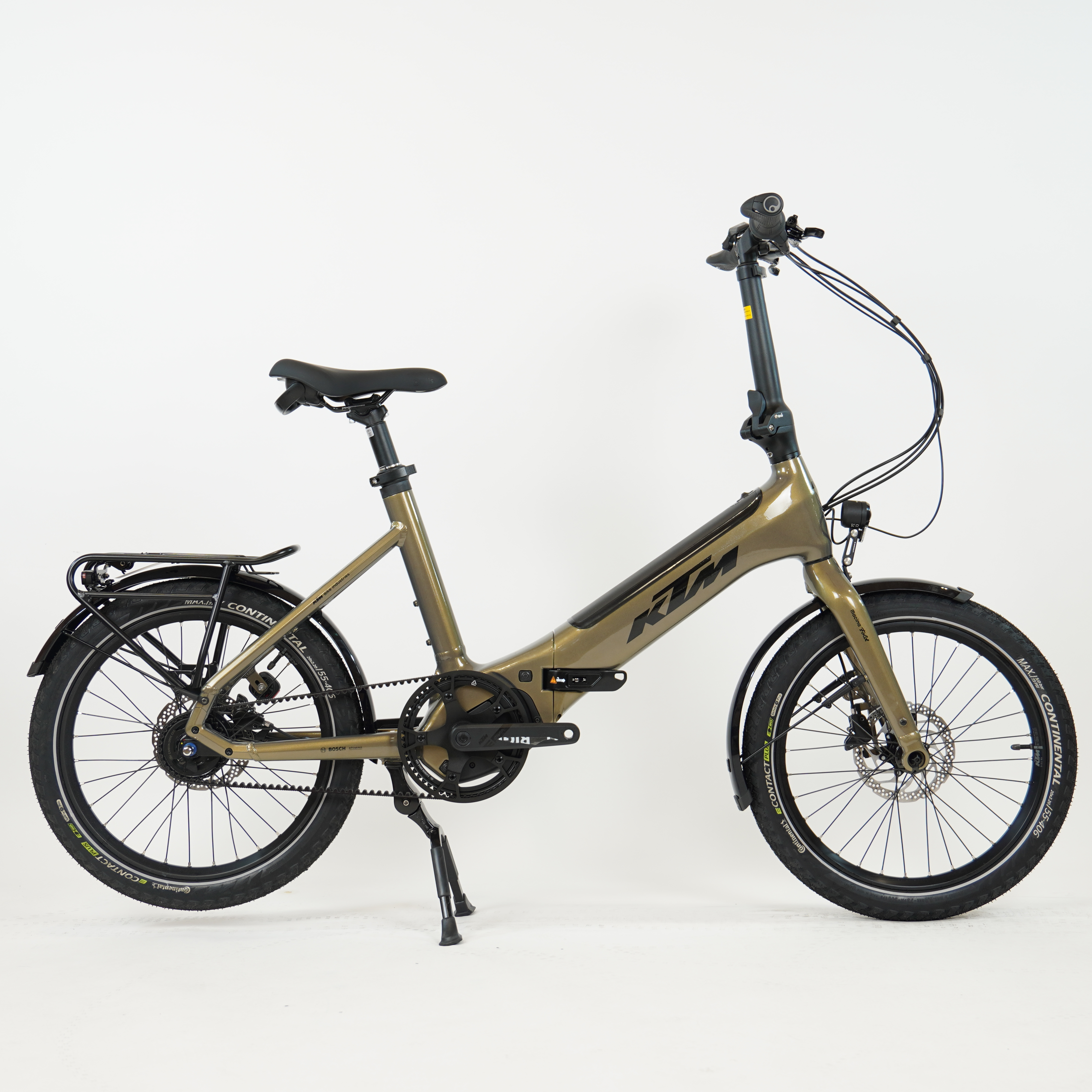

KTM Macina Fold 20 Olive Pearl 2026 Display Model
3.499,00 €
-15%
4.099,00 €
incl. VAT
free shipping*
This item is a display bike! The bike has been ridden for 23 km!
RIDE. FOLD. REPEAT. The new MACINA FOLD combines an innovative drive system, clean design and maximum flexibility – now with a newly developed frame. The bike can be folded away completely in just a few simple steps – ideal for campers, commuters or anyone looking to save space whilst on the move. Whether in a campervan, a car boot or on a train – your bike is always with you and ready to go. At its heart is the new Bosch Performance Line PX motor: powerful, quiet and efficient – with an impressive 90 Nm of torque, up to 700 watts of peak power and an assistance factor of up to 400 per cent. Combined with the Bosch PowerTube battery (500 Wh), the low-maintenance belt drive and the SHIMANO NEXUS hub gear system, every ride on the FOLD becomes a comfortable, worry-free experience. Compact, powerful, straightforward – the MACINA FOLD brings freedom to every aspect of your life.
Akku type
500 Wh - Bosch PowerTUBE 500Wh horizontal - ABUS integrated lock IT3 (X-Plus key)
Motor type
Bosch PERFORMANCE PX BDU3470
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE PX BDU3470 |
| Akku | 500 Wh |
| Akku type | Bosch PowerTUBE 500Wh horizontal - ABUS integrated lock IT3 (X-Plus key) |
| Charger | Bosch STANDARD Charger 4A |
Gears
| Cassette | Gates rear-sprocket 30T |
| Shifter | Shimano Nexus 5 Revoshifter |
Brakes

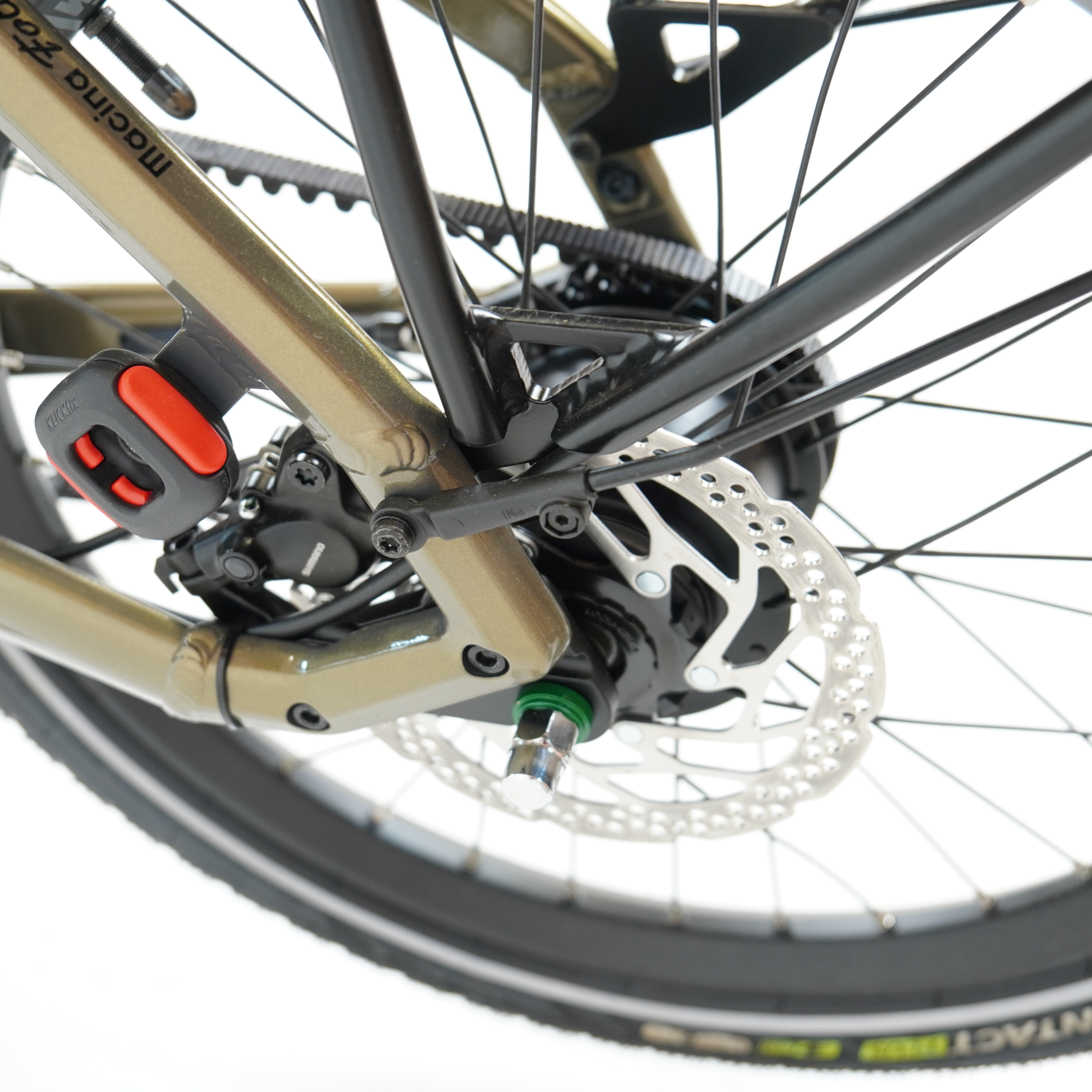

| Brake system | Shimano MT200 / MT200 2-Piston | Shimano RT30 CL 160 |

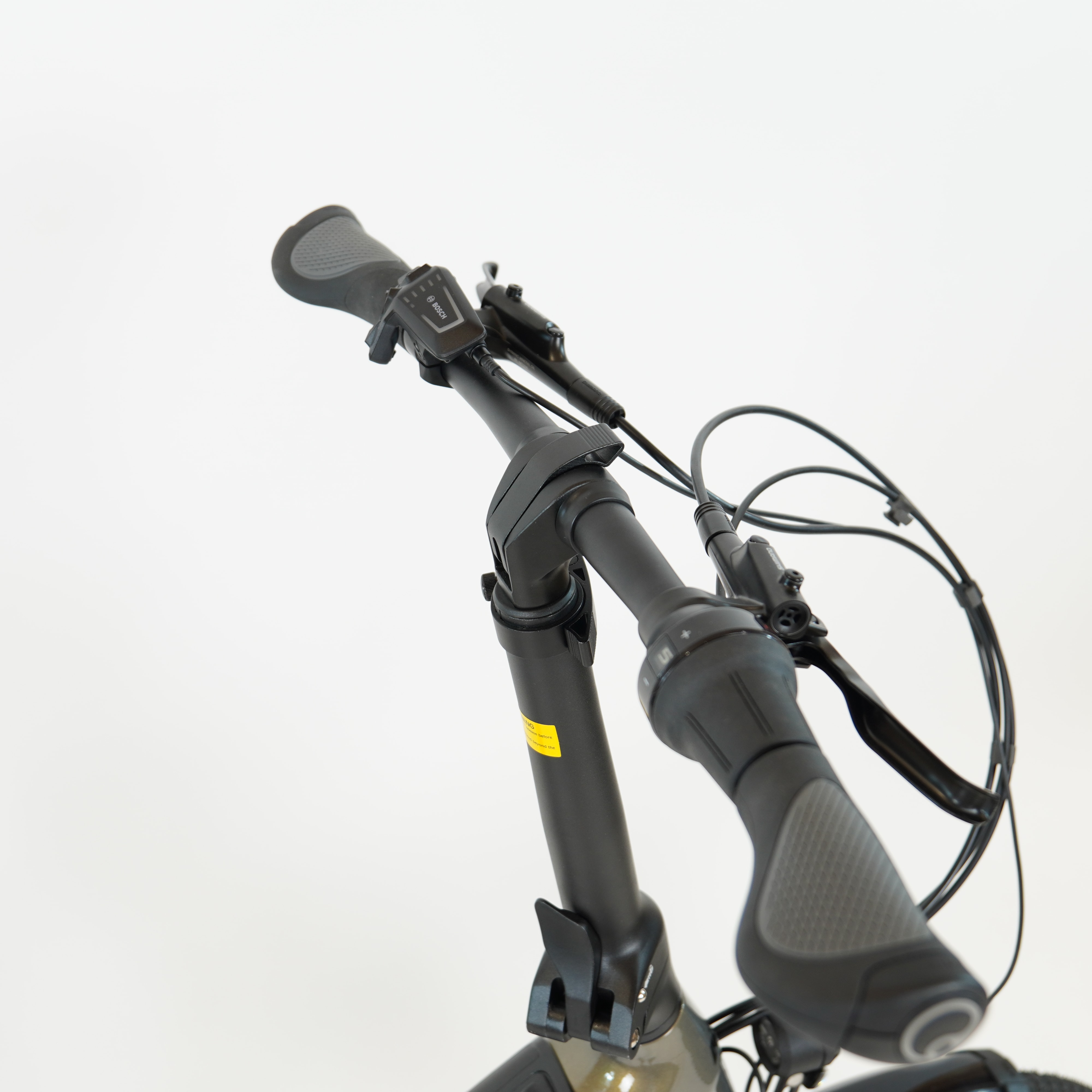

Cockpit & Seating

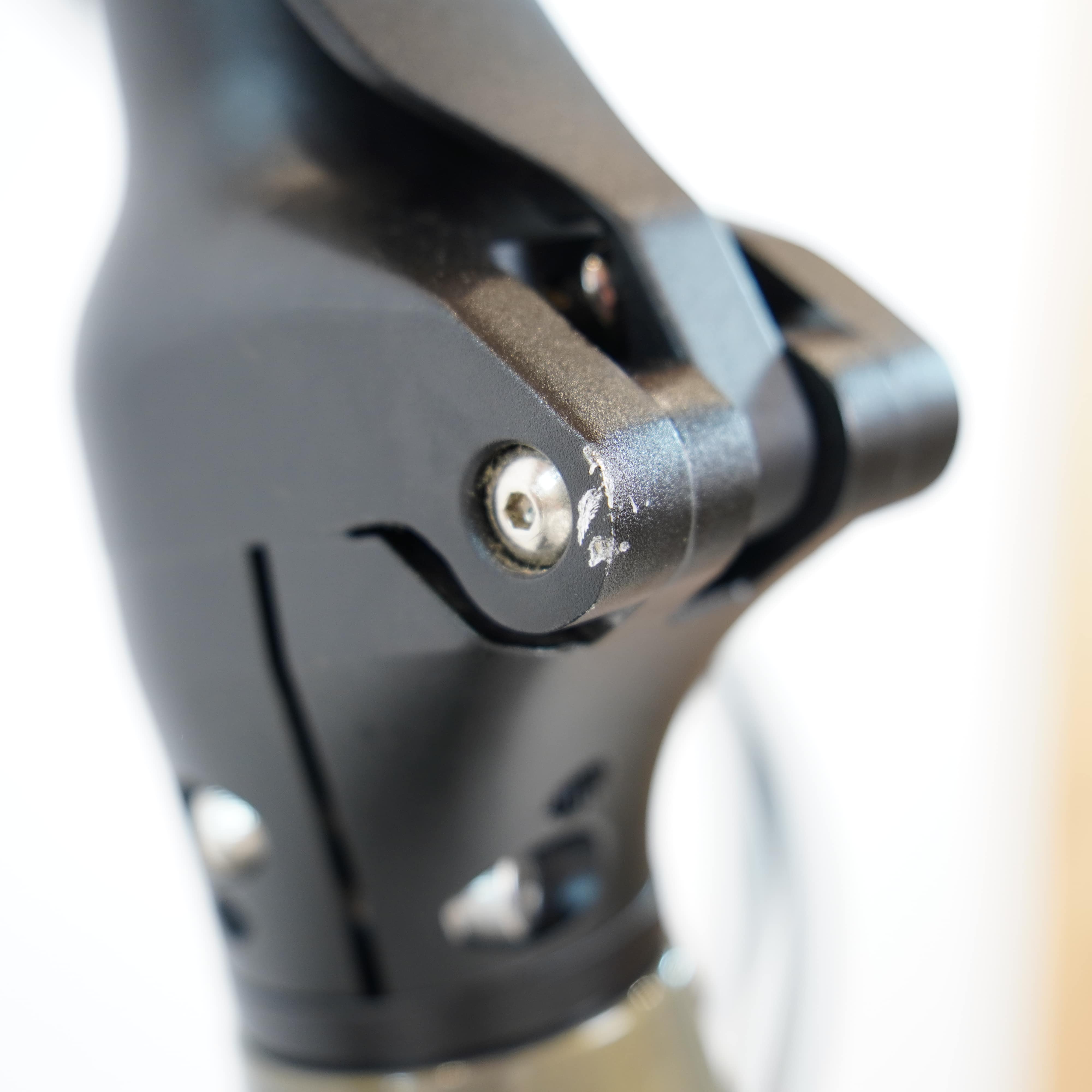

| Stem | KTM Banzei 12° folding |
| Headset | KTM Banzei 1.1/8" |
| Handlebar | KTM Banzei 25.4 560mm |
| Handles | Ergon GP1 short |
| Seatpost | KTM Banzai 34/400 |
| Saddle clamp | Alloy Seat Post clamp Banzei |

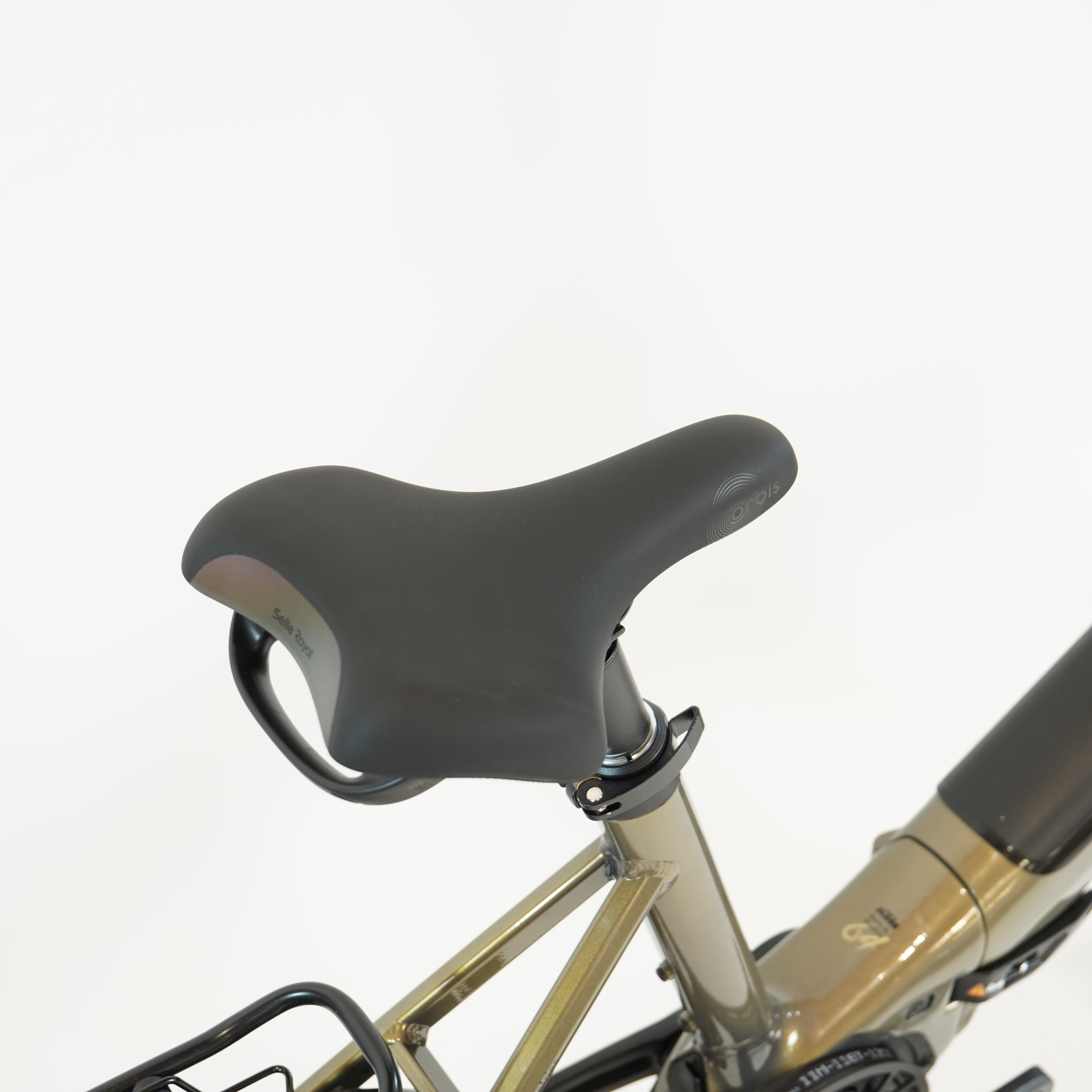

| Saddle | Selle Royal Orbis |
Other Specs

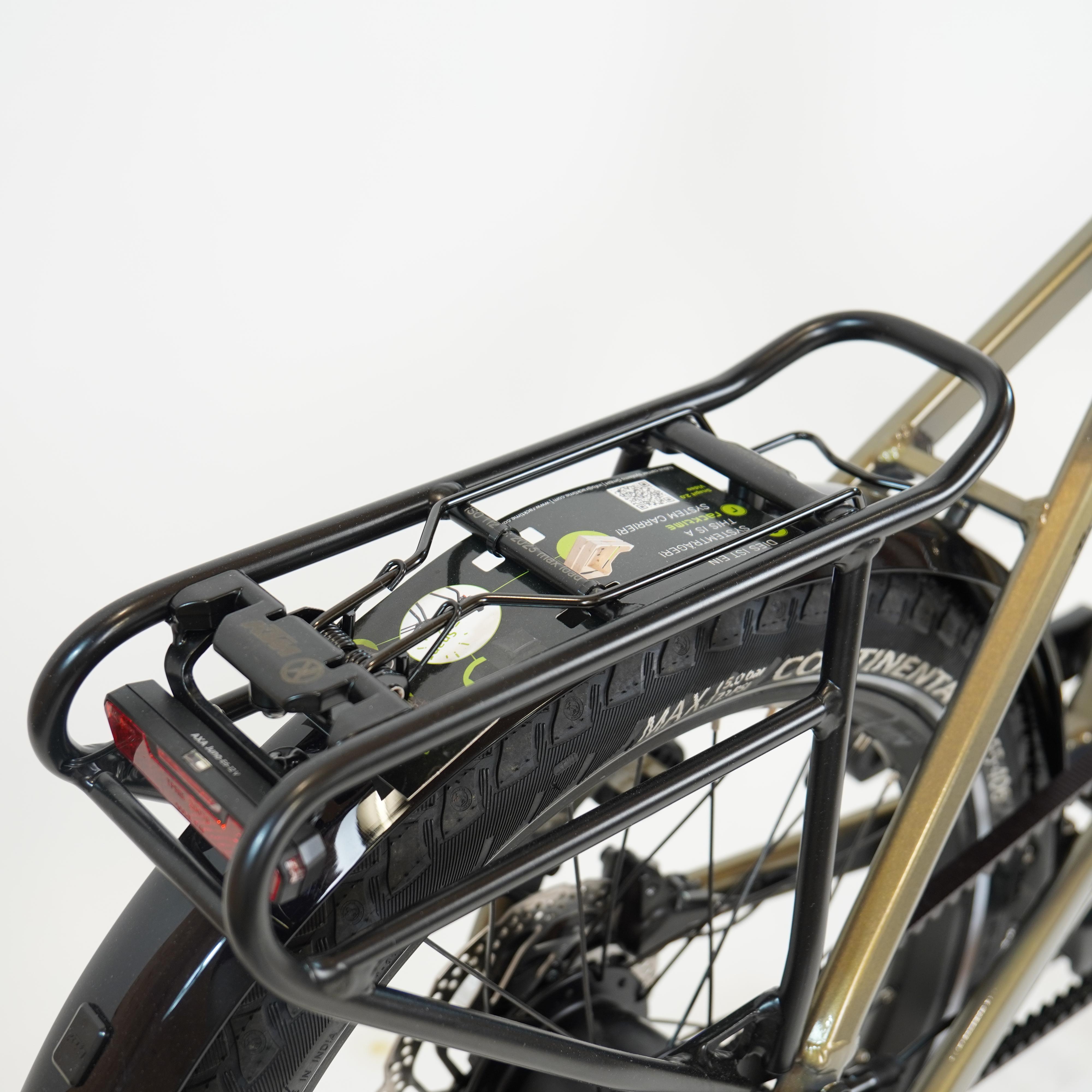

| Luggage carrier | KTM Banzei snap-it 2.0/monkeyload|rack clip |
| Stand | Atran Velo Zweibein-Mittelständer |
| Front light | Litemove SEC-110 110Lux down |
| Rear light | AXA Juno |
Frame
| Frame | Macina Fold 20" Alloy 6061/T6300 |
| Frame-Material | Aluminium |
| Frame size | 20 |
| Wheel-Size | 20" |
| Fork | Macina Fold 20" Alloy |
| Frametype | Tiefeinstieg |

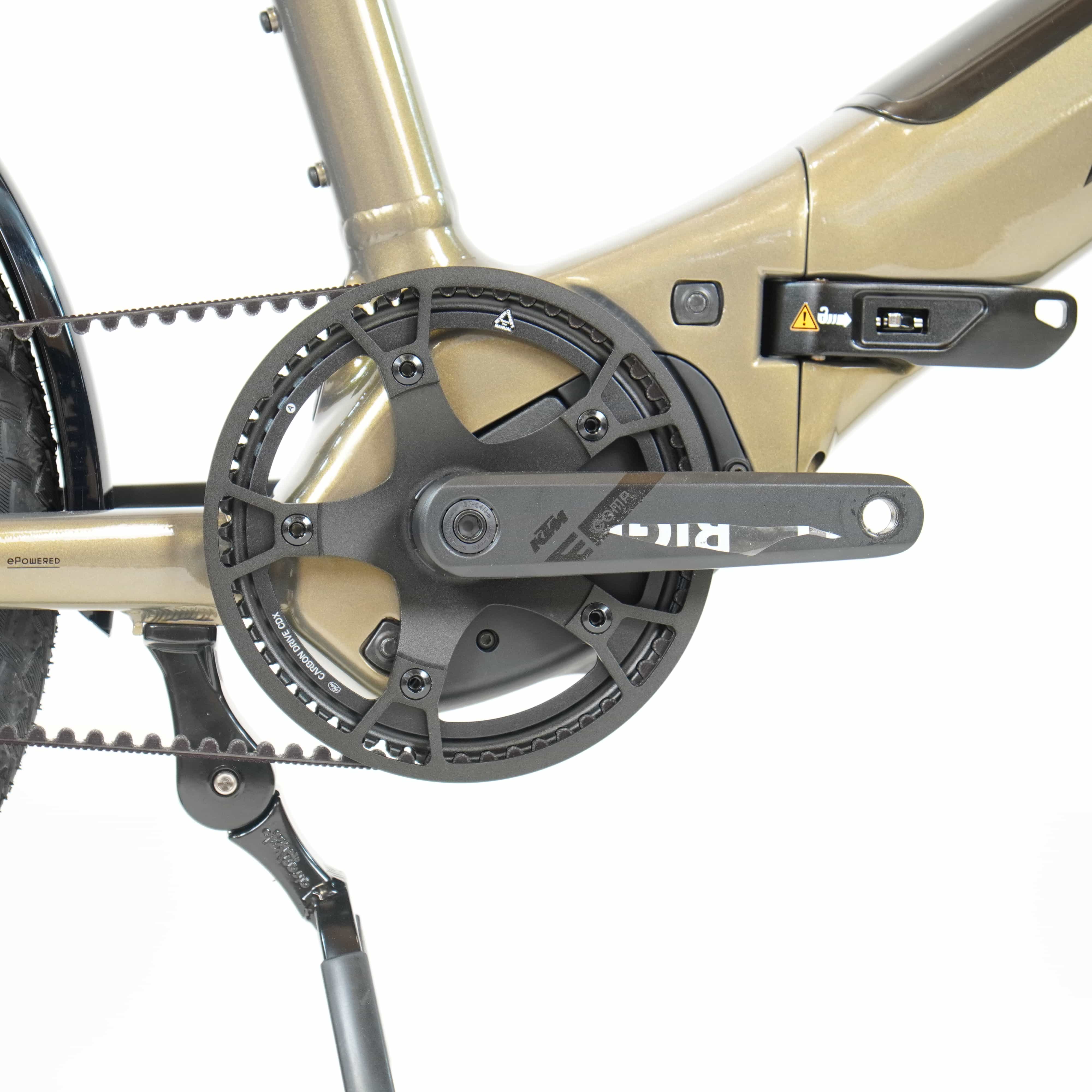

Drive Unit
| Crank | left: KTM E-COMP2 ISIS 160mm Q8 - right: KTM E-COMP2 ISIS 160mm Q8 |
| Chain | Gates drive-belt 118T CDX |
| Rims | Ryde DISC30 32H 406x30TC |
| Front hub | Shimano Deore M6000 CL 32H 100-5QR |

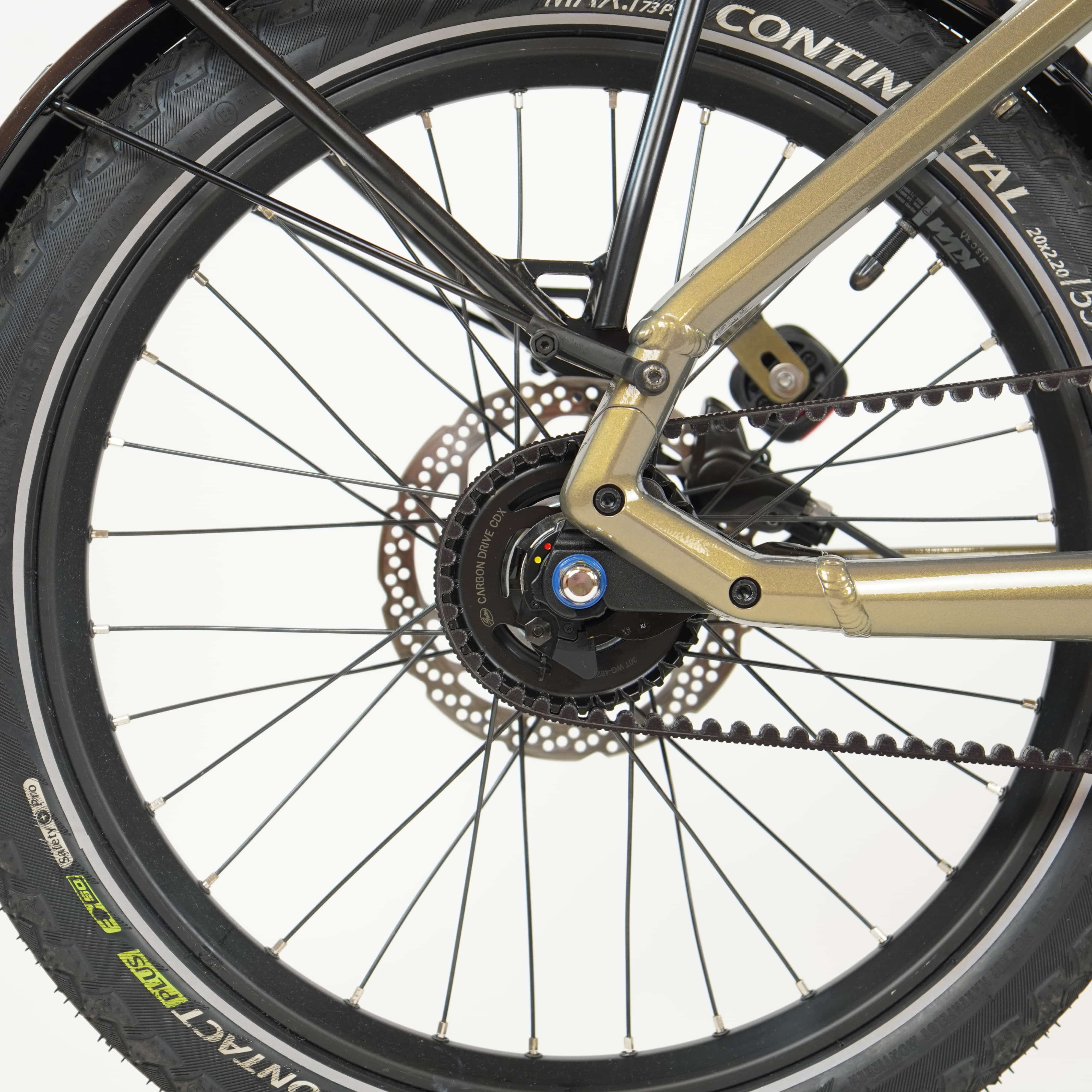

| Rear hub | Shimano Nexus 5 Disc CL 32H 135-10 |
| Set of tires | Continental E-Contact Plus 55-406 Reflex |
| Spokes | front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black |
Other
| Pedals | inkludiert |
| Model year | 2026 |
| Color | Grün |
| Weight | 24,5 kg |
| Permissible total weight | 125 kg |
| EBikeKategorie | E-Trekking-Bikes |
| Gender | Unisex |
