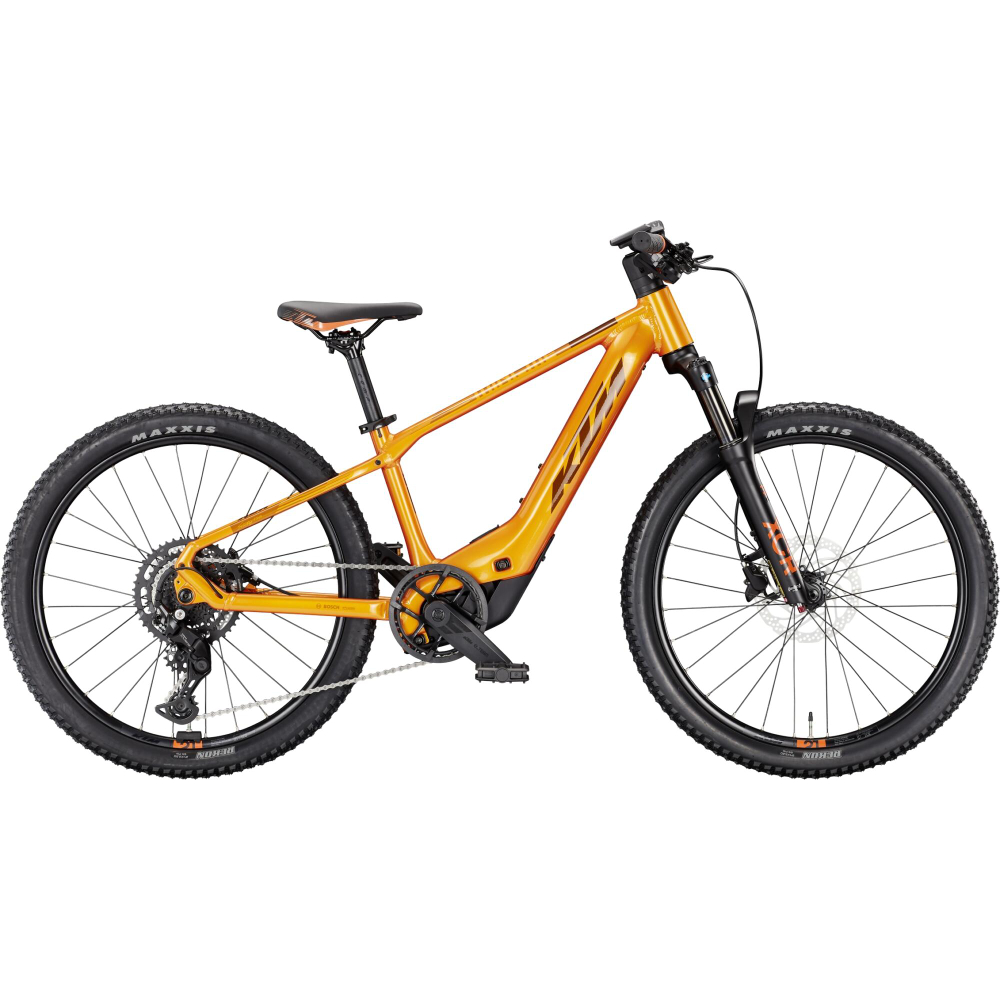

KTM Macina Mini Me SX 24 fresh orange 2026
2.879,10 €
-10%
3.199,00 €
incl. VAT
free shipping*
Little Boost, Big Adventures KTM already had the first children's e-bike in its programme in 2015 with the MINI ME. Over the years, pioneering work has made a polarising product socially acceptable and continuously developed it further. The BOSCH SX Drive Unit takes the Mini Me 24 and 26-inch bikes to the next level. The main focus in the development of the new frame concept was on bike weight and handling. Thanks to the permanently installed CompactTube 400WH battery, the frame weight has been drastically reduced. A closed, butted and hydroformed down tube, which also contains the motor mounts, enables a very light frame and child-friendly geometry.
Akku type
400 Wh - Bosch CompactTUBE 400Wh
Motor type
Bosch PERFORMANCE SX BDU3145
Display
Bosch INTUVIA 100 LCD Display
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE SX BDU3145 |
| Display | Bosch INTUVIA 100 LCD Display |
| Akku | 400 Wh |
| Akku type | Bosch CompactTUBE 400Wh |
| Charger | Bosch COMPACT Charger 2A |
Gears
| Rear derailleur | Shimano CUES U4000-9 LG shadow |
| Cassette | Shimano LG300-9 / 11-46 |
| Shifter | Shimano CUES U4050-9 display |
Brakes
| Brake system | Shimano MT201 / MT200 2-Piston | F: Shimano RT30 CL 180 / R: Shimano RT30 CL 160 |
Cockpit & Seating
| Stem | KTM TEAM MTB 0° |
| Headset | Acros AICR intern 1.1/8"-1.5" angle lim |
| Handlebar | KTM COMP low rizer 640mm |
| Handles | KTM COMP Lock |
| Seatpost | KTM COMP 27.2/300 |
| Saddle clamp | KTM Line JD-SC99 - 31,8mm |
| Saddle | KTM Line Kid |
Frame
| Frame | Macina MTB 24" Alloy 6061 UDH|CPT400 Bosch BDU31/M4040 |
| Frame-Material | Aluminium |
| Frame size | 33 |
| Wheel-Size | 24" |
| Fork | Suntour XCR 34 Air 24" LOR 80mm 15x110 |
| Frametype | Diamant |
Suspension
| Front travel | 80mm |
Drive Unit
| Crank | KTM E-TEAM2 ISIS 135mm Q0 |
| Chain | Shimano LG500 |
| Rims | Ryde Rival21 28H 507x21TC |
| Front hub | Shimano TC500B CL 28H 110-15TA |
| Rear hub | Shimano TC500 CL 28H 142-12TA |
| Set of tires | Maxxis Rekon 57-507 |
| Front tire | Maxxis Rekon 57-507 |
| Rear tire | Maxxis Rekon 57-507 |
| Spokes | front: DT champion 2.0 black - rear: DT Alpine II 2.34 black |
Other
| Pedals | Pedal VP-225 Kids |
| Model year | 2026 |
| Color | Orange/Rot |
| Weight | 17,20 |
| Permissible total weight | 67 kg |
| EBikeKategorie | E-Mountainbikes |
