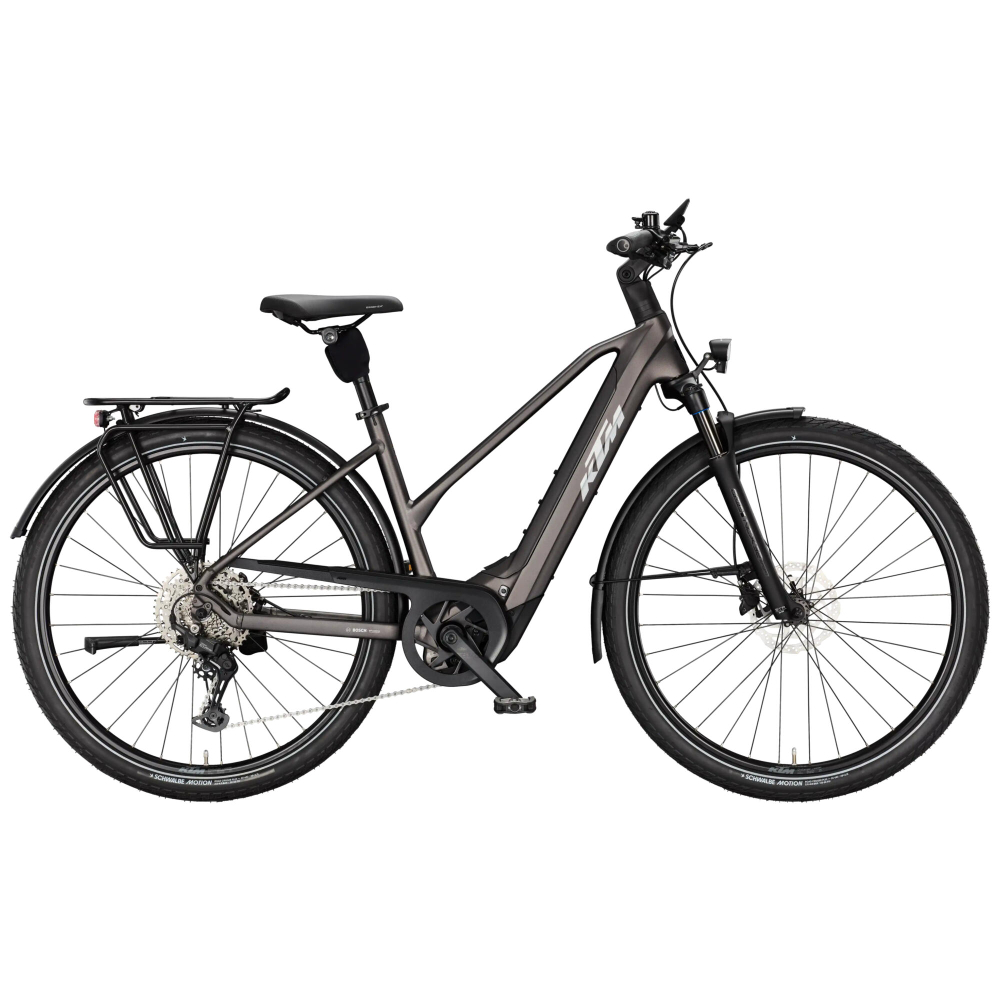

KTM Macina Style 840 D moon rock matt
3.599,00 € incl. VAT free shipping*
The KTM Macina Style 840 D is a versatile e-trekking bike with an aluminium step-through frame and comfortable features for everyday use and touring. The Bosch Performance CX motor is paired with a long-lasting 800 Wh PowerTube battery. The Bosch Intuvia 200 display presents the relevant riding data in an easy-to-read format.
The Shimano CUES 10-speed drivetrain, featuring a robust LinkGlide cassette and a gear range of 11 to 48 teeth, ensures the right gear ratio. Hydraulic Shimano MT200 disc brakes provide reliable and well-controlled braking. The Suntour air suspension fork with 80 mm of travel and the Suntour suspension seatpost enhance comfort on varied terrain. The 28-inch wheels fitted with Schwalbe Motion Road Cruiser tyres are suitable for use on roads and paved paths. It also features an adjustable stem, ergonomic Ergon GP10 grips and a Selle Royal Essenza saddle. A luggage rack, side stand and a lighting system with a 100-lux front light and rear light make this model ready for everyday use.
Akku type
800 Wh - Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Motor type
Bosch PERFORMANCE CX BDU3840 (BOSCH PT-CX8I2)
Display
Bosch INTUVIA 200 Display w/Socket 31,8mm
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE CX BDU3840 (BOSCH PT-CX8I2) |
| Display | Bosch INTUVIA 200 Display w/Socket 31,8mm |
| Akku | 800 Wh |
| Akku type | Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key) |
| Charger | Bosch COMPACT Charger 2A |
Gears
| Rear derailleur | Shimano CUES U6000-11/10 LG Shadow+ |
| Cassette | Shimano LG400-10 / 11-48 LinkGLIDE |
| Shifter | Shimano CUES U6000-10 LG /Display |
Brakes
| Front brake | Shimano MT200 / MT200 2-Piston |
| Rear brake | Shimano MT200 / MT200 2-Piston |
Cockpit & Seating
| Stem | KTM Line ICR 0-90° adjust |
| Headset | Acros AICR internal 1.5"-1.5" |
| Handlebar | KTM Line rizer20 640mm |
| Handles | GRIP ERGON GP10 |
| Seatpost | Suntour SP25-NCX suspension 30.9/350 |
| Saddle clamp | KTM Line JD-SC99 - 34,9mm |
| Saddle | Selle Royal Essenza |
Other Specs
| Luggage carrier | KTM tour snap-it 2.0/monkeyload|childseat + rack clip |
| Stand | KTM 28" adjustable MY2025 |
| Front light | Litemove RLX-100 100Lux down |
| Rear light | B&M Toplight 2C |
| Mudguards | front: SKS A62K PET Trek 28" - rear: SKS A62K PET Trek 28" |
Frame
| Frame | Macina Trekking Onroad Alloy 6061|PT800 Bosch BDU38/T5940 |
| Frame-Material | Aluminium |
| Wheel-Size | 28" |
| Fork | Suntour NCX32-D SPORT Air 29" LO 80mm 5TA |
| Frametype | Trapez |
Suspension
| Front travel | 80mm |
Drive Unit
| Crank | KTM E-LINE2 ISIS 170mm Q8 |
| Chain | Shimano LG500-9/10/11 |
| Rims | Ambrosio Challenger 32H 622x28TC |
| Front hub | Shimano Deore M5100 CL 32H 100-5QR |
| Rear hub | Shimano Deore M6000 CL 32H 135-5QR |
| Front tire | Schwalbe Motion Road Cruiser 55-622 |
| Rear tire | Schwalbe Motion Road Cruiser 55-622 |
| Spokes | Front: DT Champion 2.0 black - Rear: DT Alpine II 2.34 black |
Other
| Pedals | Trekking-Pedal alloy VP-616 rubber |
| Model year | 2027 |
| Color | Grau |
| EBikeKategorie | E-Trekking-Bikes |
| Gender | Unisex |
Maximum energy for long rides
The Bosch PowerTube 800 is the highest-capacity integrated battery in the Bosch Smart System. With 800 Wh, it provides plenty of energy reserves for long rides, big climbs and extended e-MTB adventures.
