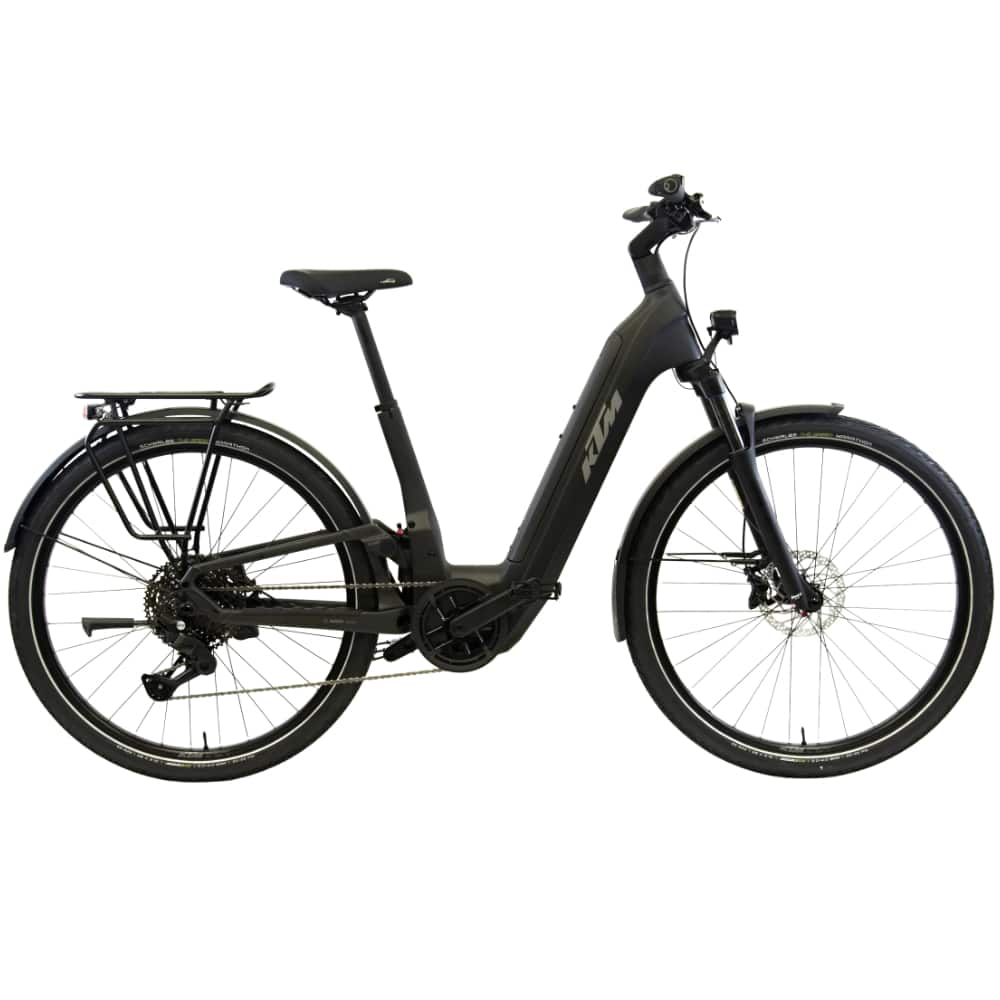

KTM Macina Style FS Elite US Diamond Black Matt
4.699,00 € incl. VAT free shipping*
TREKKING, STYLE, SHOCK – IT’S A MATCH! Yes, even the perfection of the MACINA STYLE concept can be surpassed. For the new model year, the STYLE FS Prime is available as a full-suspension version with an extra 100mm of rear travel. In terms of comfort and versatility, this concept propels the already popular trekking bike into a completely different league. The Bosch Performance Line CX (BDU384Y) takes riding dynamics and agility to a whole new level. Powerful, lightweight and dynamic (100 Nm max. torque / 750-watt max. motor power / 400% max. assistance factor). The Power Tube battery offers a capacity of 800 Wh. Here too, KTM is once again relying on the tried-and-tested POWER TUBE TOP LOADER (PTTL) concept. PTTL is the battery removal system developed by KTM, which allows the battery to be removed from the top of the down tube. This makes removing and reinserting the battery a breeze.
Akku type
800 Wh - Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Motor type
Bosch PERFORMANCE CX BDU3840 (BOSCH PT-CX8K2)
Display
Bosch KIOX 500 TFT Display
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch PERFORMANCE CX BDU3840 (BOSCH PT-CX8K2) |
| Display | Bosch KIOX 500 TFT Display |
| Akku | 800 Wh |
| Akku type | Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key) |
| Charger | Bosch COMPACT Charger 2A |
Gears
| Rear derailleur | Shimano DEORE M7230-11 LG ShadowES |
| Cassette | Shimano LG400-11 / 11-50 LinkGLIDE |
| Shifter | Shimano CUES U6000-11 LG /Display |
Brakes
| Front brake | Shimano MT402-3A / MT420 4-Piston |
| Rear brake | Shimano MT402-3A / MT420 4-Piston |
Cockpit & Seating
| Stem | KTM Integration ICR 0-60° adjust |
| Headset | Acros AICR internal 1.5"-1.5" |
| Handlebar | KTM TEAM II rizer15 700mm |
| Handles | GRIP ERGON GP10 |
| Seatpost | KTM TEAM II 30.9/350 |
| Saddle clamp | KTM Line JD-SC140A - 35,0mm |
| Saddle | Selle Royal Lookin |
Other Specs
| Luggage carrier | KTM tour60 snap-it 2.0/monkeyload|rack clip |
| Stand | KTM 28" adjustable MY2025 |
| Front light | B&M Briq-M 150Lux |
| Rear light | B&M Toplight 2C |
| Mudguards | front: SKS A65R PET Trek 29" - rear: SKS A65R PET Trek 29" |
Frame
| Frame | Macina FS PERFORMANCE CARBON VPP100|PT800 Bosch BDU38/T5880 |
| Frame-Material | Carbon |
| Wheel-Size | 27,5" |
| Fork | Suntour NCX32-D SPORT Air 29" 2CR 100mm 15x110 |
| Frametype | Tiefeinstieg |
Suspension
| Front travel | 100mm |
| Rear shock absorber | Suntour EDGE-X R 190x45 |
Drive Unit
| Crank | KTM E-COMP2 ISIS 170mm Q8 |
| Chain | Shimano LG500-9/10/11 |
| Front hub | Shimano TC500B CL 32H 110-15TA |
| Rear hub | Shimano TC600B CL 32H 148-12TA |
| Front tire | Schwalbe Green Marathon Perf. GreenGuard 55-622 |
| Rear tire | Schwalbe Green Marathon Perf. GreenGuard 55-622 |
| Spokes | Front: DT Champion 2.0 black - Rear: DT Alpine II 2.34 black |
Other
| Pedals | MTB-Pedal alloy VPE-527 flat |
| Model year | 2027 |
| Color | Schwarz |
| Weight | 28,8 kg |
| Permissible total weight | 139 kg |
| EBikeKategorie | E-Trekking-Bikes |
| Gender | Unisex |
Large display. Full control.
The Bosch Kiox 500 keeps navigation, ride data and training information clearly in view. Its large, bright color display is ideal for sporty rides and demanding e-bike adventures.
Maximum energy for long rides
The Bosch PowerTube 800 is the highest-capacity integrated battery in the Bosch Smart System. With 800 Wh, it provides plenty of energy reserves for long rides, big climbs and extended e-MTB adventures.
