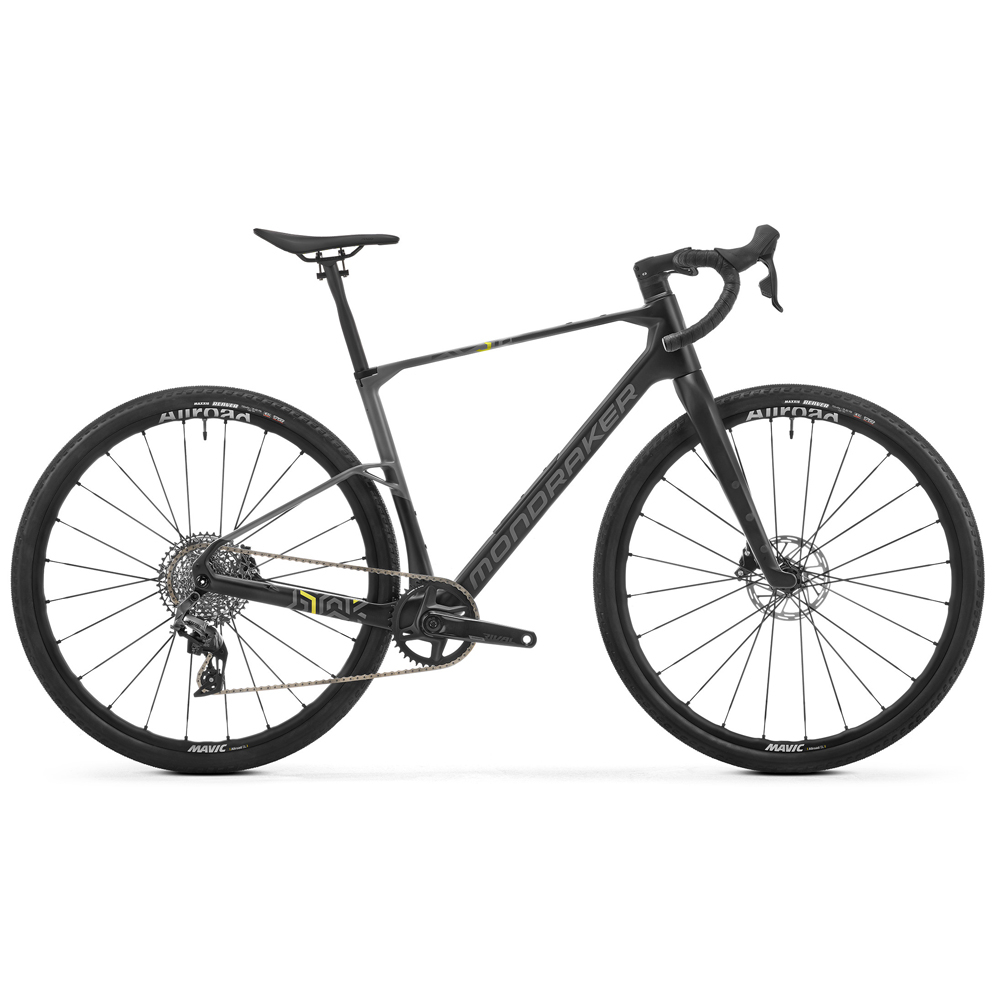

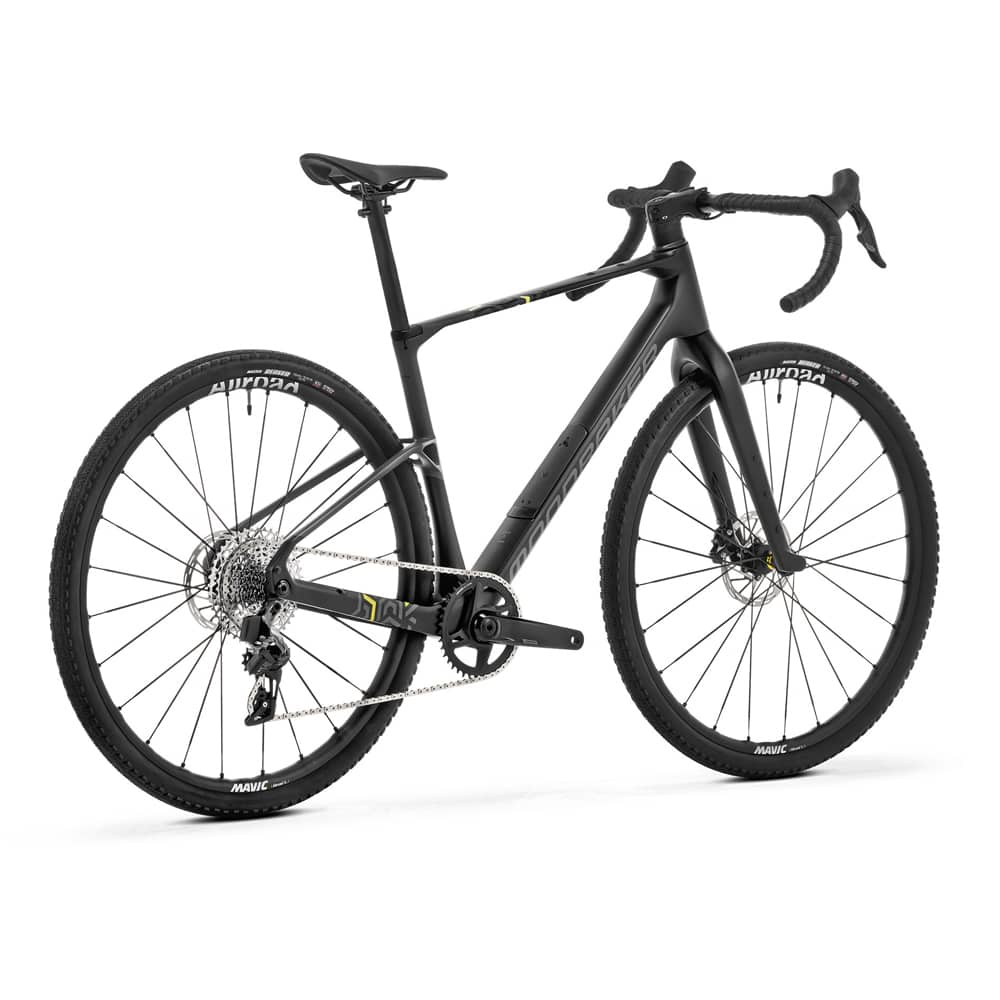

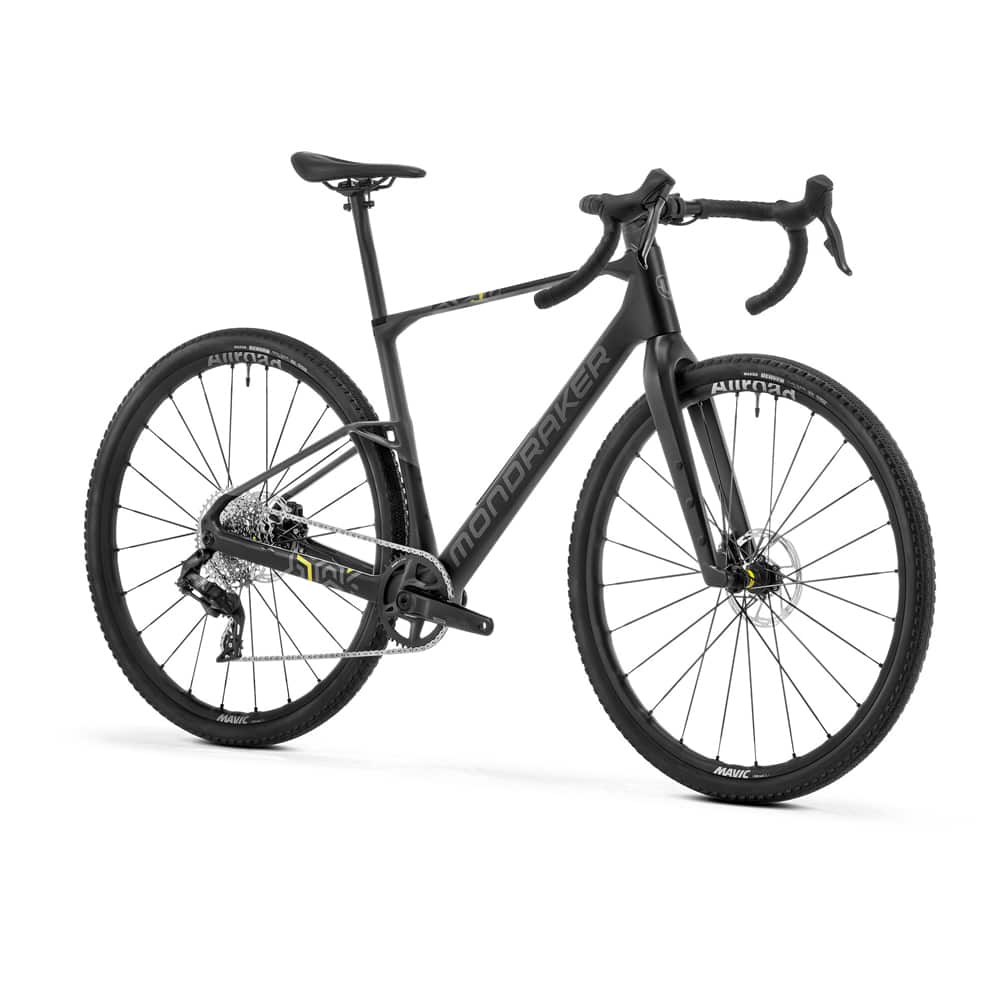

Mondraker Arid Carbon R black 2025 - RH-ML
3.999,00 €
-11%
4.499,00 €
incl. VAT
free shipping*
The Mondraker Arid Carbon R 2025 is a versatile gravel bike that is just as impressive on demanding trails as it is on longer tours. It is based on the newly developed Stealth Air carbon frame, which combines lightweight construction with stability and has been tested to the same ISO standards as Mondraker's mountain bikes.
The Arid Carbon R is equipped with a wireless 12-speed SRAM Rival XPLR ETAP AXS groupset offering a 40t chainring and a 10-44 cassette. The SRAM Rival ETAP AXS hydraulic disc brakes respond with lightning speed and power, especially in wet conditions, and are operated with 160 mm brake rotors.
The Mavic Allroad SL wheels with UST technology and 25 mm inner width are fitted with 45 mm wide Maxxis Reaver EXO 120TPI tyres, which provide good grip when cornering and easy rolling
Gears
| Rear derailleur | SRAM Rival XPLR Etap AXS, 12-Gang |
| Cassette | SRAM XG-1251, 10-44Z, 12-Gang |
| Shifter | SRAM Rival Etap AXS, 12-Gang |
| Derailleur hanger | SRAM UDH |
Brakes
| Front brake | SRAM Rival Etap AXS, zweiteiliger Bremssattel, 160 mm Paceline-Bremsscheibe für Center Lock, organischer Bremsbelag mit Rückplatte aus Stahl |
| Rear brake | SRAM Rival Etap AXS, zweiteiliger Bremssattel, 160 mm Paceline-Bremsscheibe für Center Lock, organischer Bremsbelag mit Rückplatte aus Stahl |
| Brake levers | SRAM Rival, Druckpunkteinstellung, Griffweiteneinstellung mit Werkzeug, Kunststoffhebel |
Cockpit & Seating
| Stem | Onoff Semi-Integrated, 31,8 mm Lenkerdurchmesser, Winkel: -7º, Länge: Größe S: 60 mm, Größe M: 70 mm, Größe ML: 70 mm, Größe L: 80 mm, Größe XL: 90 mm |
| Headset | ONOFF IS52/IS52, 1-1/8", 1,5" Steuerrohr, gedichtete Lager, innen verlegte Leitungen und Züge. |
| Handlebar | ONOFF S9 GR 16° Lenker-Flare. Breiten Größe S: 440 mm, Größe M: 440 mm, Größe ML : 460mm, Größe L: 460 mm, Größe XL: 460 mm |
| Handles | ONOFF HEX Lenkerband |
| Seatpost | ONOFF S9 Carbon 0-R, Durchmesser 27,2 mm, Länge 400 mm |
| Saddle | FIZIK Terra Argo X5 140 mm |
Frame
| Frame | Arid Stealth Air Carbon, Rahmenstaufach, T47 Innenlager, konisches Steuerrohr, innen verlegte Leitungen und Züge (HHG), 12 x 142 mm Hinterachse, Design für Einfach-Antriebe |
| Frame-Material | Carbon |
| Frame size | 48 |
| Wheel-Size | 28" |
| Fork | Stealth Air Carbon, konisches Steuerrohr, HHG, integrierte Flat-Mount-Gabel |
| Frametype | Diamant |
Drive Unit
| Crank | SRAM Rival 1 DUB GLS Wide, Größe S: 170 mm, Größe M: 170 mm, Größe ML: 172,5 mm, Größe L: 172,5 mm, Größe XL: 175 mm, Kettenlinie 47,5 |
| Chain | SRAM Rival, 12-Gang, Powerlock |
| Rims | Mavic Allroad SL, UST, 25 mm Innenbreite, Hookless, Infinity-Naben, 24 Speichen |
| Front hub | Mavic, 12 x 100 mm, IS 6-Loch |
| Rear hub | Mavic Infinity Nabe, 12 x 142 mm, XD ID360 Ratchet-Freilaufsystem, IS 6-Loch, XDR-Freilauf |
| Chainrings | SRAM X-SYNC Eagle 40Z Direct Mount, Aluminium, Narrow-Wide |
| Bottom bracket | SRAM DUB T47 BSA, gedichtete Lager, 85,5 mm |
| Front tire | Maxxis Reaver 700 x 45, Tubeless Ready, Dual-Gummimischung, EXO Protection, 120 TPI, Faltwulst |
| Rear tire | Maxxis Reaver 700 x 45, Tubeless Ready, Dual-Gummimischung, EXO Protection, 120 TPI, Faltwulst |
| Spokes | Mavic Steel, doppelt konifizierte Flachspeichen |
| Wheelset | Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes |
Other
| Pedals | ohne |
| Model year | 2025 |
| Color | Schwarz |
| Weight | 8,90 |
| Gender | Unisex |
