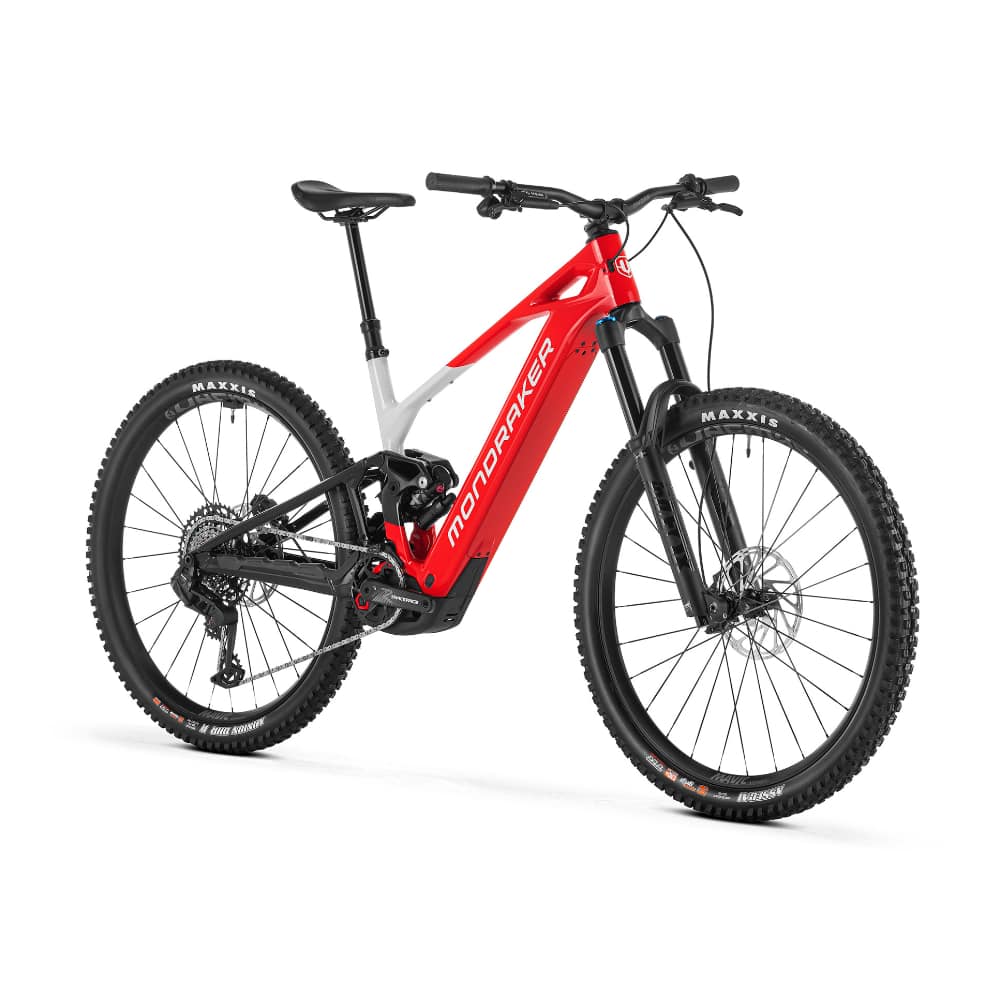

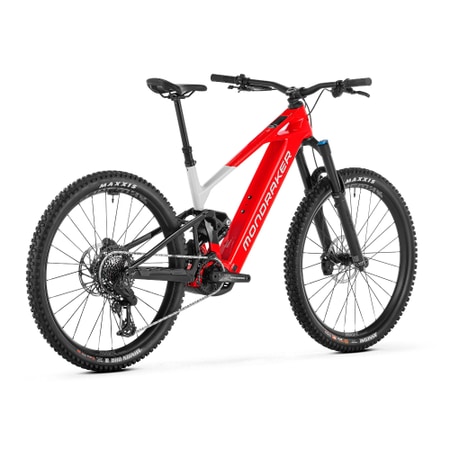

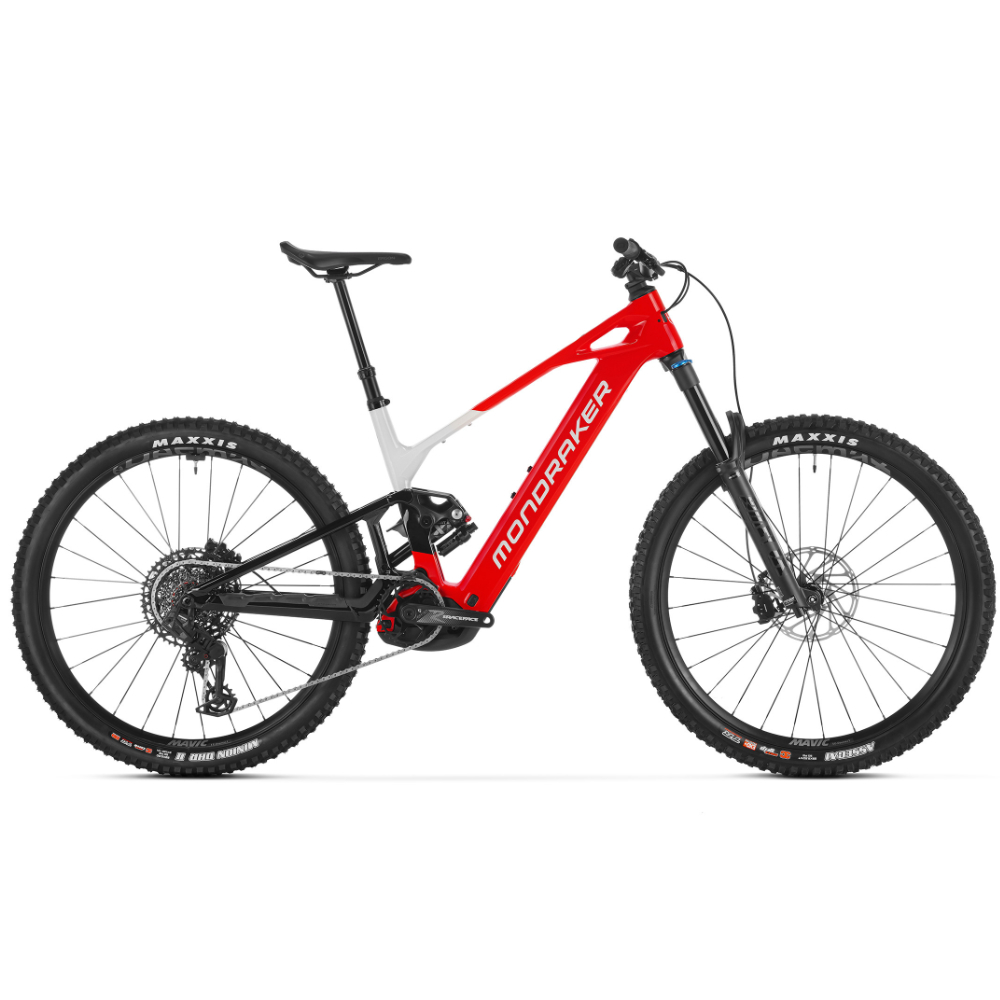

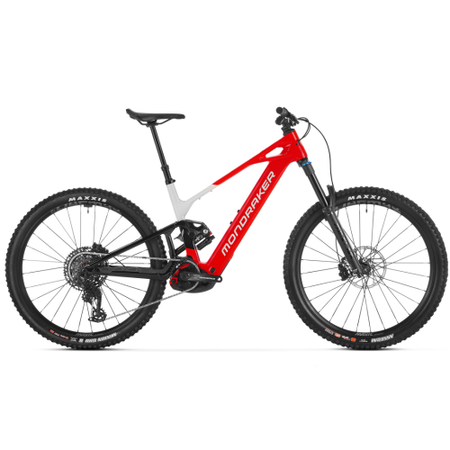

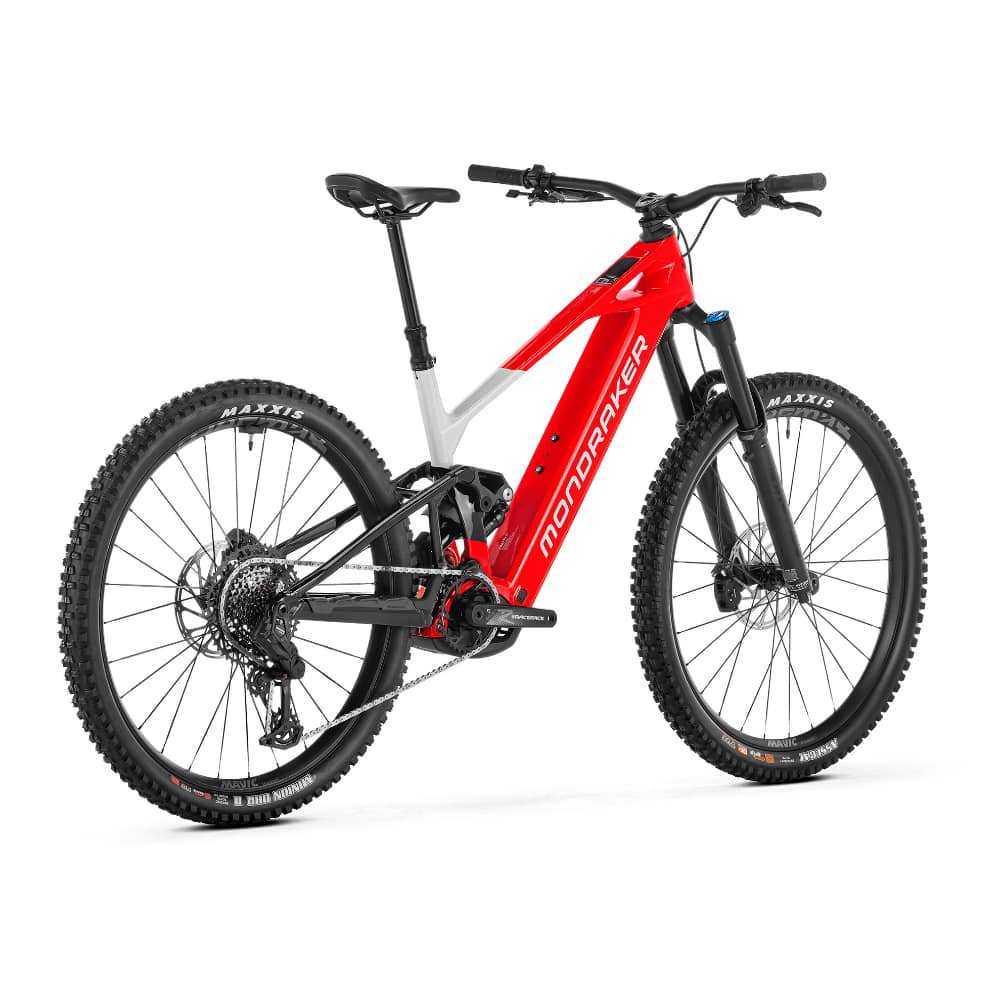

Mondraker Crafty Carbon R chilli red 2026
6.599,00 €
-13%
7.599,00 €
incl. VAT
free shipping*
Not so easy to decide, is it? The appeal of the Crafty Carbon lies not only in its power, suspension travel or range. It's clear that this bike is a real performance statement: Bosch CX Gen5 motor, removable 800Wh battery and the seamlessly integrated Kiox 400 display directly in the top tube also make for a really clean look! But hey, there are also the colours! Each one tells its own story.
Akku type
800 Wh - Bosch Powertube 800 Wh
Motor type
Bosch Performance Line CX (25 km/h) SMART-SYSTEM (BDU384Y) max. 120Nm
Display
Kiox 400C / Bosch Mini Remote
Ready for More Power
You are able to increase the torque of selected Bosch motors to up to 120 Nm via the Flow App. Your advantage: noticeably more thrust – and up to 600% motor support. Using the eBike Flow App, you can customize the riding modes and precisely adjust the performance to match your riding style.
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch Performance Line CX (25 km/h) SMART-SYSTEM (BDU384Y) max. 120Nm |
| Display | Kiox 400C / Bosch Mini Remote |
| Akku | 800 Wh |
| Akku type | Bosch Powertube 800 Wh |
Gears
| Rear derailleur | SRAM S1000 Eagle AXS T-Type, 12-fach |
| Cassette | SRAM XS-1270, 10-52Z, T-Type, 12-fach |
| Shifter | SRAM Eagle AXS Pod MMX, 12-fach |
Brakes
| Front brake | SRAM Maven Base, 18 mm 4-Kolben-Bremssattel, einteilige 200 mm IS 6-Loch Centerline-Bremsscheibe, organische Bremsbeläge mit Stahlträgerplatte |
| Rear brake | SRAM Maven Base, 18 mm 4-Kolben-Bremssattel, einteilige 200 mm IS 6-Loch Centerline-Bremsscheibe, organische Bremsbeläge mit Stahlträgerplatte |
| Brake levers | SRAM Maven Base, Directlink und Hebelgelenkbuchsen, werkzeuglose Griffweiteneinstellung |
Cockpit & Seating
| Stem | ONOFF S6 30 mm 0°, geschmiedetes 6061 Aluminium + CNC, 31,8 mm Lenkerdurchmesser |
| Headset | Acros Custom ZS56/ZS56, 1-1/8", 1,5" Steuerrohr, innen verlegte Leitungen und Züge, Verschlussstopfen ohne Blocklock |
| Handlebar | ONOFF S6 1.0 7050 Aluminium, Erhöhung: 25 mm, Breite: 800 mm, 8° Backsweep, 5° Upsweep, 31,8 mm Lenkerdurchmesser. Größe L und XL: 38 mm Erhöhung. |
| Handles | ONOFF Desert Pro, CNC Lock-On, 135 mm. L und XL: dickerer Griff |
| Seatpost | ONOFF Pija Teleskopstütze, interne Zugverlegung, Durchmesser 31,6 mm, 1x-Remote-Hebel mit Lager |
| Saddle | Ergon SM-10 |
Frame
| Frame | Crafty Stealth Air Full Carbon vorderes Dreieck, Stealth Alloy hinteres Dreieck, aktualisiertes Zero Suspension System, 150 mm Federweg, Forward Geometry, integrierter, herausnehmbarer Akku |
| Frame-Material | Carbon |
| Wheel-Size | 29" |
| Fork | Fox 38 29 Float GRIP Performance, 160 mm, an E-Bikes angepasst, konischer Gabelschaft, 15 x 110 mm Boost-Achse, 44 mm Offset. Einstellungen: 3 Positionen mit mikroverstellbarer Druckstufe |
| Frametype | Diamant |
Suspension
| Front travel | 160mm |
| Rear shock absorber | Fox Float-X LV Performance, 185 x 55 mm. Einstellungen: Druckstufe über 2-Wege-Hebel, Low-Speed-Zugstufe, Luftvorspannung. Trunnion-Aufnahme oben, untere Buchsen: 30 x 8 mm |
| Dämpfer Hardware | Druckstufe: CS40, Zugstufe: RL70, Rezi B40, LML, Volumenspacer 0,2 |
Drive Unit
| Crank | Race Face Aeffect-R E-Bike, 160 mm |
| Chain | SRAM GX Eagle T-Type, 12-fach, PowerLock |
| Rims | Mavic E-Deemax 29, 30 mm Innenbreite, geschweißt, PFP, Tubeless Ready, 28 Speichen |
| Front hub | Mavic, Boost 15 x 110 mm, IS 6-Loch |
| Rear hub | Mavic, Boost 12 x 148 mm, ID360 Ratchet-Freilaufsystem, IS 6-Loch, HG Freehub |
| Chainrings | SRAM Eagle 34Z T-Type, Direct Mount, Stahl, CL55 |
| Set of tires | Maxxis Assegai 29x2,5WT, Tubeless Ready, 3C MaxxGrip-Gummimischung, EXO+ Protection, 60TPI, Faltwulst |
| Front tire | Maxxis Assegai 29 x 2,5 WT, Tubeless Ready, 3C MaxxGrip-Gummimischung, EXO+ Protection, 60 TPI, Faltwulst |
| Rear tire | Maxxis Minion DHR II 29 x 2,5 WT, Tubeless Ready, 3C MaxxTerra-Gummimischung, DD Protection, 2 x 120 TPI, Faltwulst |
| Spokes | Mavic J-Bend, doppelt konifiziert, kontaktlos gekreuzt |
| Wheelset | Mavic E-Deemax 29, 30mm Innenbreite, geschweißt, PFP, Tubeless Ready, 28 Speichen |
Other
| Pedals | ohne |
| Model year | 2026 |
| Color | Orange/Rot |
| Weight | 24,5 kg |
| EBikeKategorie | E-Mountainbikes |
| Gender | Unisex |
