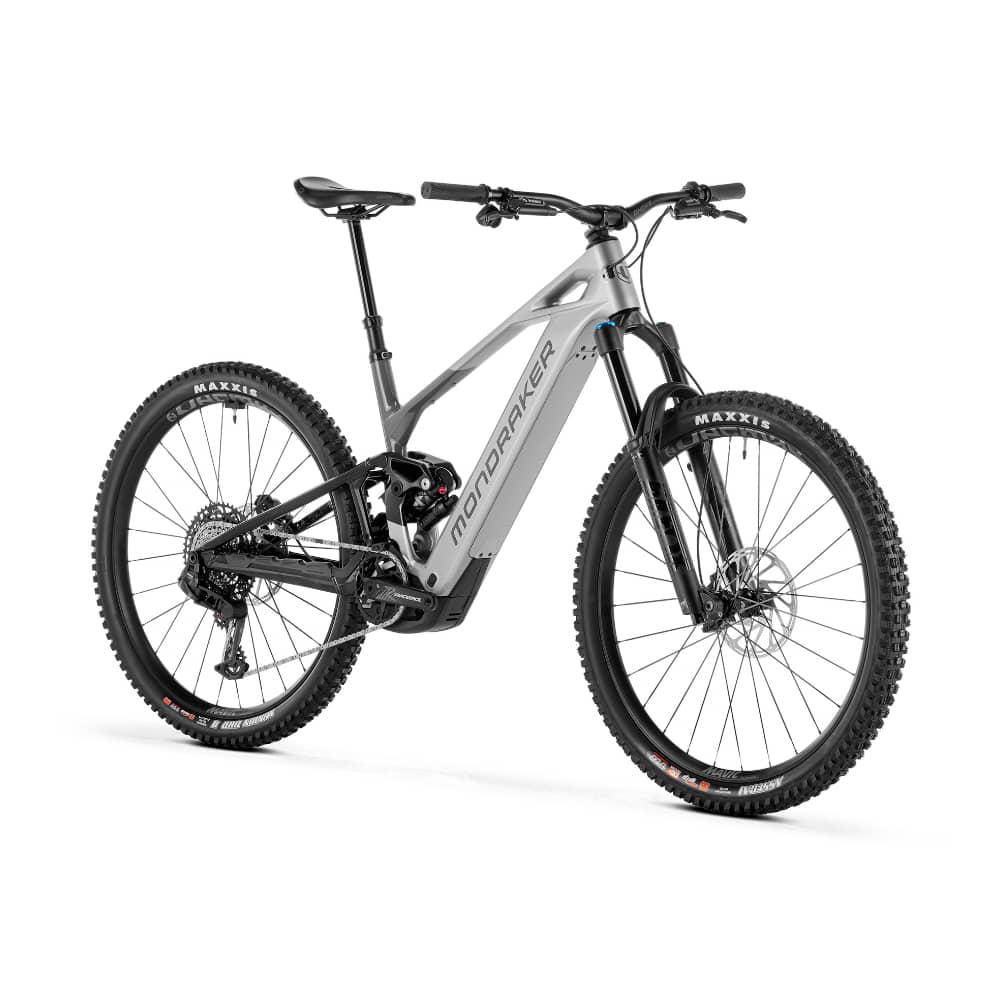

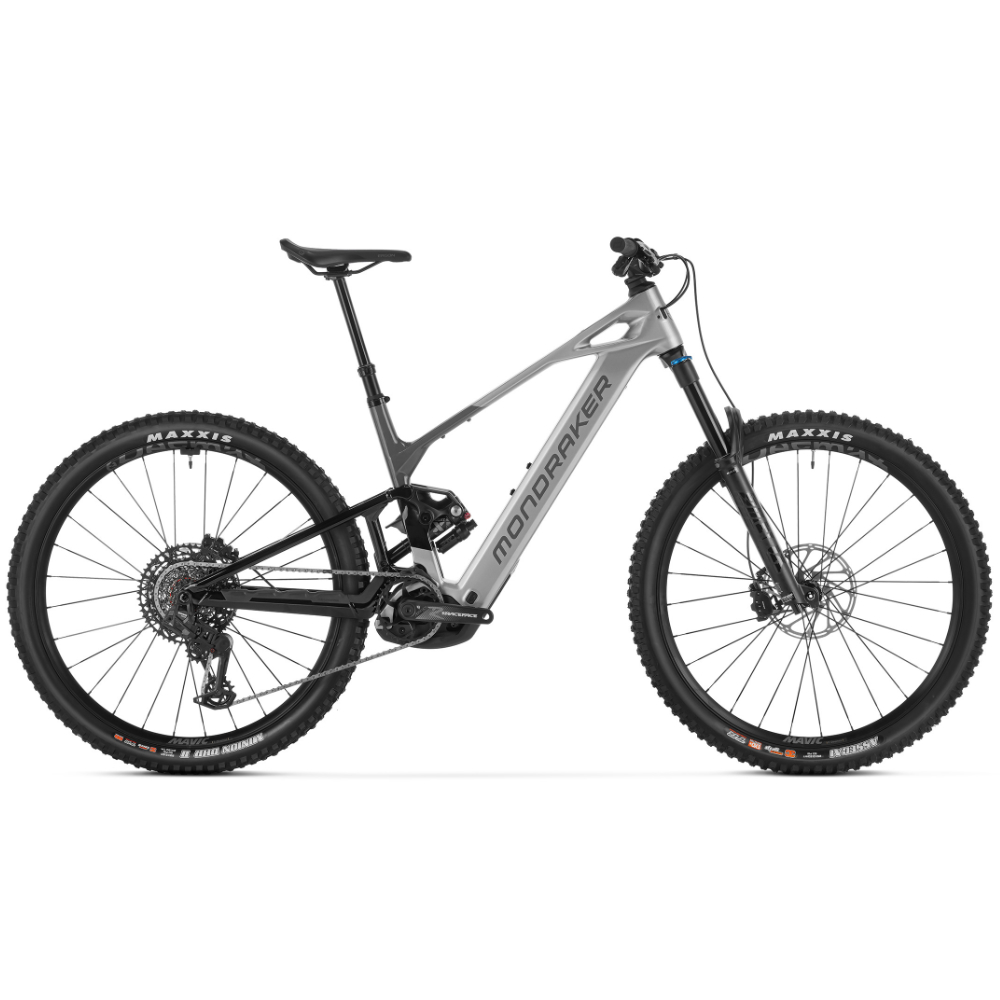

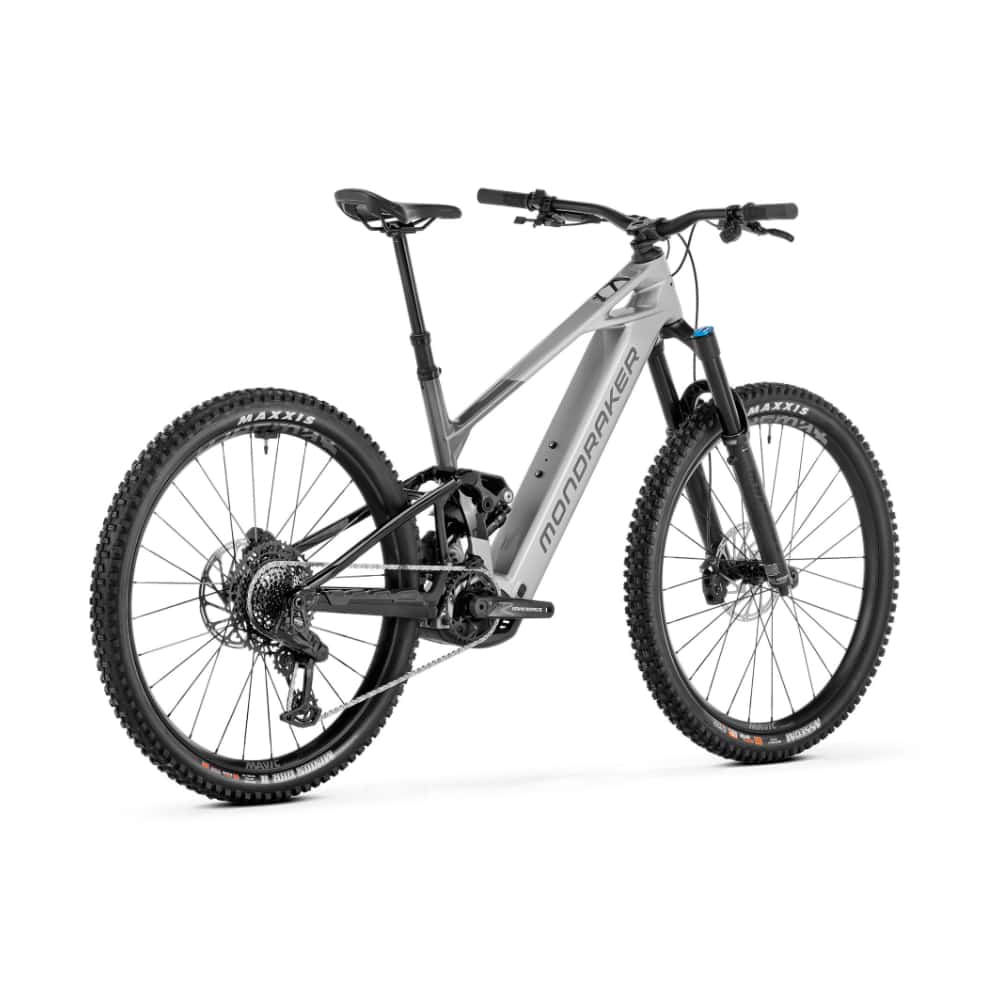

Mondraker Crafty Carbon R golden silver 2026
6.839,10 €
-10%
7.599,00 €
incl. VAT
free shipping*
Not so easy to decide, is it? The appeal of the Crafty Carbon lies not only in its power, suspension travel or range. It's clear that this bike is a real performance statement: Bosch CX Gen5 motor, removable 800Wh battery and the seamlessly integrated Kiox 400 display directly in the top tube also make for a really clean look! But hey, there are also the colours! Each one tells its own story.
Akku type
800 Wh - Bosch Powertube 800 Wh
Motor type
Bosch Performance Line CX (25 km/h) SMART-SYSTEM (BDU384Y) max. 120Nm
Display
Kiox 400C / Bosch Mini Remote
Ready for More Power
You are able to increase the torque of selected Bosch motors to up to 120 Nm via the Flow App. Your advantage: noticeably more thrust – and up to 600% motor support. Using the eBike Flow App, you can customize the riding modes and precisely adjust the performance to match your riding style.
E-Bike Components
| Motor manufacturer | Bosch |
| Motor type | Bosch Performance Line CX (25 km/h) SMART-SYSTEM (BDU384Y) max. 120Nm |
| Display | Kiox 400C / Bosch Mini Remote |
| Akku | 800 Wh |
| Akku type | Bosch Powertube 800 Wh |
Gears
| Rear derailleur | SRAM S1000 Eagle AXS T-Type, 12-fach |
| Cassette | SRAM XS-1270, 10-52Z, T-Type, 12-fach |
| Shifter | SRAM Eagle AXS Pod MMX, 12-fach |
Brakes
| Front brake | SRAM Maven Base, 18 mm 4-Kolben-Bremssattel, einteilige 200 mm IS 6-Loch Centerline-Bremsscheibe, organische Bremsbeläge mit Stahlträgerplatte |
| Rear brake | SRAM Maven Base, 18 mm 4-Kolben-Bremssattel, einteilige 200 mm IS 6-Loch Centerline-Bremsscheibe, organische Bremsbeläge mit Stahlträgerplatte |
| Brake levers | SRAM Maven Base, Directlink und Hebelgelenkbuchsen, werkzeuglose Griffweiteneinstellung |
Cockpit & Seating
| Stem | ONOFF S6 30 mm 0°, geschmiedetes 6061 Aluminium + CNC, 31,8 mm Lenkerdurchmesser |
| Headset | Acros Custom ZS56/ZS56, 1-1/8", 1,5" Steuerrohr, innen verlegte Leitungen und Züge, Verschlussstopfen ohne Blocklock |
| Handlebar | ONOFF S6 1.0 7050 Aluminium, Erhöhung: 25 mm, Breite: 800 mm, 8° Backsweep, 5° Upsweep, 31,8 mm Lenkerdurchmesser. Größe L und XL: 38 mm Erhöhung. |
| Handles | ONOFF Desert Pro, CNC Lock-On, 135 mm. L und XL: dickerer Griff |
| Seatpost | ONOFF Pija Teleskopstütze, interne Zugverlegung, Durchmesser 31,6 mm, 1x-Remote-Hebel mit Lager |
| Saddle | Ergon SM-10 |
Frame
| Frame | Crafty Stealth Air Full Carbon vorderes Dreieck, Stealth Alloy hinteres Dreieck, aktualisiertes Zero Suspension System, 150 mm Federweg, Forward Geometry, integrierter, herausnehmbarer Akku |
| Frame-Material | Carbon |
| Wheel-Size | 29" |
| Fork | Fox 38 29 Float GRIP Performance, 160 mm, an E-Bikes angepasst, konischer Gabelschaft, 15 x 110 mm Boost-Achse, 44 mm Offset. Einstellungen: 3 Positionen mit mikroverstellbarer Druckstufe |
| Frametype | Diamant |
Suspension
| Front travel | 160mm |
| Rear shock absorber | Fox Float-X LV Performance, 185 x 55 mm. Einstellungen: Druckstufe über 2-Wege-Hebel, Low-Speed-Zugstufe, Luftvorspannung. Trunnion-Aufnahme oben, untere Buchsen: 30 x 8 mm |
| Dämpfer Hardware | Druckstufe: CS40, Zugstufe: RL70, Rezi B40, LML, Volumenspacer 0,2 |
Drive Unit
| Crank | Race Face Aeffect-R E-Bike, 160 mm |
| Chain | SRAM GX Eagle T-Type, 12-fach, PowerLock |
| Rims | Mavic E-Deemax 29, 30 mm Innenbreite, geschweißt, PFP, Tubeless Ready, 28 Speichen |
| Front hub | Mavic, Boost 15 x 110 mm, IS 6-Loch |
| Rear hub | Mavic, Boost 12 x 148 mm, ID360 Ratchet-Freilaufsystem, IS 6-Loch, HG Freehub |
| Chainrings | SRAM Eagle 34Z T-Type, Direct Mount, Stahl, CL55 |
| Set of tires | Maxxis Assegai 29 x 2,5 WT, Tubeless Ready, 3C MaxxGrip-Gummimischung, EXO+ Protection, 60 TPI, Faltwulst |
| Front tire | Maxxis Assegai 29 x 2,5 WT, Tubeless Ready, 3C MaxxGrip-Gummimischung, EXO+ Protection, 60 TPI, Faltwulst |
| Rear tire | Maxxis Minion DHR II 29 x 2,5 WT, Tubeless Ready, 3C MaxxTerra-Gummimischung, DD Protection, 2 x 120 TPI, Faltwulst |
| Spokes | Mavic J-Bend, doppelt konifiziert, kontaktlos gekreuzt |
| Wheelset | Mavic E-Deemax 29, 30 mm Innenbreite, geschweißt, PFP, Tubeless Ready, 28 Speichen |
Other
| Pedals | ohne |
| Model year | 2026 |
| Color | Silber |
| Weight | 24,5 kg |
| EBikeKategorie | E-Mountainbikes |
| Gender | Unisex |
Perfectly integrated. Built for the trail.
The Bosch Kiox 400C is integrated directly into the top tube and is therefore optimally protected. The brilliant color display dynamically provides exactly the information you need in each riding situation.
Maximum energy for long rides
The Bosch PowerTube 800 is the highest-capacity integrated battery in the Bosch Smart System. With 800 Wh, it provides plenty of energy reserves for long rides, big climbs and extended e-MTB adventures.
