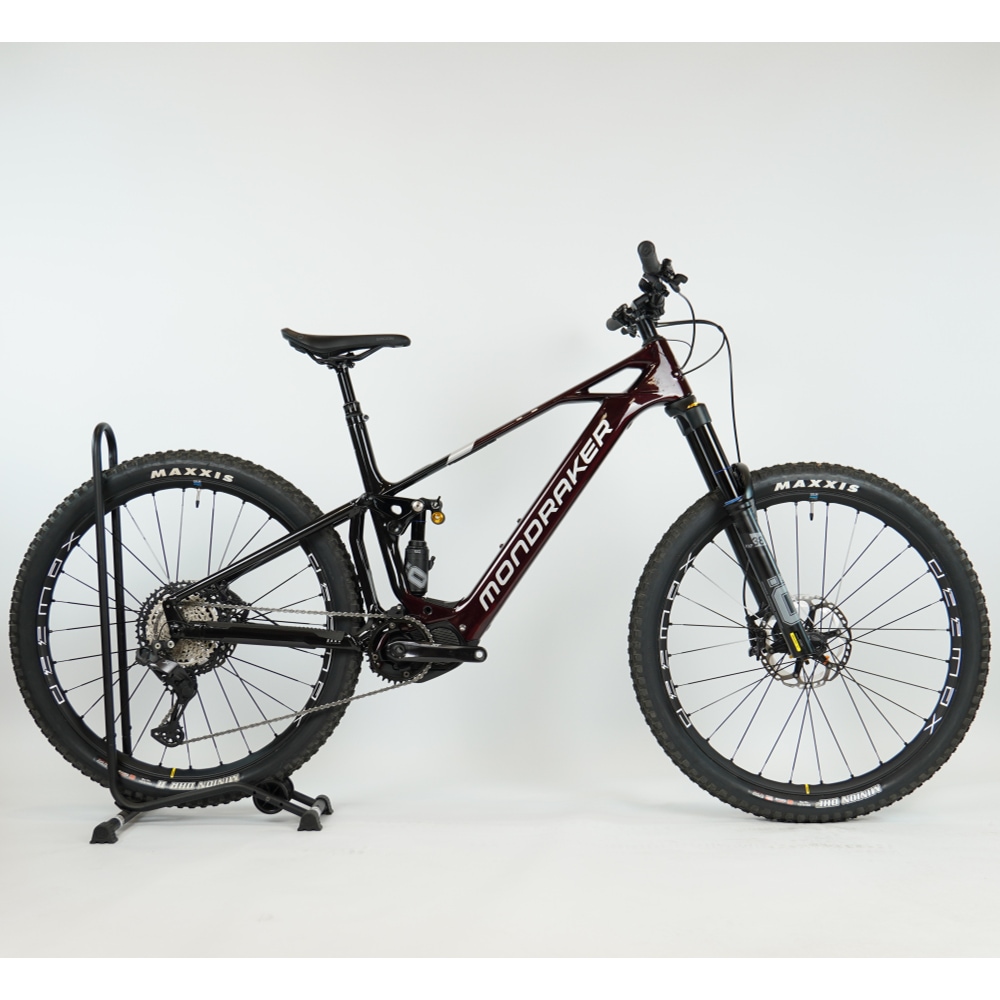

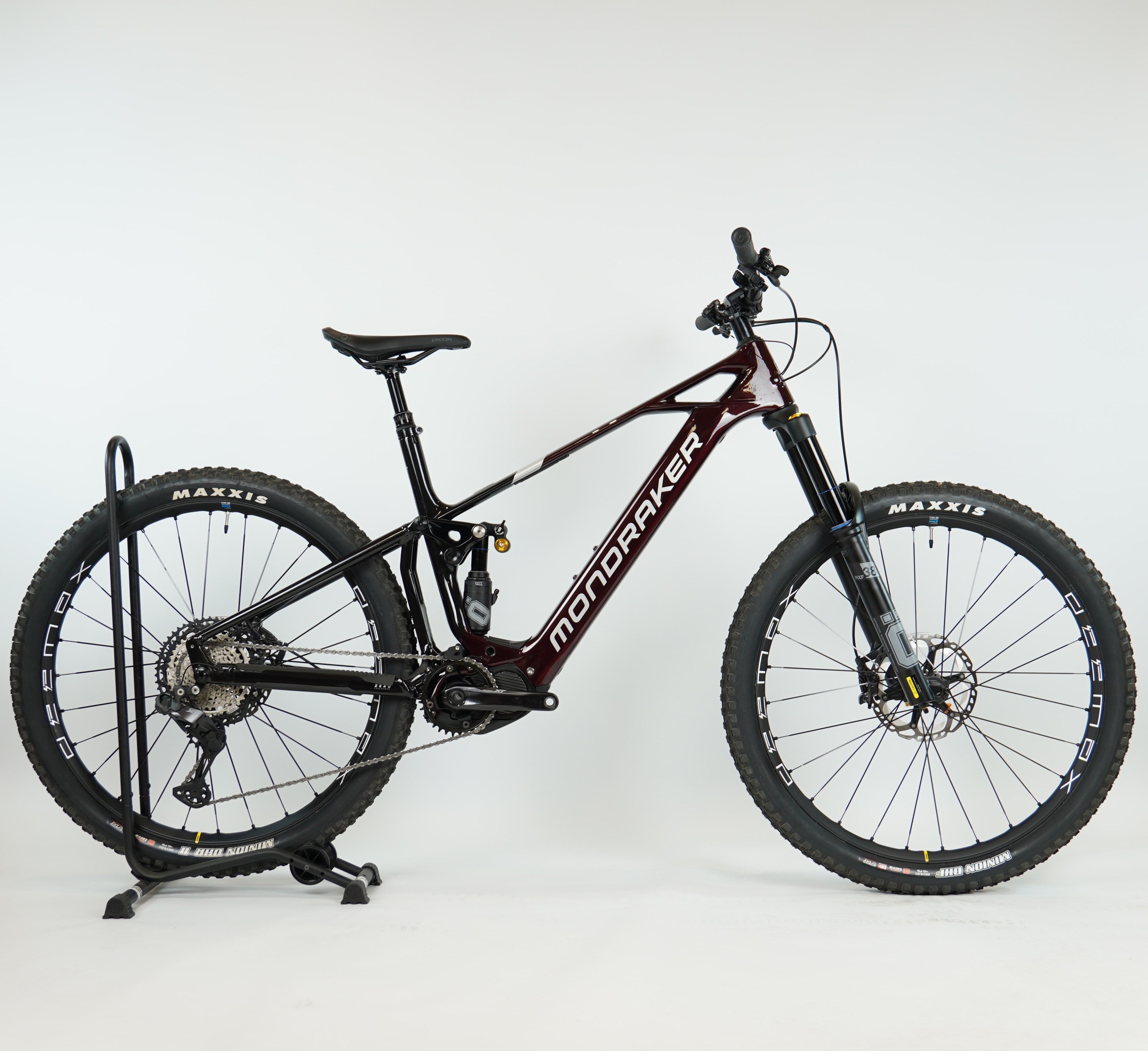

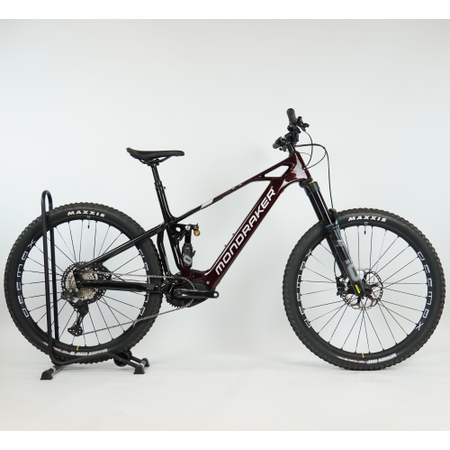

Mondraker Crusher RR translucent red carbon 2024 - RH-XL test bike
7.999,00 €
-16%
9.499,00 €
incl. VAT
free shipping*
This item is a test bike! The bike has a mileage of 99 km!
The Mondraker Crusher RR Translucent Red Carbon 2024 is the flagship of the new Crusher series and is aimed at discerning e-mountain bikers who value state-of-the-art technology, high-quality components and an outstanding design. With its eye-catching "Translucent Red Carbon" finish, it sets new visual standards and impresses technically with a successful combination of lightweight construction, stability and innovative features.
The main frame is made of lightweight yet extremely stable Stealth Air Carbon, while the rear triangle is made of robust Stealth Alloy. This combination of materials ensures a good balance between weight and strength - ideal for tough use on demanding trails and long tours. Mondraker's legendary Forward Geometry guarantees direct, agile handling with plenty of control, even on steep or technical terrain. The geometry has been further optimised for 2024: Reach and stack have grown, the seat angle is steeper, the steering angle slacker - this ensures a modern, trail-orientated riding position and plenty of smoothness on fast descents.
The Mondraker Crusher RR Translucent Red Carbon 2024 is an uncompromising high-end eMTB that impresses with its state-of-the-art technology, sophisticated geometry and elegant design. It is the perfect choice for ambitious trail and enduro riders who are looking for maximum performance, range and riding fun - whether on fast descents, technical trails or long tours in the mountains.
Akku type
720 Wh - Simplo internal 720 Wh G3
Motor type
Shimano STEPS EP801
Display
Shimano EN600
E-Bike Components
| Motor manufacturer | Shimano |
| Motor type | Shimano STEPS EP801 |
| Display | Shimano EN600 |
| Akku | 720 Wh |
| Akku type | Simplo internal 720 Wh G3 |
| Range Externder compatible | Nein |
Gears

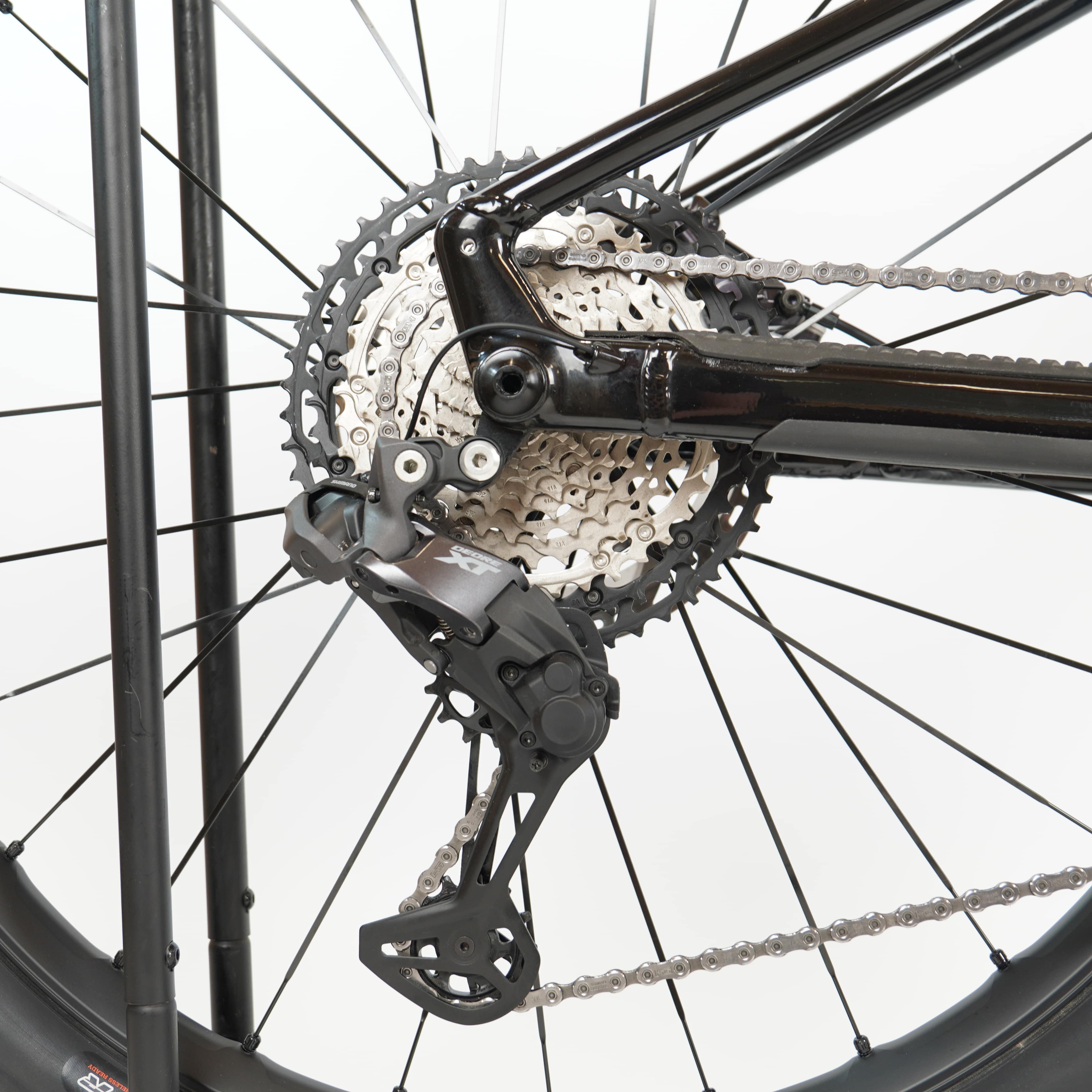

| Rear derailleur | Shimano Deore XT M8150-GS Di2 12-Gang Shadow Plus, Direct Mount |
| Cassette | Shimano Deore XT M8100, 10-51 12-Gang |
| Shifter | Shimano XT Di2 SW-M8150 |
| Derailleur hanger | Mondraker M068 |
Brakes
| Front brake | Shimano Deore XT M8120, 4-Kolben-Bremssattel, MT-800 Ice-Tech 203 mm Center Lock |
| Rear brake | Shimano Deore XT M8120, 4-Kolben-Bremssattel, MT-810 Ice-Tech 203 mm Center Lock |
| Brake levers | Shimano Deore XT M8120 |
Cockpit & Seating
| Stem | ONOFF Krypton FG 30 mm, CNC, 31,8 mm Lenkerdurchmesser |
| Headset | Acros AZF-601 R1 Block Lock 120°, ZS44/28,6 oben, ZS56/40 unten |

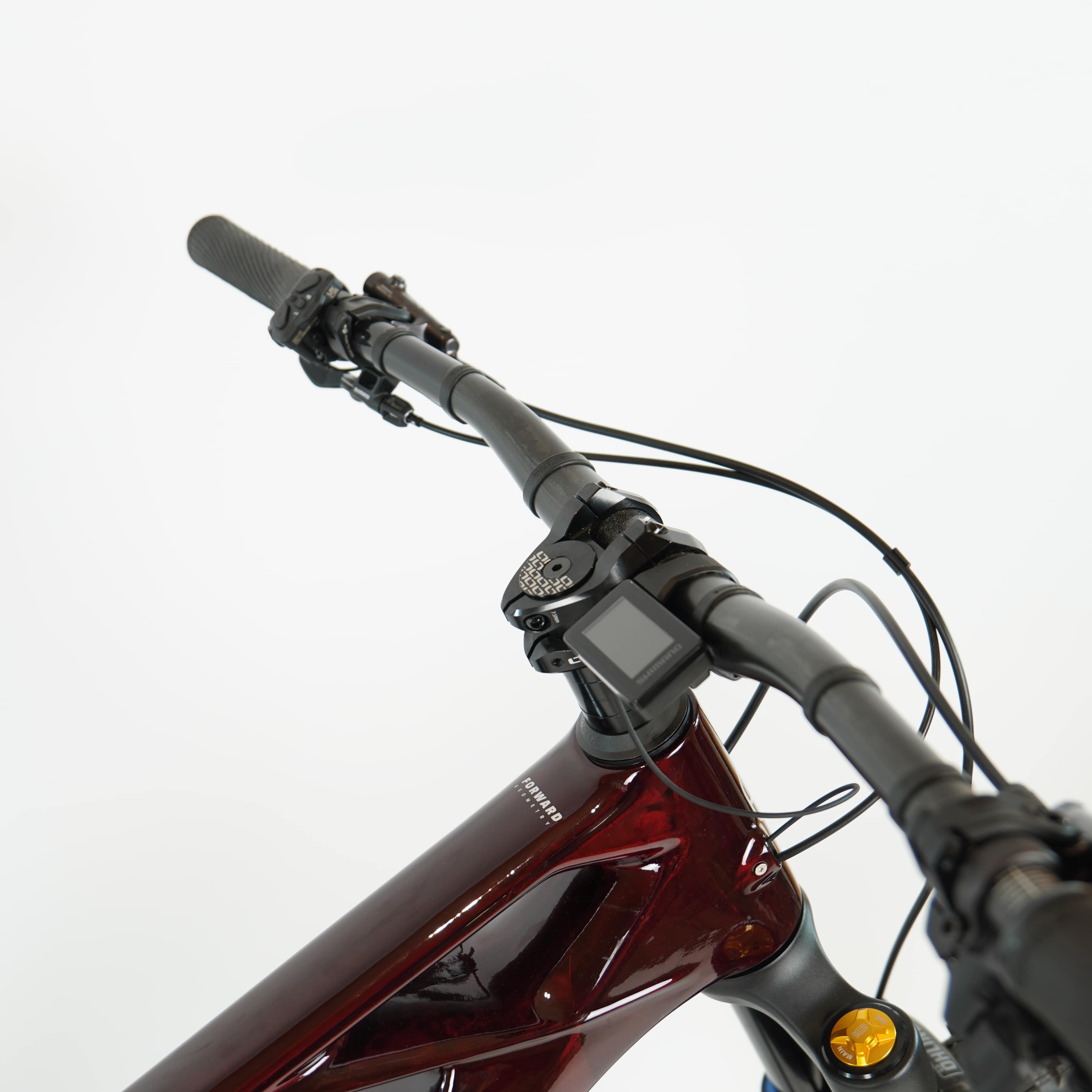

| Handlebar | ONOFF Krypton Carbon 1.0, Erhöhung: 25 mm, Breite: 800 mm, 9° horizontale Kröpfung/Backsweep, 5° vertikale Kröpfung/Upsweep, 31,8 mm Lenkerdurchmesser |
| Handles | ONOFF Desert, Einfach-Lock-On, 135 mm |
| Seatpost | ONOFF Pija Teleskopstütze, interne Zugverlegung, Durchmesser 31,6 mm, Größe S: 405 x 95-125 mm, Größe M: 458 x 120-150 mm, Größe L: 498 x 140-170 mm, Größe XL: 558 x 170-200 mm |

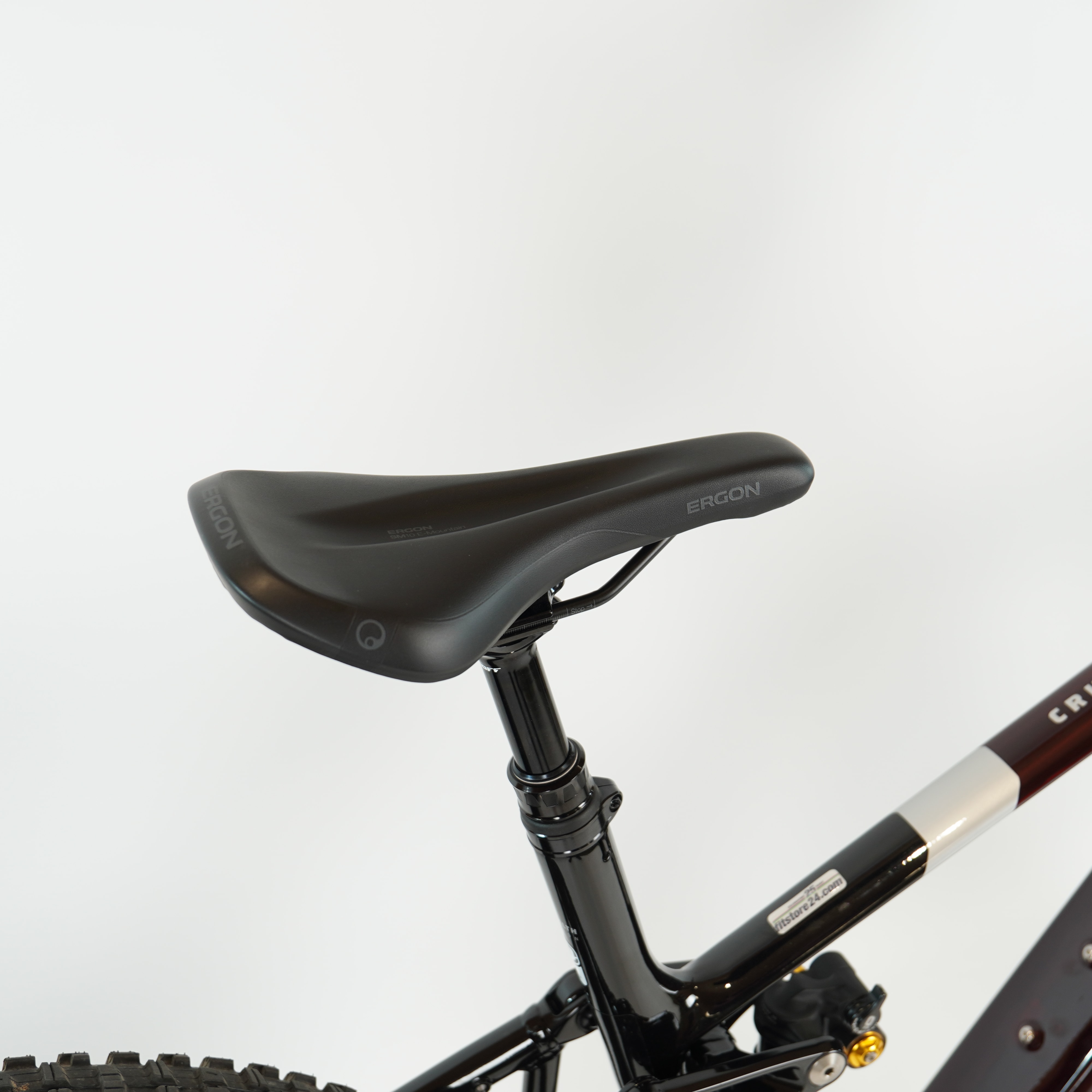

| Saddle | Ergon SM10 |
Frame
| Frame | Crusher Stealth Air Carbon vorderes Dreieck, Stealth Alloy hinteres Dreieck, E-Bike-optimiertes Zero Suspension System, 150 mm Federweg, Forward Geometry, intern integrierter |
| Frame-Material | Carbon |
| Frame size | 49 |
| Wheel-Size | 29" |

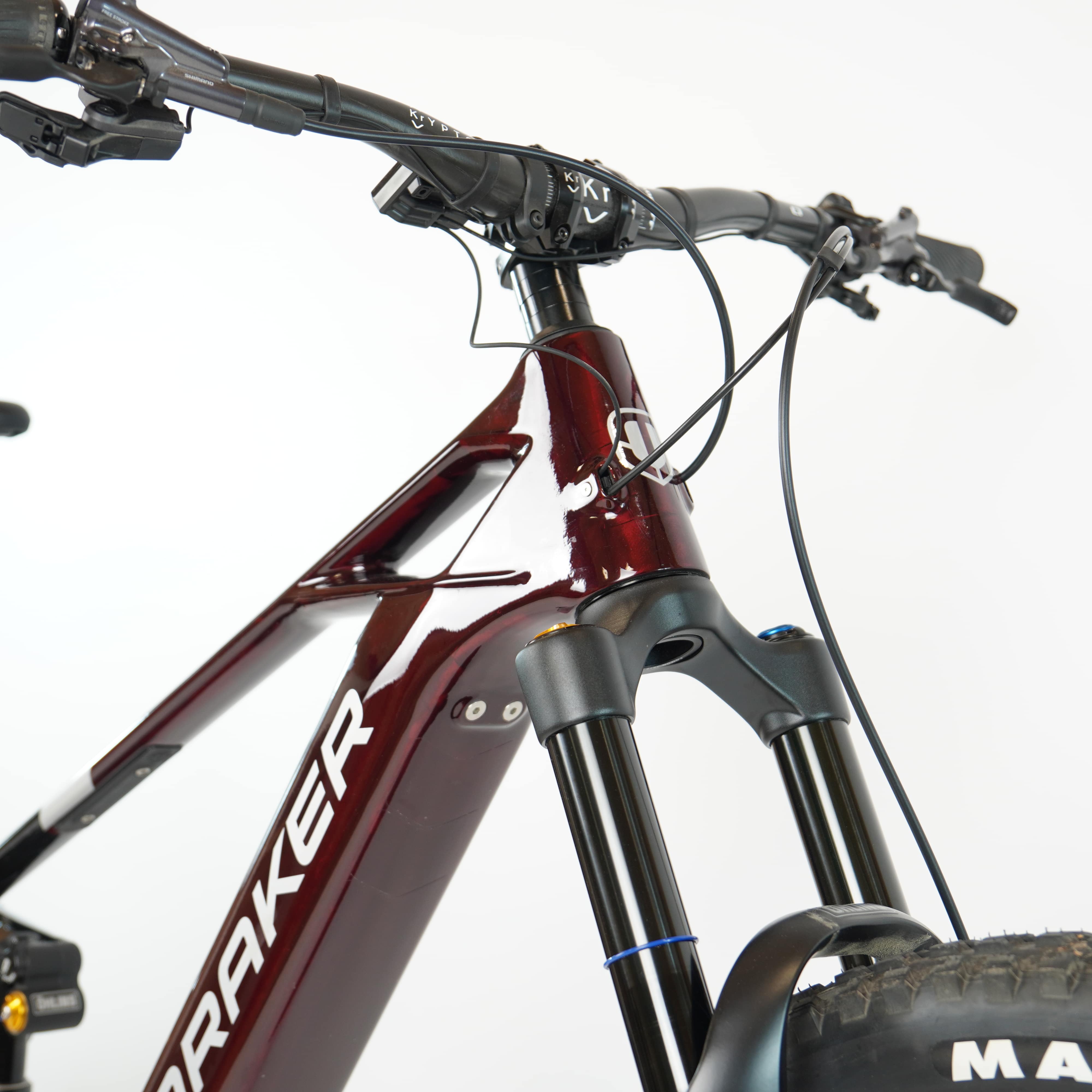

| Fork | Öhlins RXF 38 M.2 29, 160 mm, TTX18 Twin Tube Kartusche, konisches Steuerrohr, 15 x 110 mm Boost-Achse, 44 mm Offset. Einstellungen: High-Speed-Druckstufe über Hebel mit Climb Modus |
| Frametype | Diamant |
Suspension
| Front travel | 160mm |
| Rear shock absorber | Öhlins TTX Air, 205 x 65 mm. Einstellungen: High-Speed-Druckstufe über Hebel mit Climb Modus, Low-Speed-Druckstufe, Zugstufe, Luftvorspannung. Trunnion-Aufnahme oben, untere Buchsen: 25 x 10 |
Drive Unit

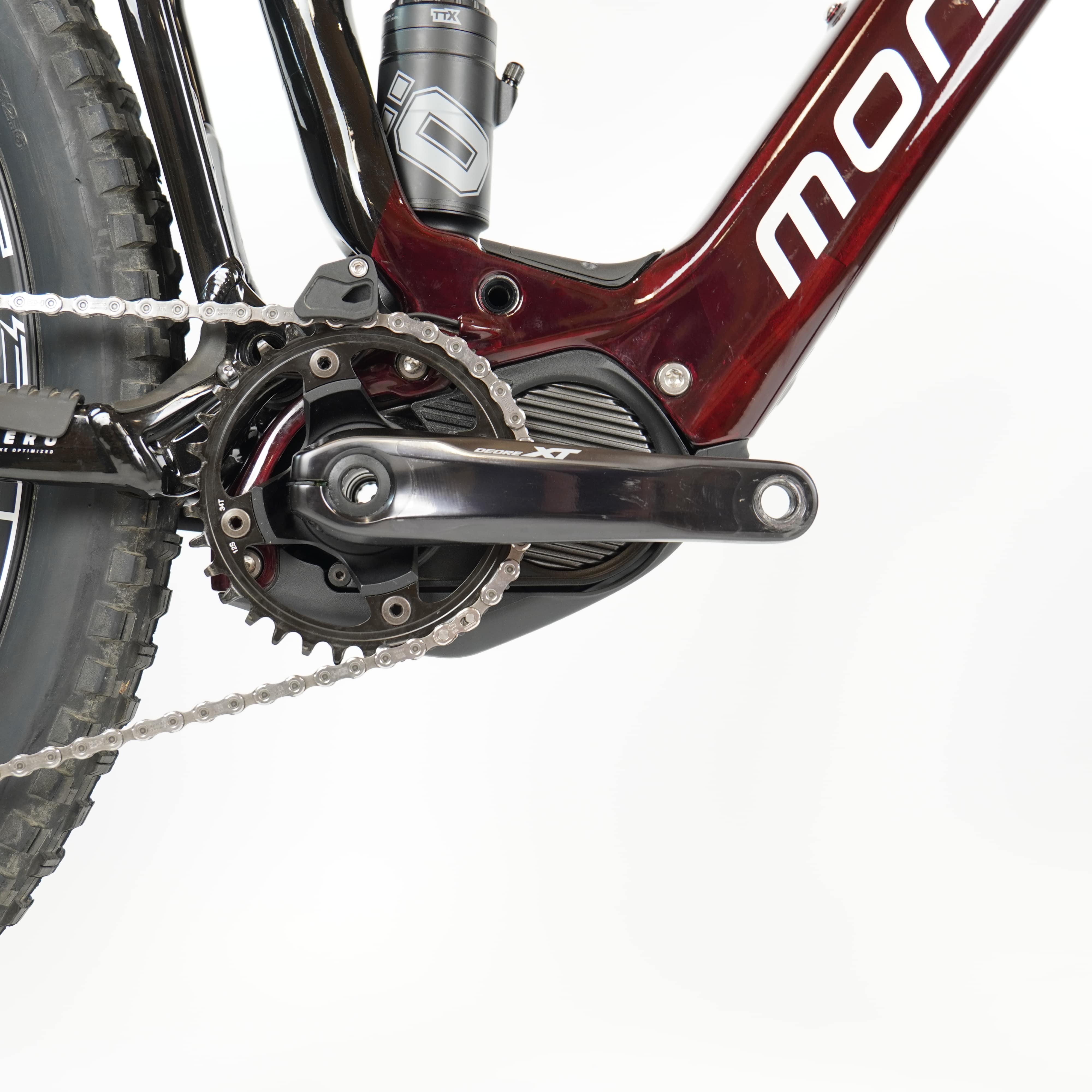

| Crank | Shimano Steps XT FC-8150 E-Bike, 165 mm |
| Chain | Shimano Deore XT M8100 |
| Rims | Mavic E-Deemax S 29, 30 mm Innenbreite, Maxtal geschweißt, PFP, schlauchlos, 28 Speichen |
| Front hub | Mavic, Boost 15x110mm, Center Lock |
| Rear hub | Mavic, Boost 12 x 148 mm, ID360 Freilaufsystem mit Stirnverzahnung, Center Lock, MS-Freilauf |
| Chainrings | Shimano EP801, 34Z, 104 BCD |
| Front tire | Maxxis Minion DHF 29 x 2,6, Tubeless Ready, 3C MaxxTerra-Gummimischung, EXO+ Protection, 120 TPI, Faltwulst |
| Rear tire | Maxxis Minion DHR II 29 x 2,6, Tubeless Ready, 3C MaxxTerra-Gummimischung, EXO+ Protection, 120 TPI, Faltwulst |
| Spokes | Mavic Straight Pull, doppelt konifiziert, kontaktlos gekreuzt |
Other
| Pedals | ohne |
| Model year | 2024 |
| Color | Orange/Rot |
| Weight | 23,4 kg |
| EBikeKategorie | E-Mountainbikes |
