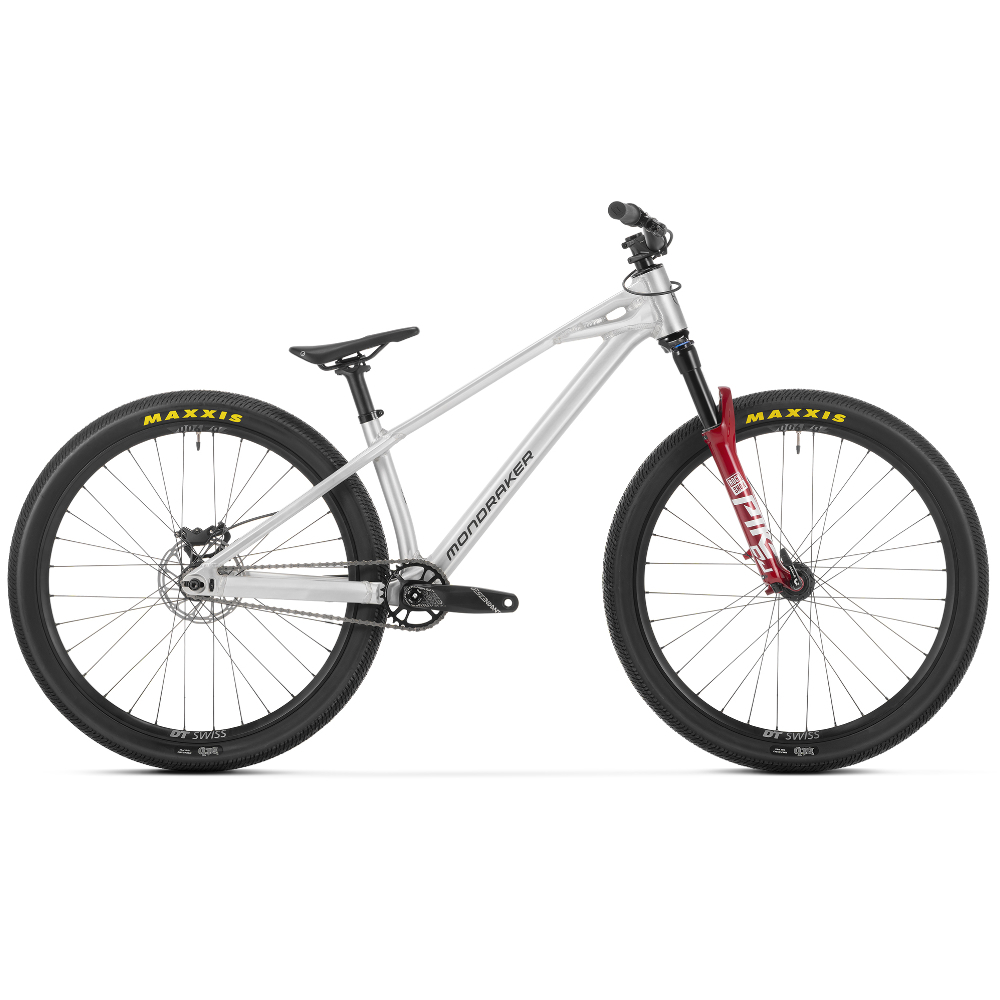

Mondraker KAOZ raw alloy
2.199,00 € incl. VAT free shipping*
Featuring Mondraker’s unmistakable design, the KAOZ is a bike built for creative riding and boasts a number of unique features. Whether you’re jibbing in skatepark bowls, pumping over rollers or launching off lips – the KAOZ is the bike that lets you express yourself through your riding style. With a design language that stays true to Mondraker’s DNA, the KAOZ is a dirt jump bike featuring precision engineering and special features. From the headset to the dropouts, every part of the frame has been carefully thought through. The window behind the head tube is more than just a design feature – it’s a stiffening strut that eliminates unwanted flex. The steering remains precise and direct at all times.
Brakes
| Rear brake | Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake levers | Sram DB8, tool reach adjust, lever pivot bushings |
Cockpit & Seating
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Onoff custom ZS56/ZS56, 1-1/8", 1.2" head tube |
| Handlebar | Onoff S6 1.5 7050 alloy, rise:38mm , width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore |
| Handles | Onoff Desert Pro, CNC lock-on, 135mm. |
| Seatpost | Onoff S3 DH Alloy, diameter 31.6mm, length 300mm |
| Saddle | Ergon SM10 DH Black |
Frame
| Frame | Kaoz 6061 Alloy Stealth Evo, 26" Forward Geometry, BSA73,10x135mm rear axle, Sliding Dropouts, Single Speed |
| Frame-Material | Aluminium |
| Wheel-Size | 26" |
| Fork | RockShox PIKE DJ, 26",, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset. |
| Frametype | Diamant |
Suspension
| Front travel | 100mm |
Drive Unit
| Crank | Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49´0 |
| Chain | Sram PC-1, Singlespeed, PowerLock 1s |
| Rims | DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes |
| Front hub | DT Swiss 370, Boost 15x100mm, IS 6 bolts |
| Rear hub | DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts |
| Chainrings | Sram Eagle 30T, steel, X-Sync 2 |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73mm |
| Front tire | Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable |
| Rear tire | Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable |
| Spokes | DT J-bend spokes, DT competition®, black |
Other
| Pedals | ohne |
| Model year | 2027 |
| Color | Silber |
| Gender | Unisex |
