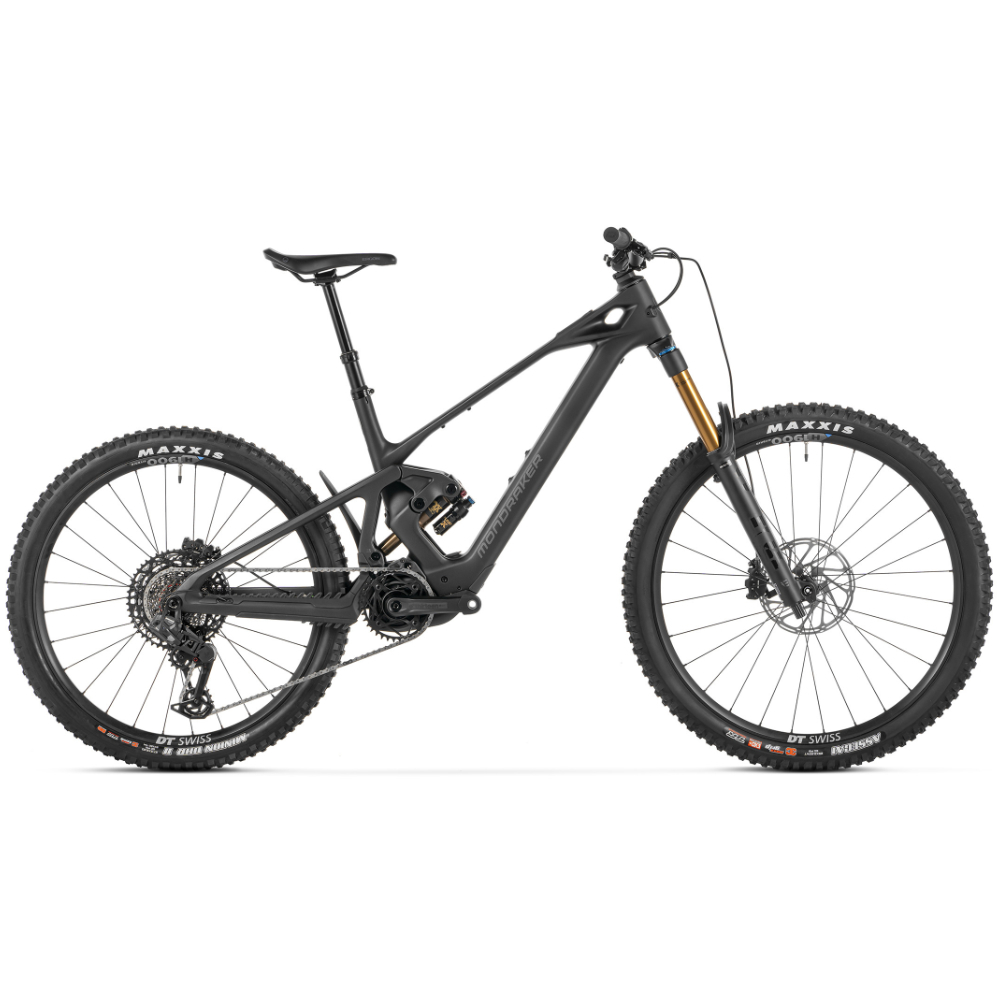

Mondraker Zendit RR vortex grey

8.499,00 € incl. VAT free shipping*


Please select your desired variation to put the product into cart.

The flagship among the Mondraker E-MTBs. Thanks to state-of-the-art frame design, ZERO suspension and the seamless integration of the powerful new Avinox drive unit, it reaches a whole new level of performance. Designed for aggressive riding on the toughest climbs and descents, it is the result of over eleven years of E-MTB development and the Mondraker Factory Racing development team's uncompromising approach to suspension performance.

ZENDIT is made for those who see mountains as a stimulus, a place to push boundaries, a bike with character, energy and an almost instant response to any challenge. When the gradient becomes steeper, the speed increases and the terrain becomes unpredictable, everything comes together. The ZENDIT unfolds its full potential.

Discover freedom with performance that is hard to tame and turn every ride into an even more intense experience. Because it's not just about getting further, it's about doing so with the confidence and determination of someone who knows they're in control, even in the most demanding situations.

Rather than adapting an existing platform, the ZENDIT frame has been specifically designed to incorporate the most advanced motor system on the market. This frame is extremely advanced in both design and manufacturing. For the first time, 6-axis CNC machines are used to drill and finish the frame instead of manufacturing the frames by hand.

Product details
Akku type

800 Wh - Avinox 800Wh Battery

Motor type

Avinox Drive Unit M2S

Display

Avinox DP100 Display

E-Bike Components

Motor manufacturer Avinox
Motor type Avinox Drive Unit M2S
Display Avinox DP100 Display
Akku 800 Wh
Akku type Avinox 800Wh Battery
Charger Avinox 4A Charger
Steuergeraet Avinox BC100 Wireless Controller (L&R)

Gears

Rear derailleur Sram S1000 Eagle AXS, T-Type, 12s
Cassette Sram XS 1270, 10-52T, T-Type, 12s
Shifter Sram Eagle AXS Pod Controller w/discrete clamp, 12s
Derailleur hanger UDH compatible

Brakes

Front brake Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Rear brake Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Brake levers Sram Maven Base stealth lever architecture, tools-free reach adjust

Cockpit & Seating

Stem Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.
Headset Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Handlebar Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Handles Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
Saddle Ergon SM10 E-Mountain Black.

Frame

Frame Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube
Frame-Material Carbon
Wheel-Size Mullet
Fork Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Frametype Diamant

Suspension

Front travel 170mm
Rear shock absorber Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Dämpfer Hardware CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers

Drive Unit

Crank e*thirteen Helix Core e*spec alloy. All sizes: 155mm
Chain Sram GX Eagle T-Type, 12s, w/Powerlock
Rims DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Front hub DT Swiss 370, 15x110mm Boost, Disc IS (6-bolt).
Rear hub DT Swiss 370, 12x148mm Boost, Disc IS (6-bolt), Sram XD Steel (SSRAM) freehub body, Ratchet LN 18 freehub system.
Chainrings Sram XX Eagle 36T T-Type, 104BCD, steel, CL55
Front tire Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Spokes DT Hybrid I Straightpull, w/DT ProLock Squorx ProHead aluminum nipples, Three-cross (1:1) pattern.

Other

Pedals ohne
Model year 2027
Color Grau
Weight 22.8 Kg
EBikeKategorie E-Mountainbikes
Gender Unisex
Recommended Pedals
MPN: FS0049387
010.27193
