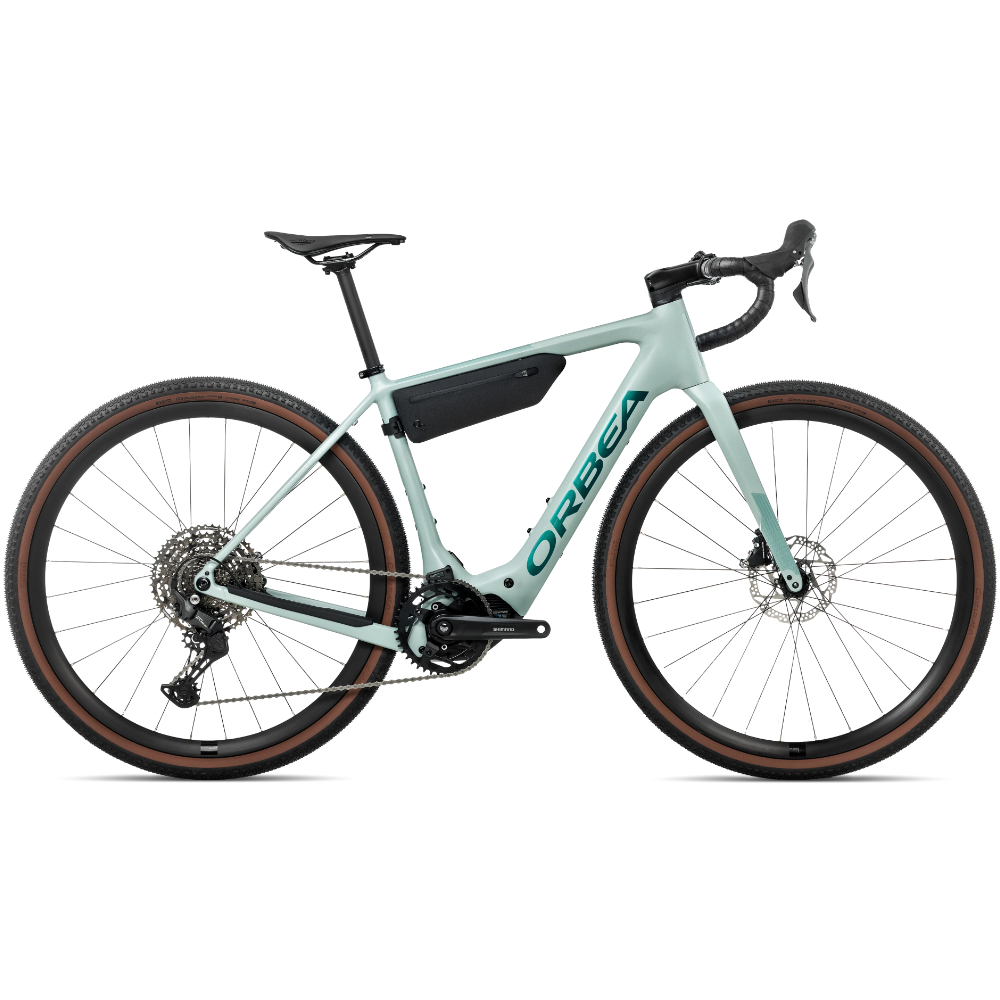

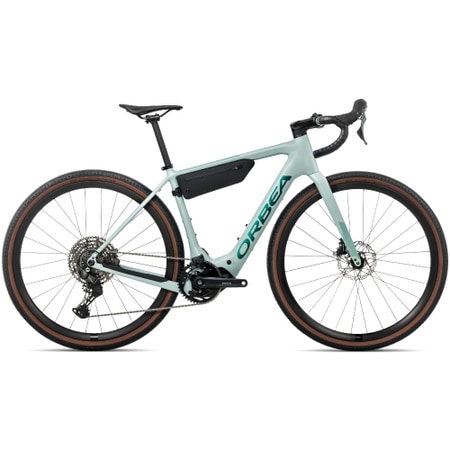

Orbea Denna H40 Blue Stone
3.999,00 € incl. VAT free shipping*
The Orbea Denna H40 is a versatile e-gravel bike designed for touring on tarmac and unpaved tracks. The Shimano EP600 motor delivers powerful assistance and is powered by a fully integrated 420 Wh battery. The aluminium frame combines neat internal cable routing with a lightweight Orbea Denna OMR full-carbon fork.
The Shimano Cues U6000 11-speed groupset, with a wide gear range from 11 to 50 teeth, is ideal for varied routes and challenging climbs. Shimano RS405 hydraulic disc brakes ensure controllable braking performance. The 28-inch wheels are tubeless-ready and fitted with 45 mm-wide Pirelli Cinturato Gravel H TLR tyres, which offer comfort and control on varied terrain.
A compact OC Gravel handlebar, the carbon seatpost and the Selle San Marco Shortfit off-road saddle round off the touring-ready specification.
Akku type
420 Wh - Orbea Internal 420Wh
Motor type
Shimano EP600
E-Bike Components
| Motor manufacturer | Shimano |
| Motor type | Shimano EP600 |
| Akku | 420 Wh |
| Akku type | Orbea Internal 420Wh |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Gears
| Rear derailleur | Shimano Cues U6000 GS Shadow |
| Cassette | Shimano CS-LG400 11-50t 11-Speed |
| Shifter | Shimano U6030 |
| Kettenführung | Orbea eBike chainguide |
Brakes
| Brake system | Shimano RS405 Hydraulic Disc |
Cockpit & Seating
| Stem | OC Road Performance RP23, -5º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar | OC Gravel GR31, Reach 70, Drop 110 |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 0 |
| Saddle | Selle San Marco Shortfit 2.0 Start Up Off Road |
Frame
| Frame | Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing. |
| Frame-Material | Aluminium |
| Wheel-Size | 28" |
| Fork | Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Frametype | Diamant |
Drive Unit
| Crank | Alloy EP8 42t |
| Chain | Shimano LG500 |
| Front hub | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Rear hub | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Set of tires | Pirelli Cinturato™ GRAVEL H Classic 700X45c TLR |
| Wheelset | Alloy, Tubeless, 700c, 21c |
Other
| Pedals | ohne |
| Model year | 2027 |
| Color | Blau |
| EBikeKategorie | E-Gravelbikes |
| Gender | Unisex |
