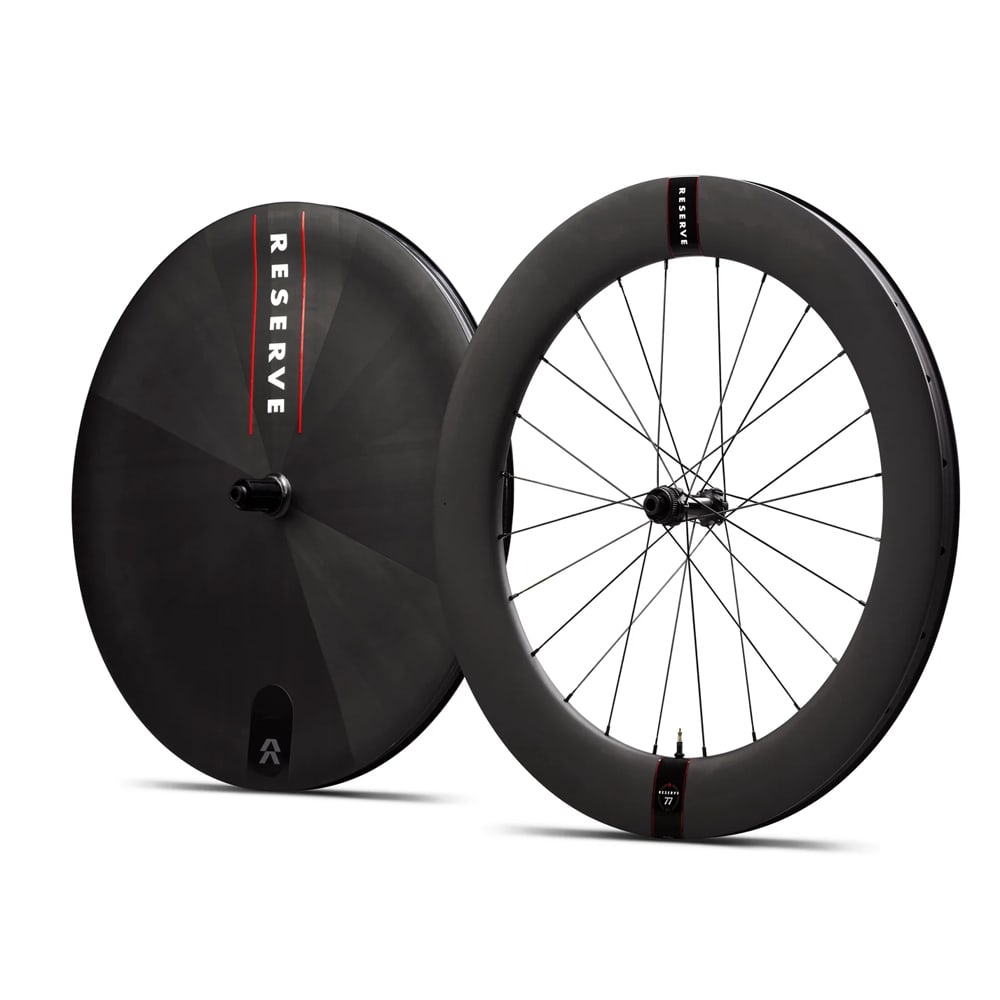

Reserve wheelset 77TA/Disc 700c DT 240 XDR/HG CL

In 2022, things went from strength to strength when the Jumbo Visma World Tour Team tackled the first stage of the Tour de France with the Reserve 77|Infinity Disc wheelset. The highlight was the individual time trial on stage 20, when Wout Van Aert in the green jersey and Jonas Vingegaard in the yellow jersey took a double victory, leaving all the other favourites behind. Now this wheelset is available for you. A 77mm front wheel with a high cross-section and a rear wheel with a disc combine the best of aerodynamics, stiffness and speed.

Mixed profile

The different profile at the front and rear of the 77|Infinity Disc wheelset was developed to create a perfect balance between stability and aerodynamics. A lower profile at the front reduces the reaction to crosswinds, while the disc minimises drag.

Race tested by Jumbo Visma

Race-tested at the highest level: Wout van Aert from Team Jumbo Visma wins the 20th stage of the Tour de France on the Reserve 77|Disc wheelset and Jonas Vingegaard in the yellow jersey finishes second.

Integrated 240 hub

The Infinity Disc rear wheel is a pure disc wheel with a laminated 240 rear hub, which is available for either SRAM XDR or Shimano HG freewheels. Both the front and rear rims have an inner width of 22mm and are suitable for tyres up to 28mm.

TECHNICAL DATA:

• Developed for: Time trial, triathlon, track racing
• Inner width: 22mm
• Outer width: 31mm (VR), 30mm (HR)
• Rim height: 77mm (VR), disc (HR)
• Recommended tyre width: 25 - 28mm
• Number of spokes: 24
• Rim weights: 565g (front wheel), 1190g (complete rear wheel)
• Brake disc standard: Centrelock
• Installation dimensions: 100x10mm (front wheel) / 142x12mm (rear wheel)
