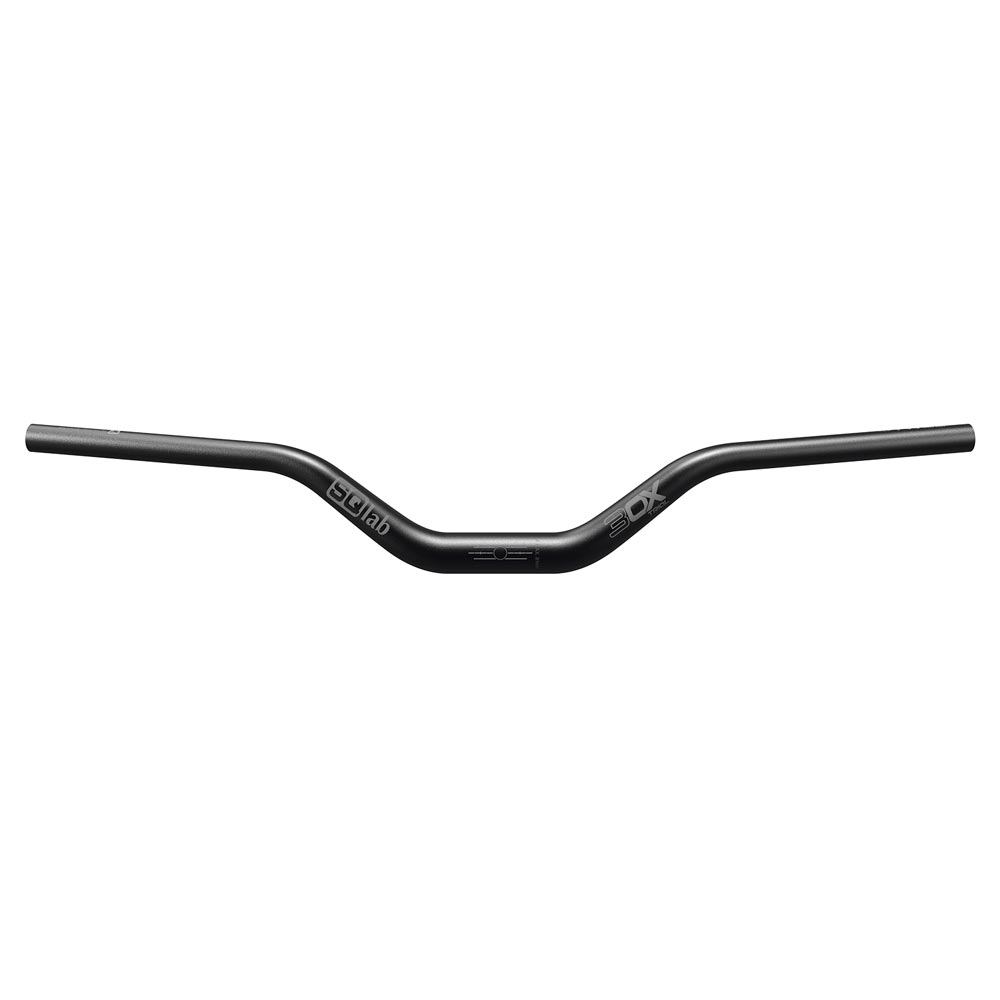

SQ-Lab handlebars 3OX Trial

In trials, the choice of handlebars is crucial for handling. During the development phase, we made sure that the handlebars were as stable and light as possible.

The 3OX Trial ltd. Team significantly increases the front end with its 84 mm rise compared to normal handlebars and is therefore the ideal partner for the 8OX Trial ltd. Team stem. The cockpit height resulting from this combination makes it possible to effortlessly shift the body's centre of gravity over the rear wheel and thus generate the right "pop" for bunny hops and other tricks.

9° backweep and 5° upsweep ensure a kink-free transition between forearm and hand as well as an elbow position that enables an active riding style. This means that the hard impacts that occur when riding trials can be cushioned as gently as possible.

TECHNICAL DATA:

• Weight in g: approx. 330
• Material: Aluminium 7050
• Width in mm: 730
• Maximum shortenable width in mm: 690
• Rise in mm: 84
• Backsweep in °: 9
• Upsweep in °: 5
• Downsweep in °: 0
• Clamping in mm: 31.8
• Clamp width of the stem in mm: MIN. 40 - MAX. 58
• Maximum tightening torque in nm: 8
• Maximum permissible system weight in kg: 120
