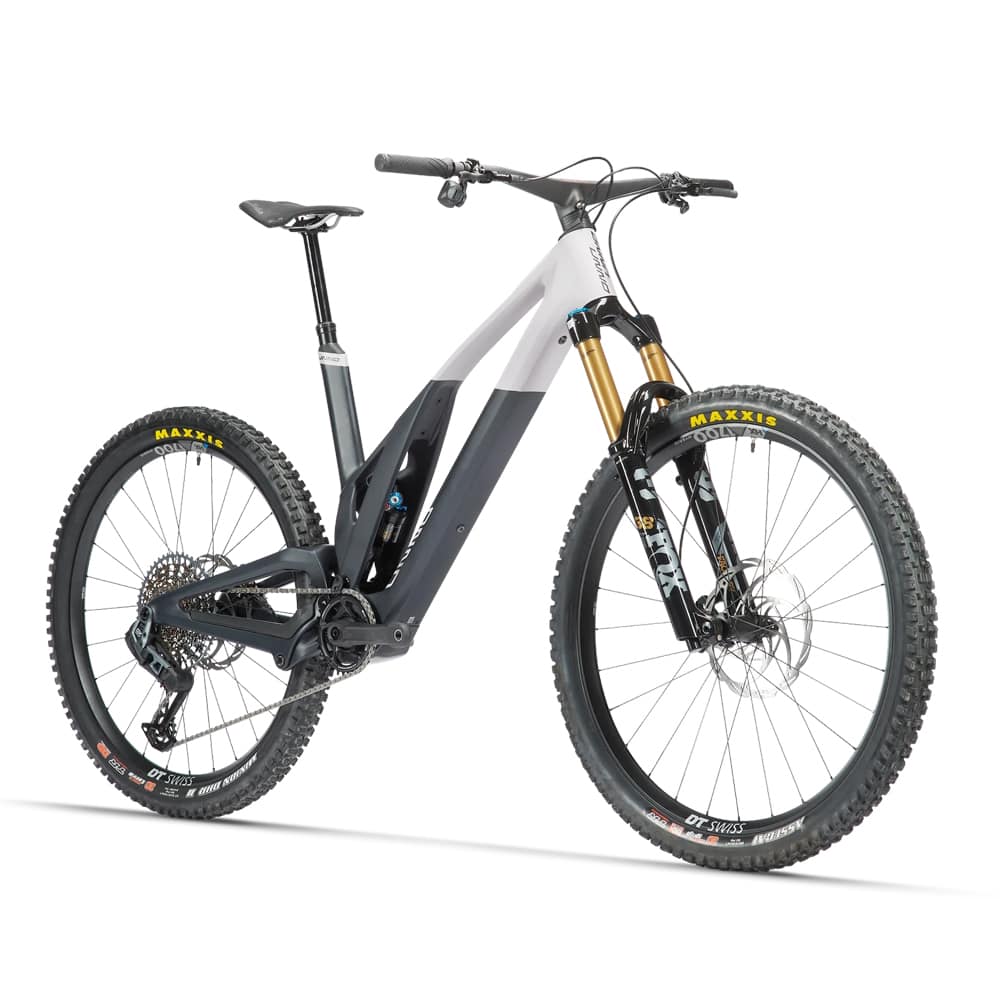

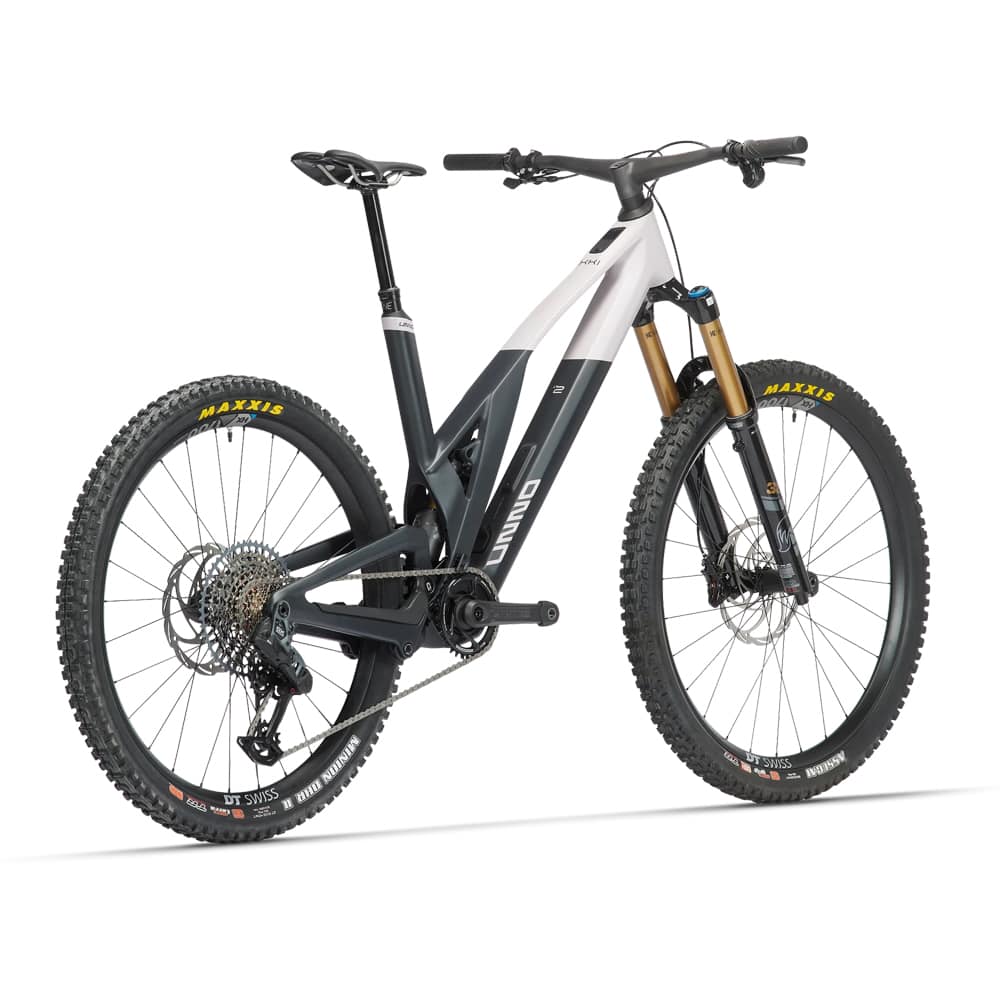

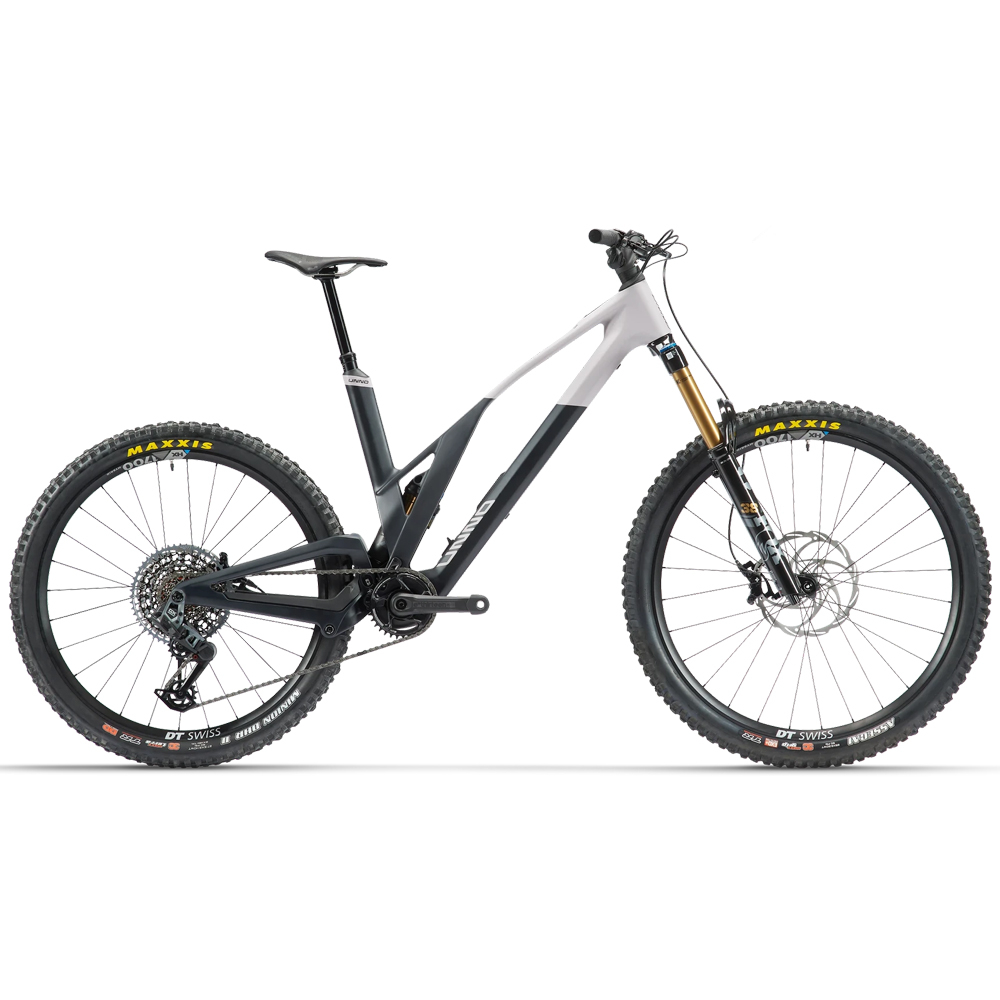

The UNNO IKKI Race is a thoroughbred trail bike developed for demanding riders who require top performance both in races and on fast, technical trails. This bike impresses with uncompromising performance, maximum precision and a set-up that is specially designed for speed and control. The UNNO IKKI Race is aimed specifically at ambitious riders and racers who want to push the boundaries both in competitions and on their favourite trails.
Akku type
360 Wh - TQ 360Wh Integrated.
Motor type
TQ HPR50 With Harmonic PingRing. 50Nm power. 300W power. Connection ready with ANT+ app.
Display
TQ HPR50 Display Integrated in top tube.
E-Bike Components
| Motor manufacturer | TQ |
| Motor type | TQ HPR50 With Harmonic PingRing. 50Nm power. 300W power. Connection ready with ANT+ app. |
| Display | TQ HPR50 Display Integrated in top tube. |
| Akku | 360 Wh |
| Akku type | TQ 360Wh Integrated. |
| Steuergeraet | TQ HPR50 Remote Compact and ergonomic design, accessible from the grip. |
Gears
| Rear derailleur | SRAM GX AXS T-Type 12 speed. AXS Wireless. T-type. |
| Cassette | SRAM GX T-Type XS-1275. 12 speed. |
| Shifter | SRAM AXS Pod 12 speed. Wireless. |
Brakes
| Brake system | Formula Cura 4 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose / Formula Monolithic F: 220mm R: 203mm |
Cockpit & Seating
| Headset | ACROS Block-Lock 135º w/ CANE CREEK spacers |
| Handlebar | DEUX Enduro Integrated With integrated and hidden wedge. Internal fork tube clamp. 800mm width. 40mm length. 20mm rise. |
| Seatpost | OneUp V3 Mechanical. Travel: 120mm for S1, 150mm for S2 and 180mm for S3. |
| Saddle | Selle Italia SLR Boost. |
Frame
| Frame | Unno IKKI Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings |
| Frame-Material | Carbon |
| Frame size | 49 |
| Wheel-Size | Mullet |
| Fork | Fox 38 Factory 170mm travel. Kashima coating. Grip X2 damper. Adjustments: HSC, LSC, HSR, LSR. 44mm offset. |
| Frametype | Diamant |
Suspension
| Front travel | 170mm |
| Rear shock absorber | Fox Float X2 Factory 230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR. |
Drive Unit
| Crank | SRAM GX T-Type 170mm length. 34t chainring. |
| Chain | SRAM GX T-Type 12 speed. Flat top. |
| Chainrings | E*Thirteen E*spec Aluminium, 34T, TQ Direct Mount. |
| Front tire | Continental Kryptotal-F Enduro 29x2.40. Foldable skin SL. Black/Black. |
| Rear tire | Continental Kryptotal-R Enduro 27.5x2.40. Foldable skin SL. Black/Black. |
| Wheelset | DT Swiss HX1700 Spline Mullet 29" Front and 27.5" Rear. E-Bike specific. DT 350 hub. 30mm inner width. |
Other
| Pedals | ohne |
| Model year | 2025 |
| Color | Schwarz |
| Weight | 18,9 kg |
| EBikeKategorie | E-Mountainbikes |
| Gender | Unisex |
