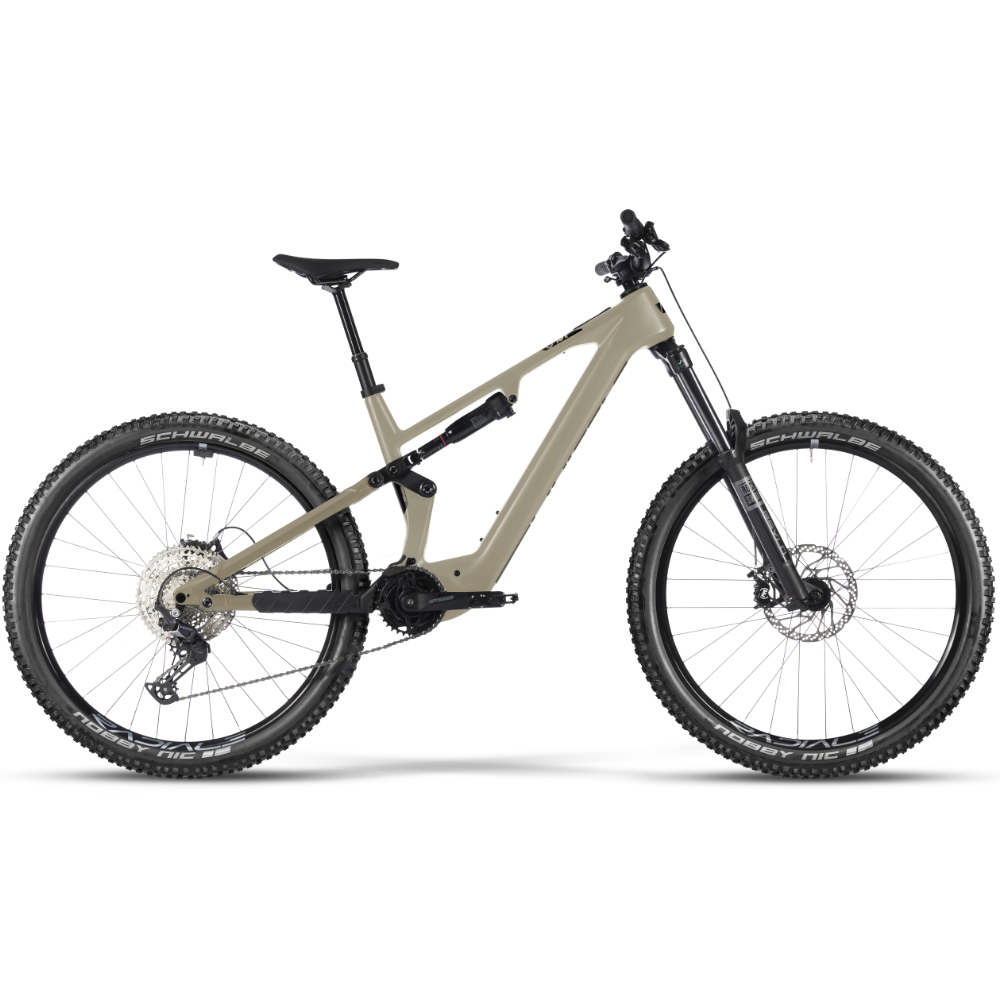

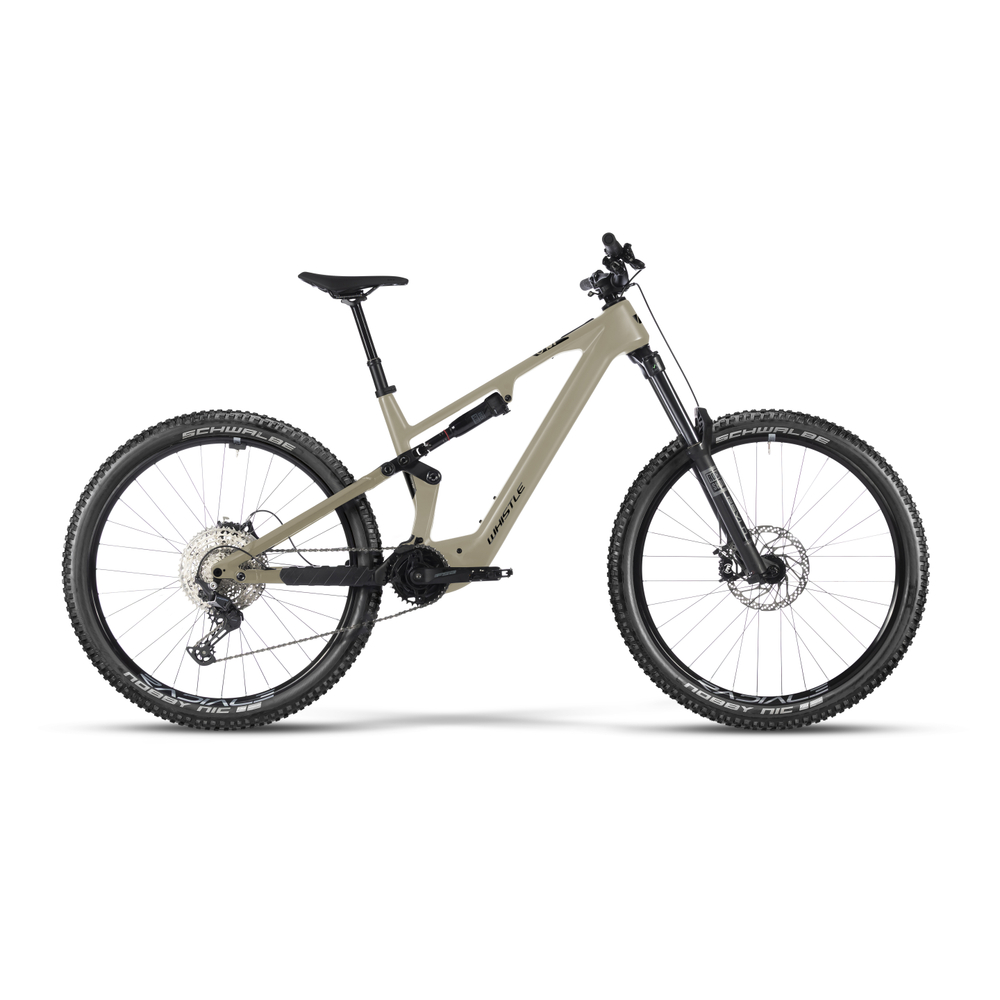

Whistle DS06 Avinox XT/Deore 800 Wh 2026
5.199,00 € incl. VAT free shipping*
The WHISTLE DS06 stands for modern e-mountain biking at the highest level. Developed for demanding trails, technical descents and sporty tours, this high-quality fully combines a striking look with first-class performance and a versatile range of use.
The modern frame with full-suspension construction ensures a confident ride, smooth running and plenty of control in demanding terrain. Whether flowing trails, rough passages or steep descents - the DS06 impresses with balanced handling, high stability and noticeable precision.
The high-quality equipment underlines the premium claim of this bike: a high-performance chassis, large 29-inch wheels, grippy tyres, precise shifting components and powerful disc brakes make the WHISTLE DS06 a reliable companion for ambitious riders. The modern geometry, integrated cable routing and lowerable seat post round off the overall package both functionally and visually.
The WHISTLE DS06 is the right choice for anyone looking for a sporty, high-quality E-Enduro with strong trail DNA - made for riding fun, control and performance at a high level.
Akku type
800 Wh - Avinox 800Wh Battery
Motor type
Avinox Drive Unit M2S
Display
Avinox DP100 Display
Maximum power in an ultra-compact package
The Avinox M2S combines enormous power with an exceptionally compact and lightweight design. With up to 150 Nm in Boost mode, intelligent power delivery and advanced thermal management, it is built for demanding climbs and aggressive e-MTB riding.
E-Bike Components
| Motor manufacturer | Avinox |
| Motor type | Avinox Drive Unit M2S |
| Display | Avinox DP100 Display |
| Akku | 800 Wh |
| Akku type | Avinox 800Wh Battery |
| Steuergeraet | Avinox BC100 Wireless Controller |
Gears
| Rear derailleur | Shimano XT RD-M8100 SGS 12-speed |
| Cassette | Shimano Deore CS-M6100-12 10-51T. |
| Shifter | Shimano Deore SL-M6100-R |
Brakes
| Brake system | Shimano BL-M4100 / BR-MT420 203 mm |
Cockpit & Seating
| Stem | Kalloy AS033 – 0° - Extantion 35mm – Barbore 35mm (S & M) | Kalloy AS033 – 0° - Extantion 50mm – Barbore 35mm - L |
| Headset | FSA Head set CRII Dual N. 80/62 - Integrated cables |
| Handlebar | Kalloy HB-353 – 780 mm – BarBore: 35 – Rise: 35 |
| Handles | Cassano Progrip black 130mm |
| Seatpost | A1 31.6mm 125mm RM04 - S & M | A1 31.6mm 150mm RM04 - L |
| Saddle | Selle Royal SRX Vacum |
Frame
| Frame | Carbon/Alloy Full suspended – Integrated cables |
| Frame-Material | Carbon/Aluminium |
| Wheel-Size | 29" |
| Fork | RockShox FS PSYLO Silver RC Crown Adjust 160 mm |
| Frametype | Diamant |
Suspension
| Front travel | 160mm |
| Rear shock absorber | Rock Shox - RS Delux Select R 230X65 |
Drive Unit
| Crank | FSA E-Bike Diecast Crankset CK-320 – ISIS / 165mm |
| Chain | Shimano CN-M7100 126 Links |
| Rims | Radiale Rims W30 – 29” - Black anodized |
| Front hub | Radial 6 Holes DISC 32H |
| Rear hub | Radiale MS 6 Holes DISC 12-Speed for 12 mm Thru Type Axle |
| Chainrings | FSA Steel Chainring 34T Megatooth - BCD104 |
| Set of tires | Schwalbe NOBBY NIC Performance 65-622 |
Other
| Pedals | Pedal for full suspended e-Bike |
| Model year | 2026 |
| Color | Beige/Braun |
| Weight | 24 kg |
| EBikeKategorie | E-Mountainbikes |
| Gender | Unisex |
Smart navigation. Brilliant OLED. Fully connected.
The Avinox DP100 combines a brilliant OLED display with intelligent navigation, extensive ride data and advanced connectivity. Its compact 2-inch screen keeps everything important clearly in view while maintaining a clean and integrated cockpit.
