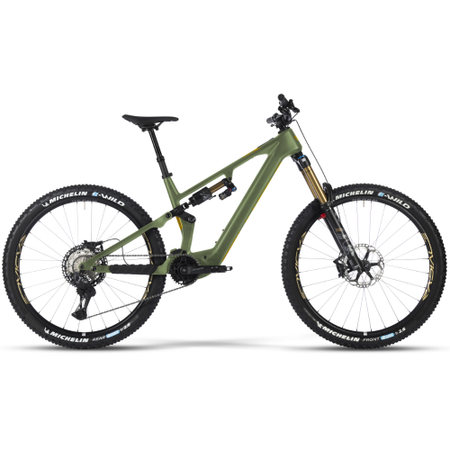

Whistle WC06 Avinox Factory Di2 800 Wh 2026

7.499,00 € incl. VAT free shipping*


Please select your desired variation to put the product into cart.

The WHISTLE WC06 stands for sporty dynamics, modern technology and a high-quality riding experience on demanding routes. Developed for ambitious riders, this e-mountainbike impresses with a successful combination of performance, control and high-quality equipment.

The modern frame ensures direct, stable handling and provides a high level of safety even on technically demanding terrain. Whether fast trail passages, challenging climbs or long tours - the WC06 is designed for versatile use and offers confident, precise handling.

The first-class equipment emphasises the premium claim of this bike: high-quality suspension components, powerful brakes, precise shifting technology and robust wheels ensure reliability and riding enjoyment at a high level. The modern geometry and clearly integrated look round off the overall package perfectly.

The WHISTLE WC06 is the ideal choice for anyone looking for a sporty, high-quality e-mountainbike with a strong character and versatile range of use - made for performance, comfort and riding fun on any trail.

Product details
Akku type

800 Wh - Avinox 800Wh Battery

Motor type

Avinox Drive Unit M2S

Display

Avinox DP100 Display

Avinox M2S Drive Unit
Avinox M2S Drive Unit | Boost Mode

Maximum power in an ultra-compact package

The Avinox M2S combines enormous power with an exceptionally compact and lightweight design. With up to 150 Nm in Boost mode, intelligent power delivery and advanced thermal management, it is built for demanding climbs and aggressive e-MTB riding.

130 Nm
Continuous torque
150 Nm
Boost mode
2.59 kg
Drive unit
✓ Up to 1,300 W peak power
Massive power reserves for steep climbs and demanding terrain. (1,500 W peak power with systems equipped with a 700 Wh battery)
✓ Powerful Boost mode
Up to 150 Nm of torque for up to 60 seconds when maximum support is needed.
✓ Lightweight & compact
Only approx. 2.59 kg despite its exceptionally high performance.
✓ Quiet & efficient
Dual-meshing gears and optimized cooling provide smooth, quiet and sustained power.

E-Bike Components

Motor manufacturer Avinox
Motor type Avinox Drive Unit M2S
Display Avinox DP100 Display
Akku 800 Wh
Akku type Avinox 800Wh Battery
Steuergeraet Avinox BC100 Wireless Controller (L&R)

Gears

Rear derailleur Shimano Deore XT Di2 RD-M8250 SGS 12-speed
Cassette Shimano Deore XT CS-M8200-12 10-51T.
Shifter Shimano Deore Di2 SW-M6250-IR

Brakes

Brake system Shimano Deore XT BL-M8200 / BR-M8220 | SM-RT86 203 mm

Cockpit & Seating

Stem Kalloy AS033 – 0° - Extantion 35mm – Barbore 35mm (S & M) | Kalloy AS033 – 0° - Extantion 50mm – Barbore 35mm - L
Headset FSA Head set CRII Dual N. 80/62 - Integrated cables
Handlebar Kalloy HB-353 – 780 mm – BarBore: 35 – Rise: 35
Handles Cassano Progrip black 130mm
Seatpost A1 31.6mm 125mm RM04 (S & M) | A1 31.6mm 150mm RM04 - L
Saddle Selle Royal SRX Vacum

Frame

Frame Carbon Full suspended – Integrated cables
Frame-Material Carbon
Wheel-Size 29"
Fork Fox 38 K FLOAT F-S E-Optimized 170 mm Grip X
Frametype Diamant

Suspension

Front travel 170mm
Rear shock absorber Fox Float X2 | Factory Series | Chassis Option: EVOL | LSR, HSR, 2 Pos Lever, LSC, HSC | Metric 230/65

Drive Unit

Crank FSA E-Bike Diecast Crankset CK-320 – ISIS - 165mm
Chain Shimano CN-M7100 126 Links
Rims Radiale Rims X30 – 29” - Black anodized
Front hub Radiale 6 Holes Disc 32H
Rear hub Radiale MS 6 Holes Disc
Chainrings FSA Steel Chainring 34T Megatooth BCD104
Front tire Michelin e-Wild Front Competition Line, 29"x2.60", Tubeless ready
Rear tire Michelin e-Wild Rear Competition Line, 29"x2.60", Tubeless ready

Other

Pedals Pedal for full suspended e-Bike
Model year 2026
Color Grün
Weight 22,8 kg
EBikeKategorie E-Mountainbikes
Gender Unisex
Avinox DP100 Control Display
Avinox DP100 | Smart Control Display

Smart navigation. Brilliant OLED. Fully connected.

The Avinox DP100 combines a brilliant OLED display with intelligent navigation, extensive ride data and advanced connectivity. Its compact 2-inch screen keeps everything important clearly in view while maintaining a clean and integrated cockpit.

2.0"
OLED display
800 nits
Brightness
65 W
USB-C PD
✓ Smart turn-by-turn navigation
Route guidance, turn instructions and off-course alerts are displayed directly on the bike.
✓ 4G LTE & integrated GNSS
Advanced connectivity and satellite positioning support connected features and precise navigation.
✓ Up to 65 W USB-C fast charging
Compatible smartphones, lights and other devices can be powered directly from the display.
✓ Personalized ride data
Customize your dashboard in the Avinox Ride app and keep the riding information that matters most in view.
Shimano DEORE XT Di2
Shimano DEORE XT Di2 | Electronic Shifting

Lightning-fast shifts. Stay in the flow.

Shimano DEORE XT Di2 combines proven XT durability with electronic precision. Fast, accurate gear changes and HYPERGLIDE+ deliver confident shifting performance even under high load.

12-speed
Drivetrain
10–51 T
Gear range
Di2
Electronic
✓ Precise shifting under load
HYPERGLIDE+ enables fast and controlled gear changes even under high drivetrain load.
✓ Automatic Impact Recovery
After an impact, the rear derailleur automatically returns to its original position.
✓ AUTO SHIFT & FREE SHIFT
On compatible Shimano e-bike systems, automatic shifting and gear changes without pedaling are possible.
MPN: FS0047353
0116889900
