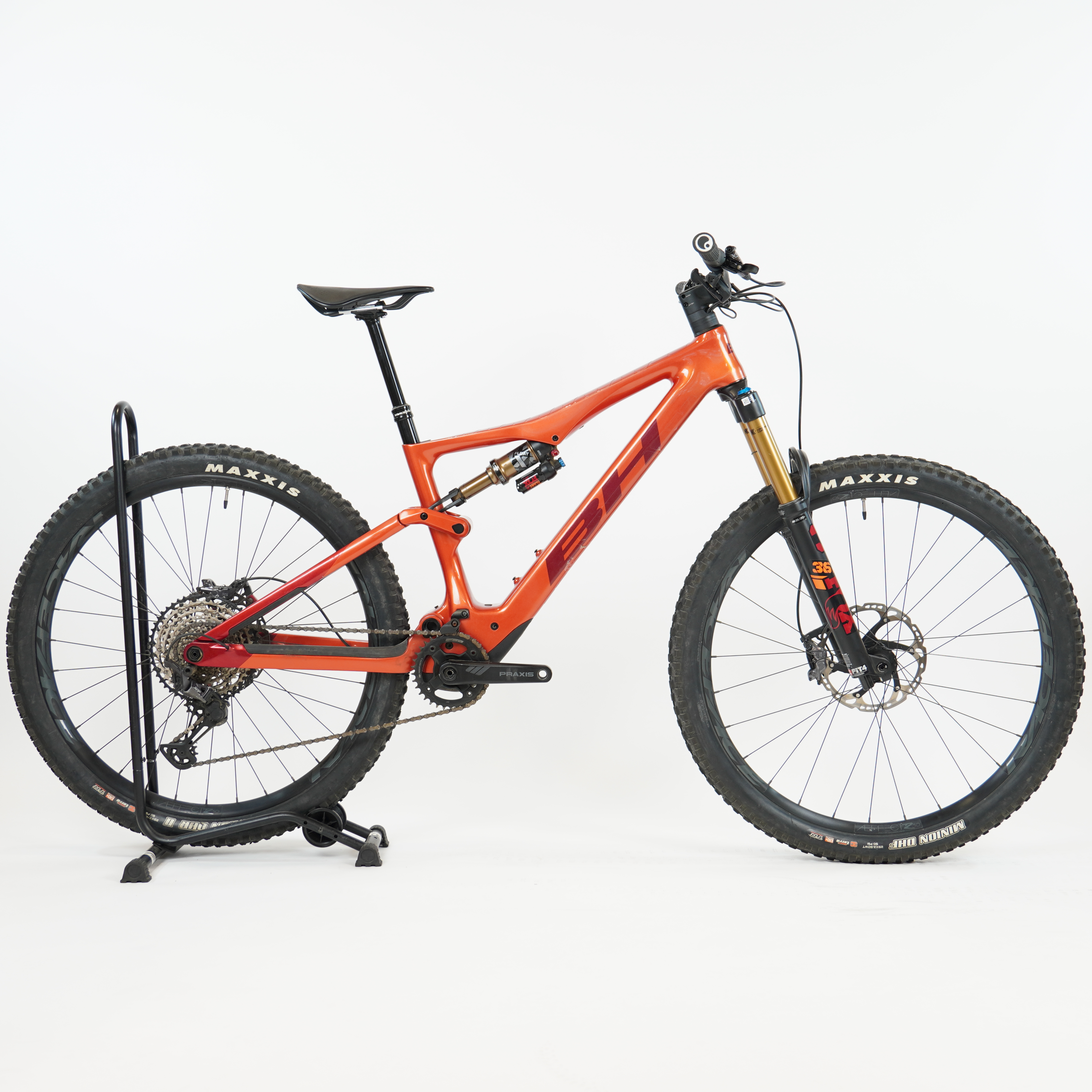

BH iLYNX Trail Carbon 8.7 Orange-Red-Red - RH-M Used bike
3.499,00 €
-54%
7.599,00 €
incl. VAT
free shipping*

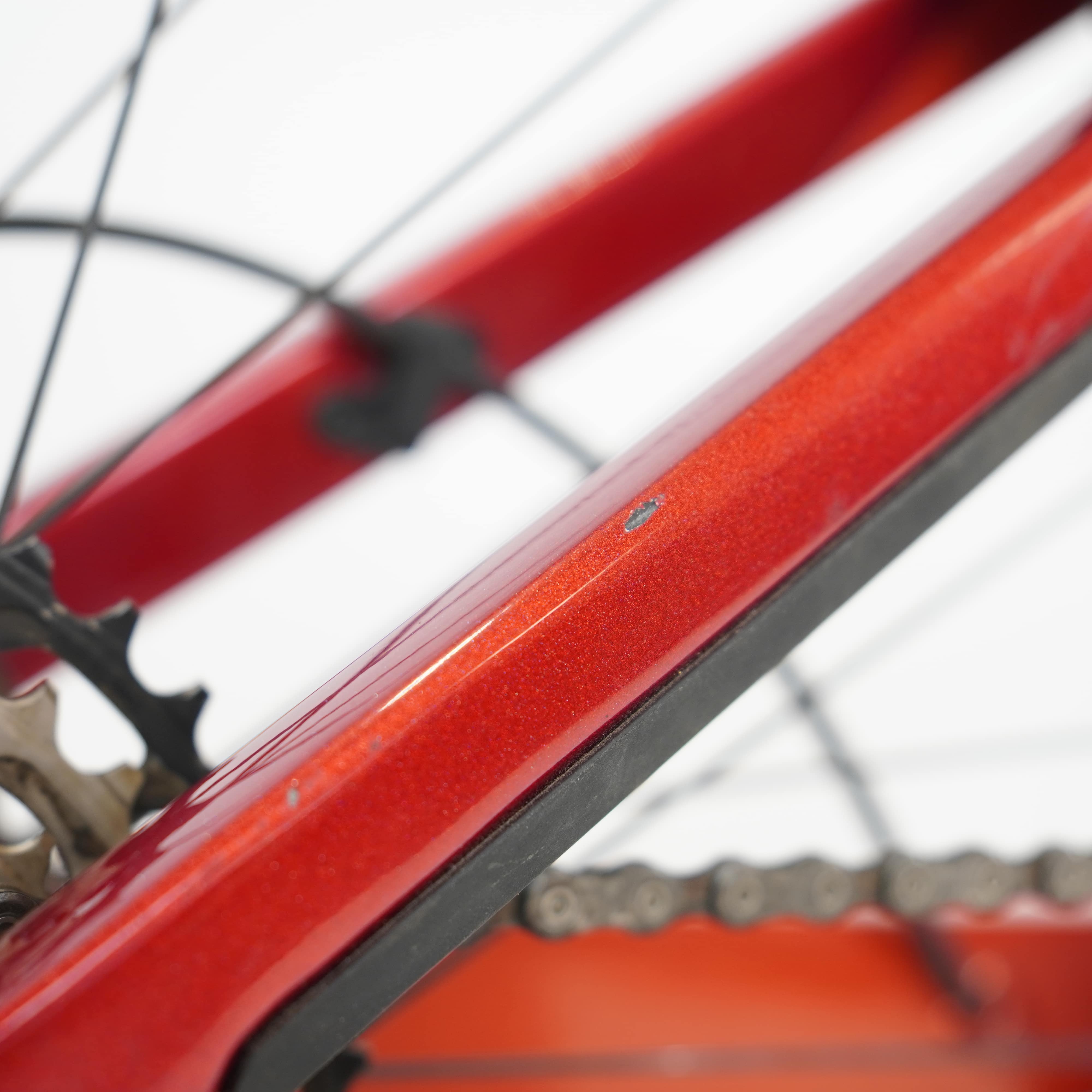

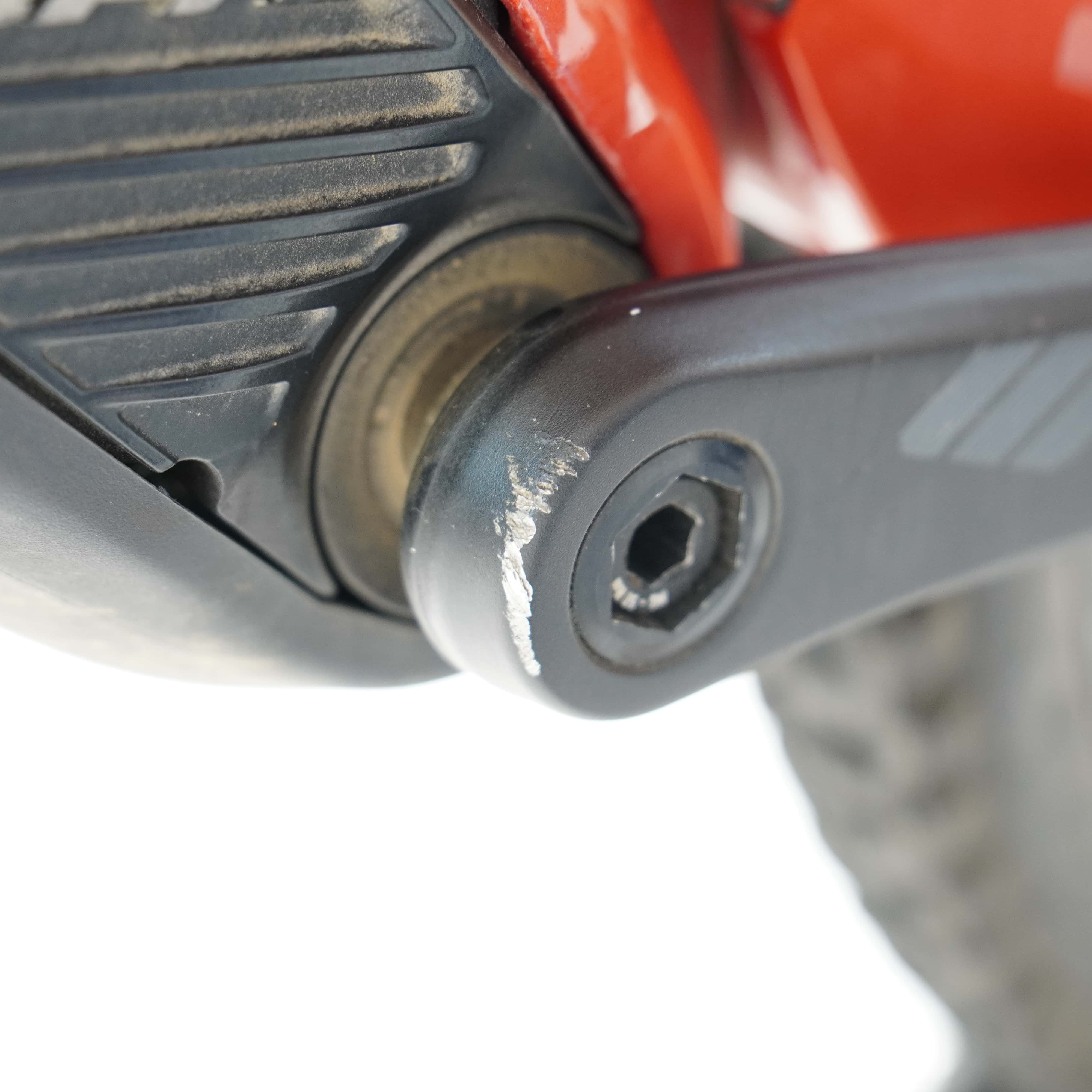

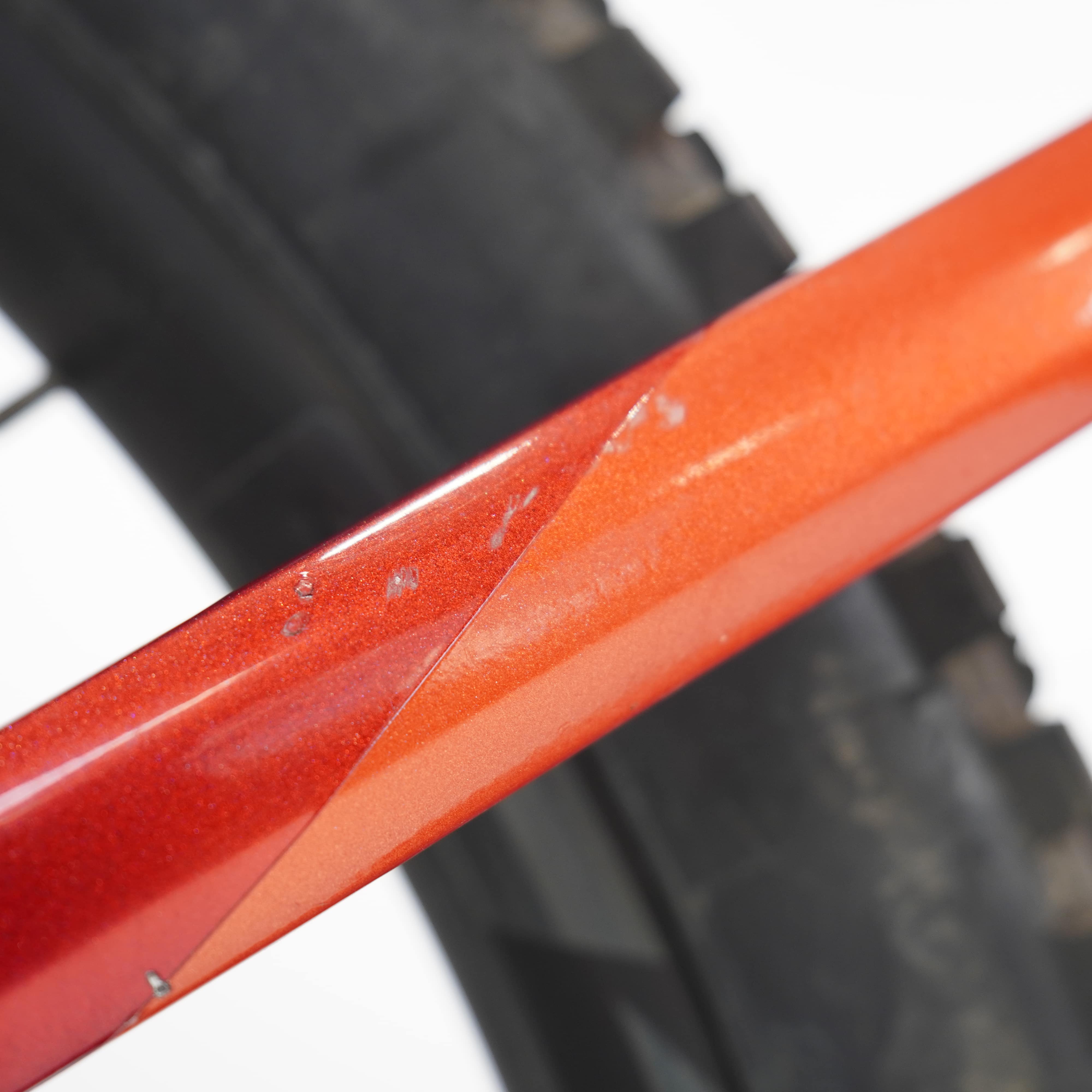

This item is a used bike!
PRODUCT SPECIFICATIONS:
- Ballistic Carbon Layup - The iLynx Trail is made of carbon using the HCIM process (Hollow Core Internal Moulding) to reduce the weight of the frame including the rocker arm to a minimum. Ballistic Carbon Lay Up" carbon fibres were used for the construction, which offer high impact resistance. This results in a frame weight of just 1975 grams.
- Torsionally stiffer shock mount - The iLynx Trail frame has maximum stiffness, as the main shock axle is large and thus optimises the stiffness of the front and rear frame triangle. The geometry, which is similar to the conventional Lynx Trail series from BH, with a rear triangle of only 451mm, which enables dynamic riding behaviour and noticeably increases control on descents.
- XPRO - Works like a plug & ride mechanism, simple and without the need for cable connections. The XPro battery bottle cage connector is fully waterproof and designed to work either with the XPro battery or as a bottle cage for any conventional bottle.
Akku type
540 Wh - NR System, 540Wh, integriert
Motor type
BH 2EXMAG
E-Bike Components
| Motor manufacturer | BH |
| Motor type | BH 2EXMAG |
| Akku | 540 Wh |
| Akku type | NR System, 540Wh, integriert |

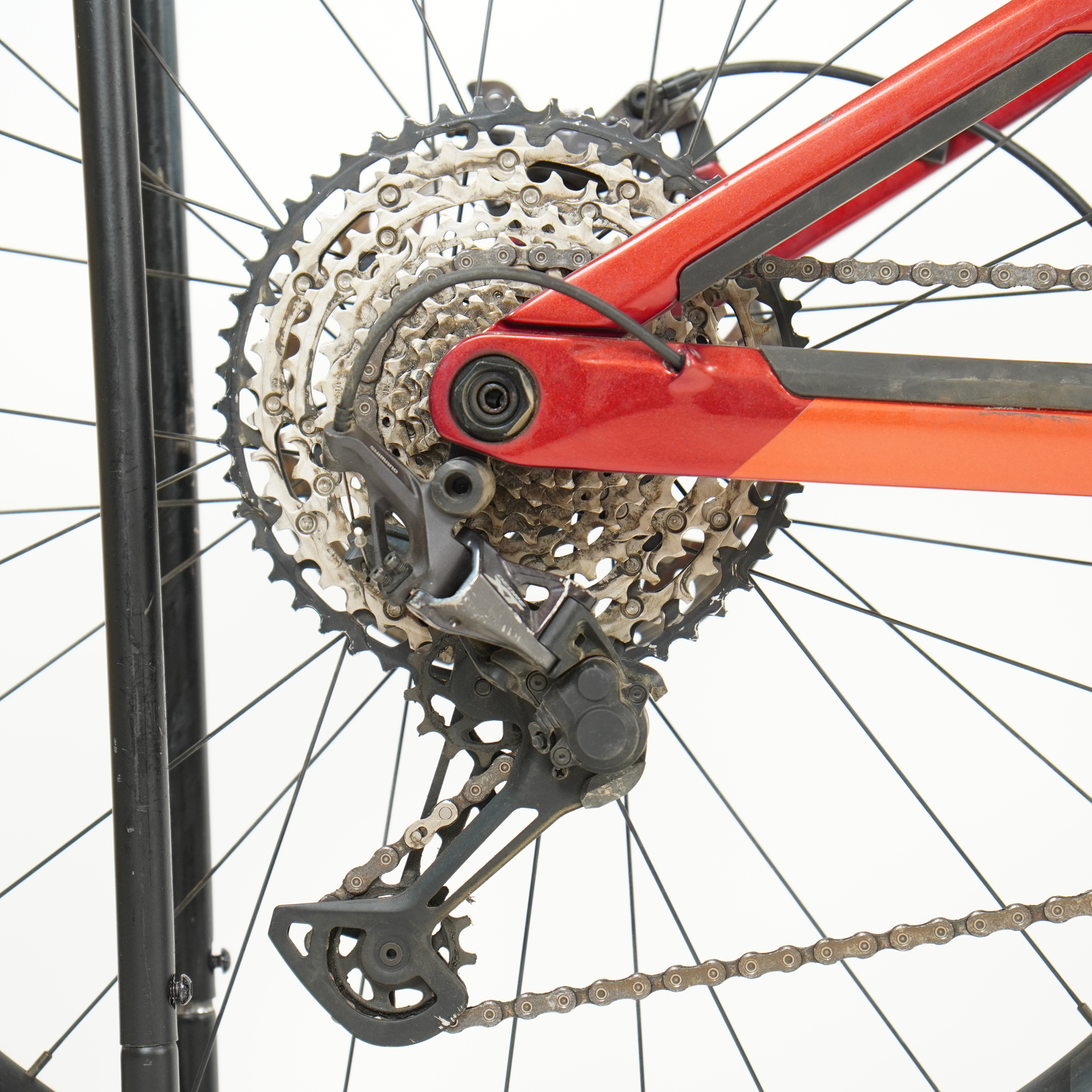

Gears
| Rear derailleur | Shimano XT 12sp |
| Cassette | Shimano CSM7100 12sp (10-51T) |
| Shifter | Shimano SLX |
Brakes
| Brake system | Shimano XT 4 Piston 203mm |
| Brake levers | Shimano XT |

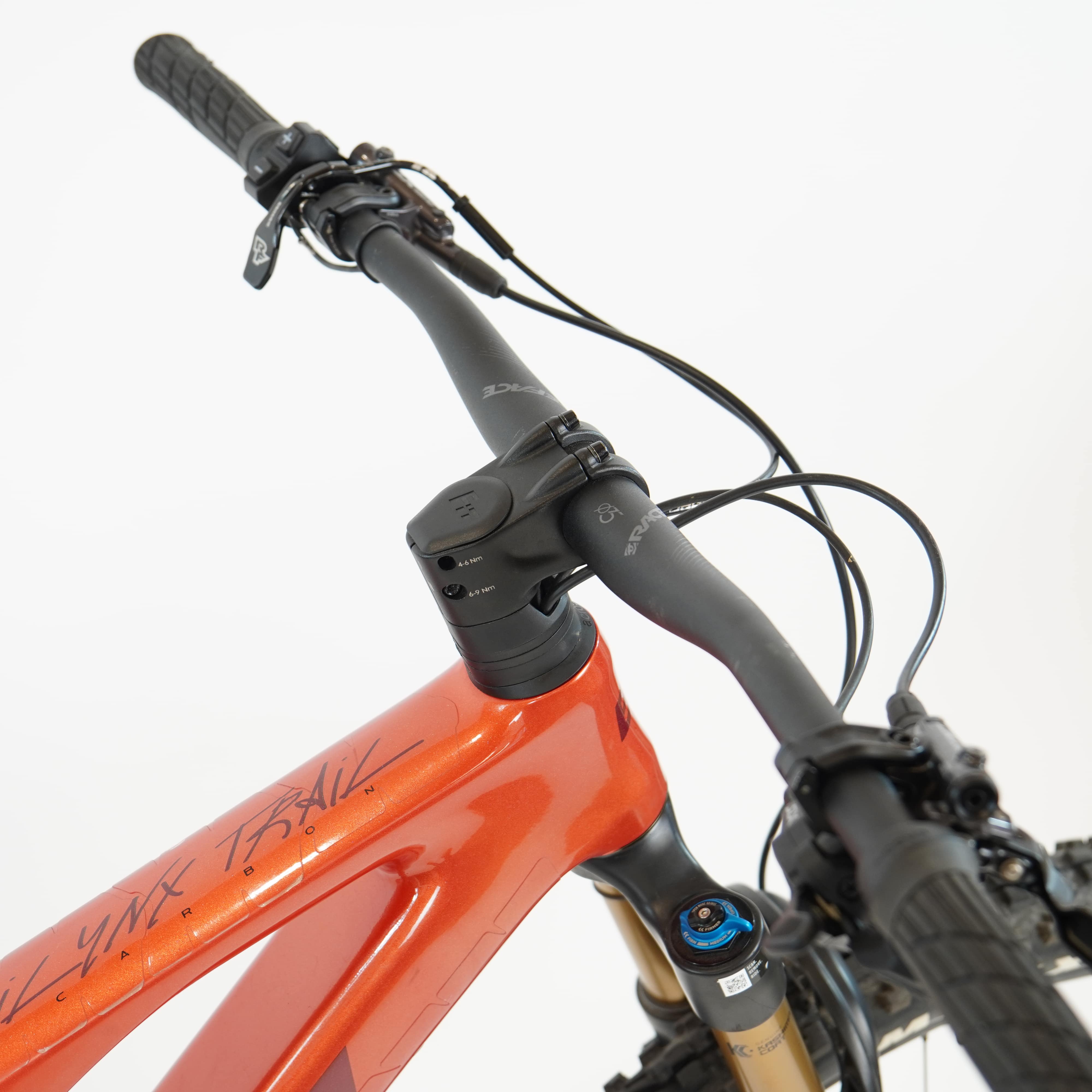

Cockpit & Seating
| Stem | BH Evo 35 Fit |
| Headset | Acros AIF-543 ICR BL. |
| Handlebar | Race Face Aeffect Riser 35 780mm |
| Handles | Ergon GE10 |
| Seatpost | Race Face DP Aeffect 31,6 |
| Saddle clamp | Alloy |

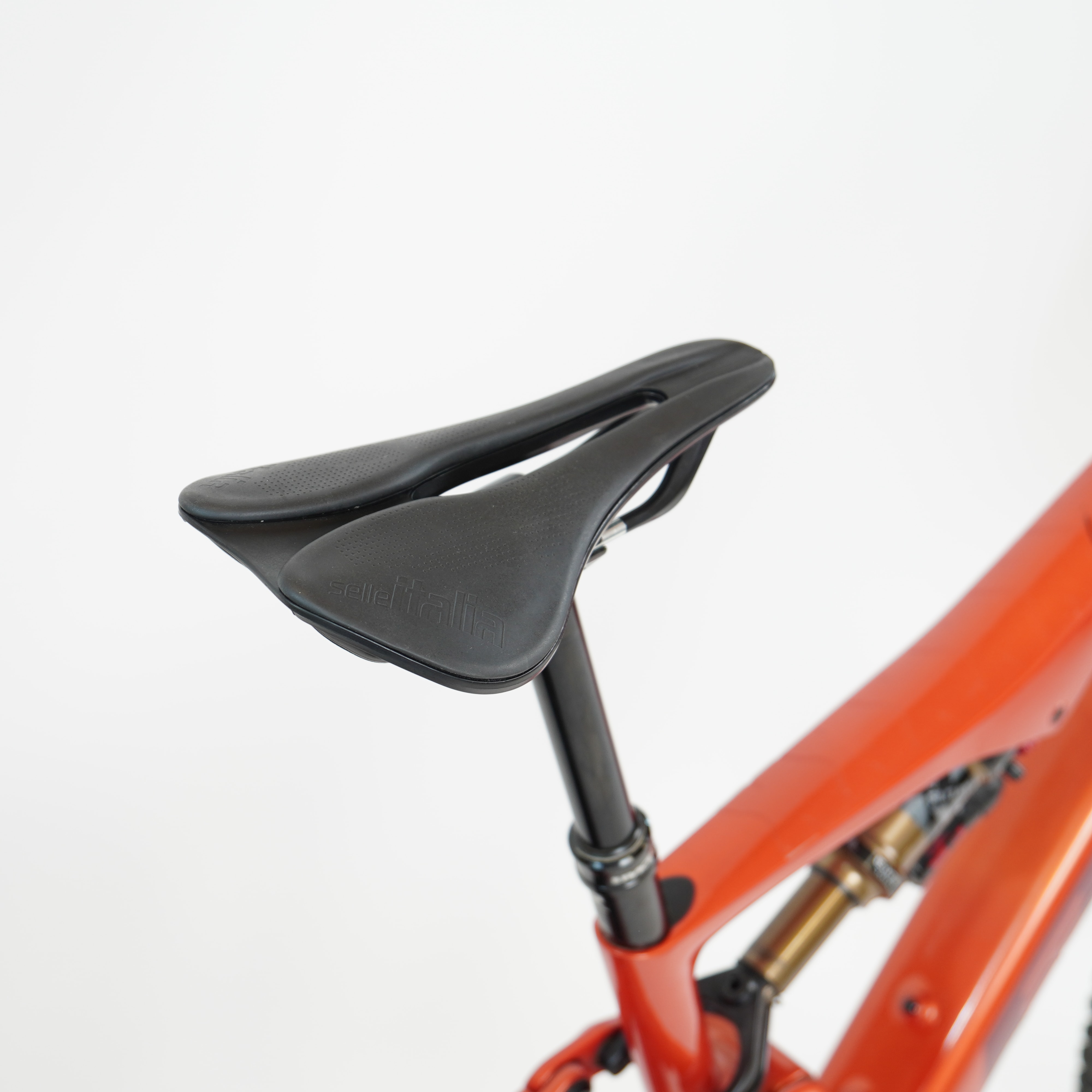

| Saddle | Prologo Proxim W450 Stn |
Frame
| Frame | 150mm Full Susp. Carbon29" Internal Cable Routing, Acros ICR |
| Frame-Material | Carbon |
| Frame size | 41 |
| Wheel-Size | 29" |
| Fork | FOX 36 FLOAT Factory 150mm 15QR |
| Frametype | Diamant |
Suspension
| Front travel | 150mm |
| Rear shock absorber | FOX FLOAT X Factory |

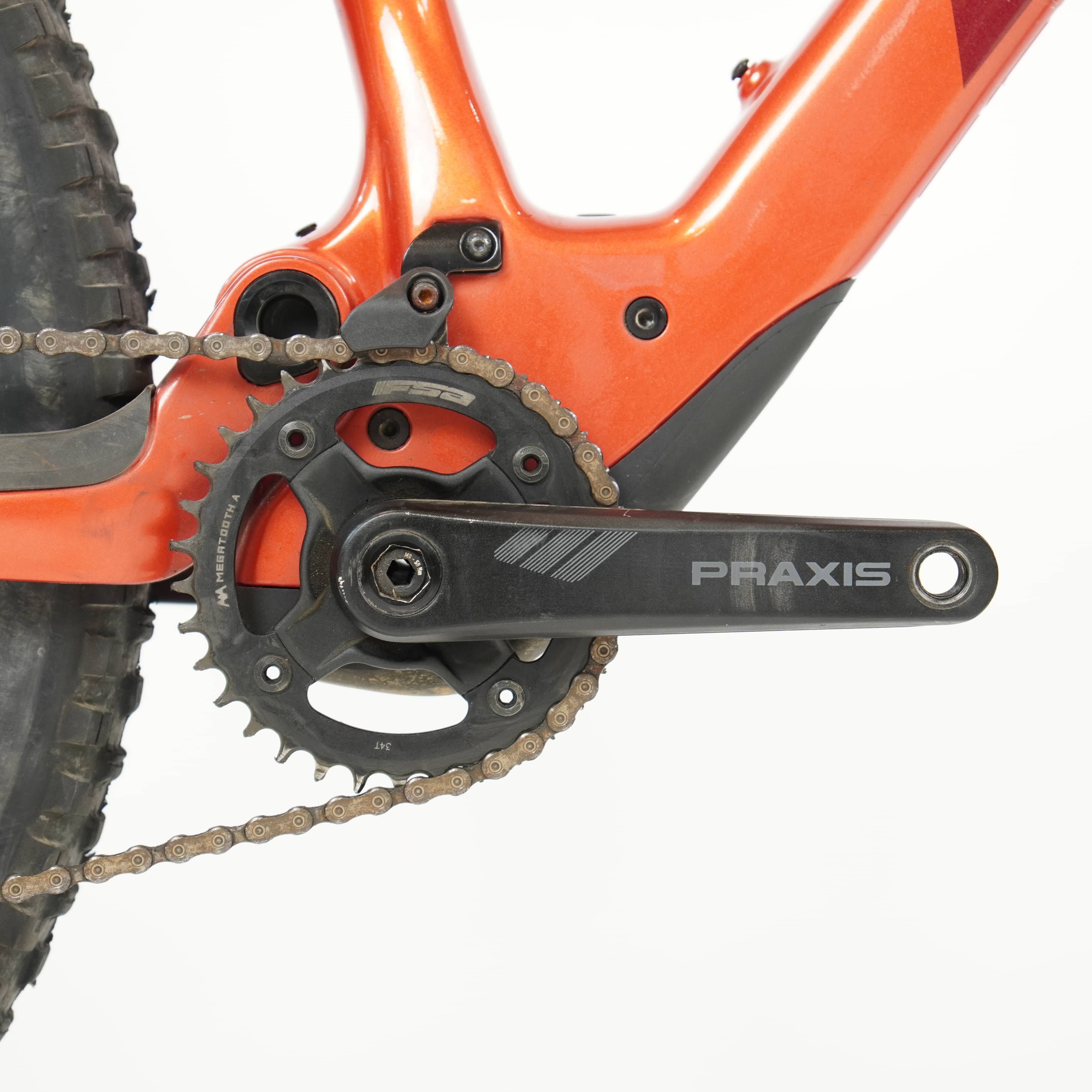

Drive Unit
| Crank | FSA 34T SB-165mm |
| Chain | Shimano CNM6100 |
| Set of tires | Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4 |
| Spokes | Stainless Steel |
| Wheelset | Race Face Aeffect 30 TR |
Other
| Model year | 2023 |
| Color | Orange/Rot |
| Permissible total weight | 165,00 |
| EBikeKategorie | E-Mountainbikes |
